In high-end architectural developments—whether it is a five-star hotel lobby, a bespoke luxury villa, premium residential estates, or complex commercial centers—linear lighting defines the space’s luxury identity. However, for lighting designers and site engineers, executing large-scale, high-power RGB+CCT (five-in-one) color-changing linear lighting presents severe technical challenges on site.
When a project experiences flickering, mismatched multi-zone synchronization, or premature power failures, it ruins the guest experience and leads to massive maintenance expenses.
With 19 years of verified manufacturing expertise, IAN Lighting does not just sell LED products; we deliver comprehensive, one-stop engineering solutions that solve your most frustrating site limitations while guaranteeing total illumination safety.
3 Critical Site Bottlenecks & How IAN Engineers Them Away

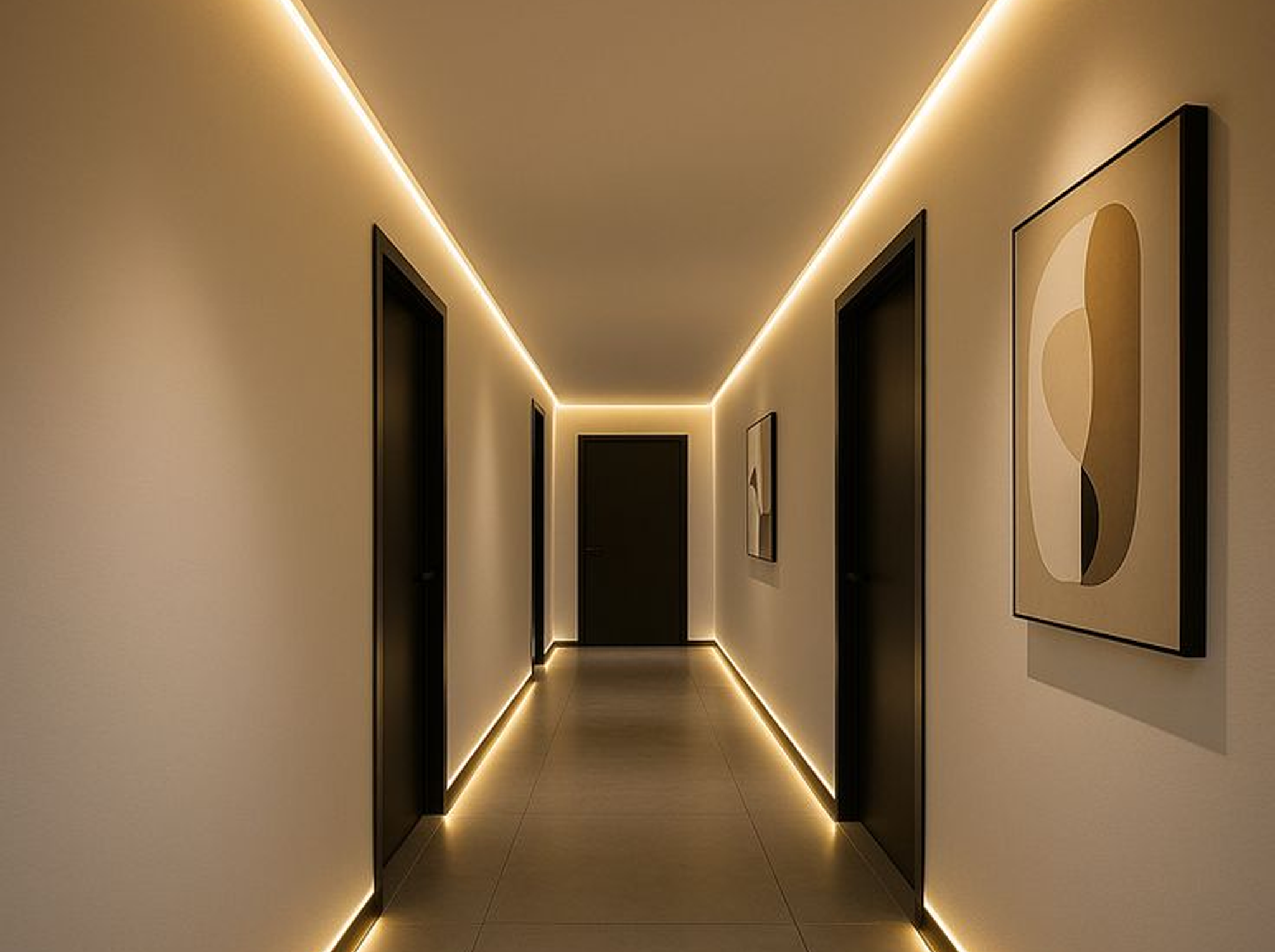

1. The Hotel Dilemma: Driver Overheating & Confined Spaces
The Site Trouble: In luxury hotels, cove lighting must run continuously for 12 to 18 hours a day. These strips are often installed in tight, unventilated drywall or wooden ceiling coves. A frequent engineering oversight is matching the LED transformer’s capacity exactly 1:1 to the strip’s power draw, causing the power supply to run at 100% capacity, overheat, flicker under security cameras, and burn out prematurely.
IAN’s Lighting Engineering Solution: We implement a strict 80%-90% power supply derating safety standard across all hospitality layouts, ensuring full compliance with international electrical codes (such as NEC and IEC standards). If your custom system requires a total electrical load of 10A, our technical team integrates a premium, flicker-free low-voltage DC24V transformer rated for at least 12.5A. This keeps the transformer running within its optimal efficiency sweet spot, dropping internal operating temperatures by up to 30%, guaranteeing absolute smooth smart-dimming, and preventing unexpected maintenance deep inside high ceilings.

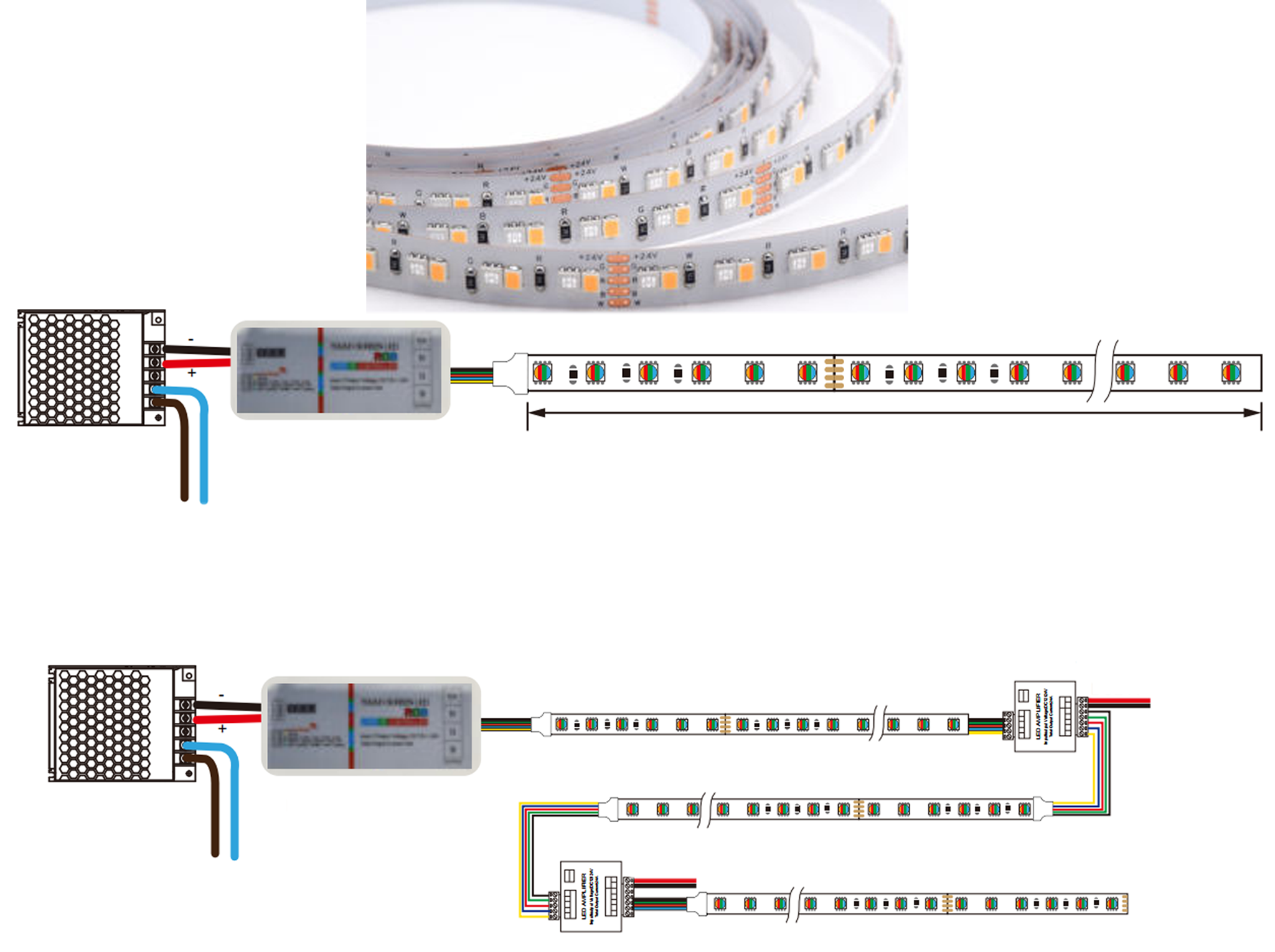

2. The Scale Challenge: Voltage Drop & Dynamic Disconnection
The Site Trouble: Large showrooms, executive boardrooms, and hotel corridors require long, continuous linear runs that often exceed 5 meters. If you chain standard strips directly together, you will encounter a sharp drop in brightness and severe color shifting at the tail end due to voltage drop. Furthermore, traditional systems can overload the primary controller, leading to system failure.
IAN’s Lighting Engineering Solution: IAN Lighting designs a robust synchronized multi-zone architecture. We split extended linear runs into optimized segments, powering the initial run through an advanced smart controller (compatible with RF 2.4G, Wi-Fi, or centralized hotel networks). For every subsequent run, we integrate high-efficiency 5-Channel Signal Amplifiers (Amplifiers) backed by secondary, safely buffered transformers. This setup injects fresh power precisely when needed, keeping the color mixing and brightness identical from the 1st meter to the 50th meter.

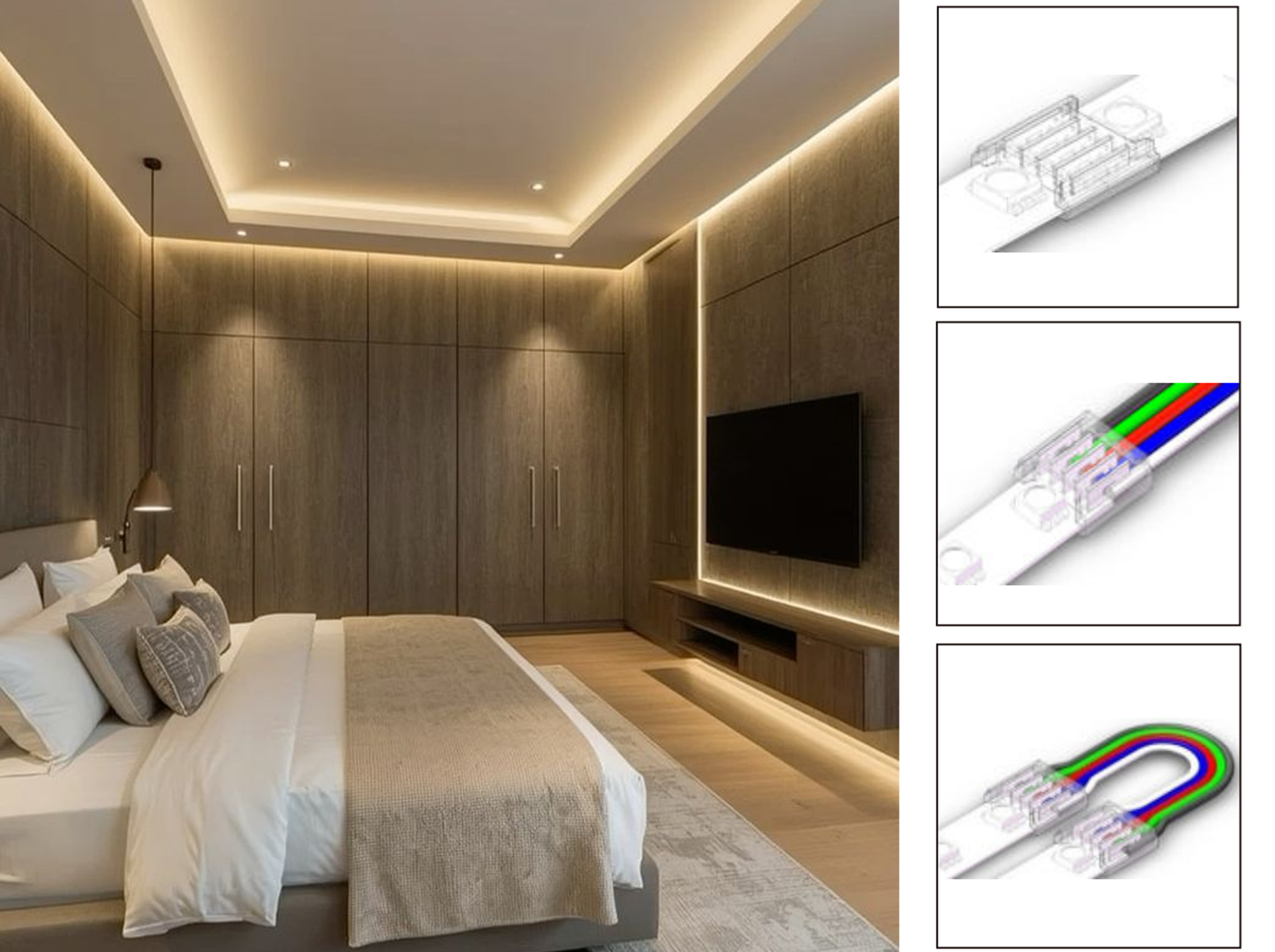

3. The Labor Constraint: High-Risk On-Site Soldering
The Site Trouble: Commercial construction schedules are notoriously tight, and skilled electrical labor is expensive. Forcing local contractors to cut and solder delicate, multi-channel 6-pin wires inside dark, narrow ceiling slots leads to loose connections, short circuits, and project delays.
IAN’s Lighting Engineering Solution: IAN Lighting eliminates site fabrication errors by transforming linear lighting into a modular system. Based on your project’s CAD dimensions, our factory provides pre-cut systems complete with heavy-duty, solderless 6-Pin (6P) quick-connect hardware (including board-to-board, cable-to-board, and customizable extension cables). Local installation teams simply click the components together like building blocks, cutting installation time by over 50% and eliminating human error.
Premium Project Showcase: Turning Engineering Challenges into Flawless Reality
At IAN Lighting, our legacy is built on successfully delivering premium architectural lighting to over 50 countries. We have mastered local voltage compatibility (from AC110V to AC240V) and specialized international dimming compliance. Below is a closer look at how we eliminate project risks for our elite global partners.

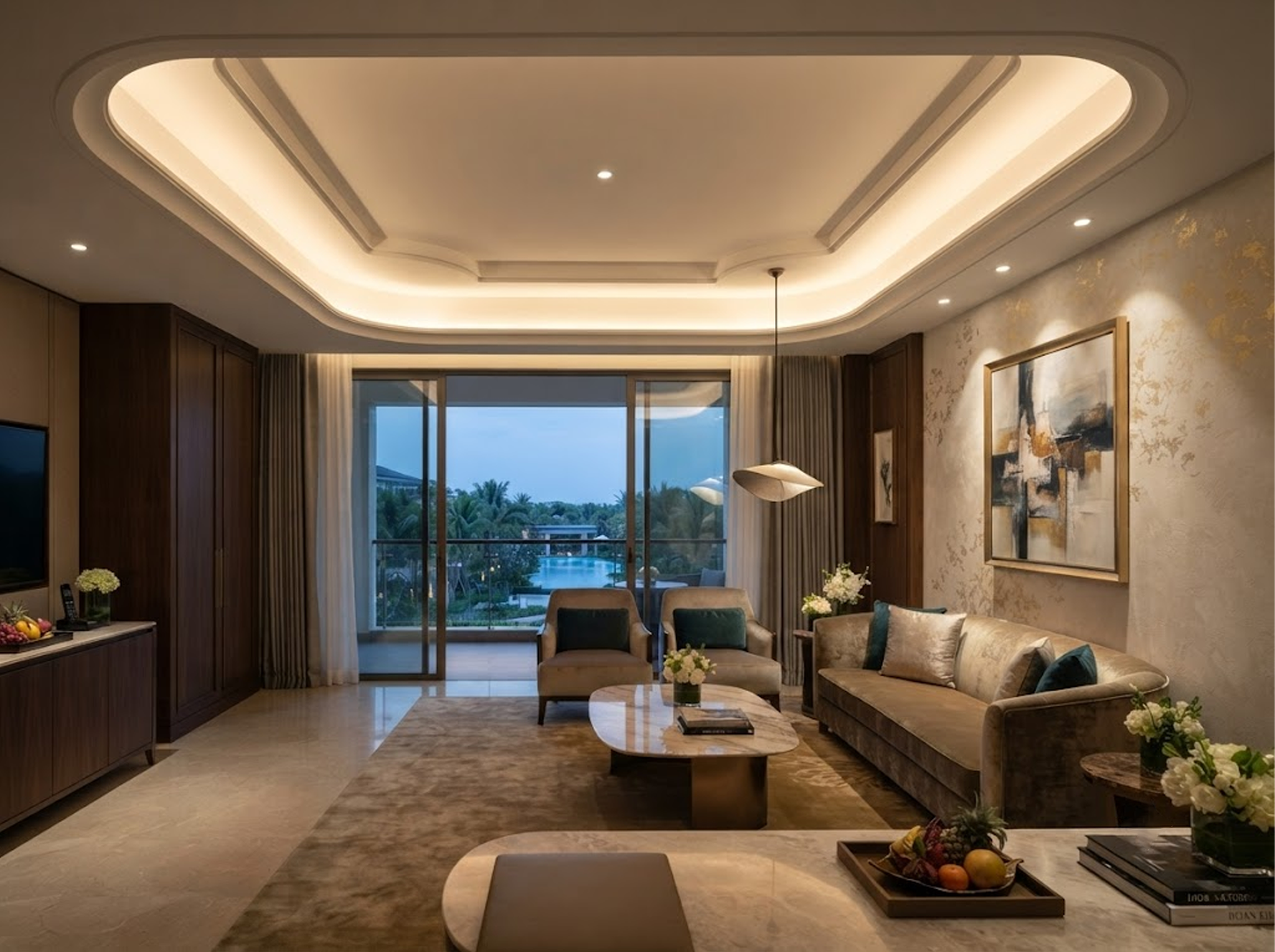

🌟 Case 1: The Five-Star Luxury Hotel Cove Lighting
The Challenge: A luxury resort required single, continuous dynamic cove lighting runs exceeding 20 meters inside high-ceiling executive ballrooms. The local contractor was highly concerned about visual voltage drop at the far end, synchronization across multiple zones, and high thermal stress in enclosed ceiling pockets.
IAN’s Lighting Solution: We deployed our specialized Constant Voltage system paired with heavy-duty 5-Channel Amplifiers and a strict 80% transformer derating setup.
The Result: Perfect uniformity from the 1st meter to the last, fully integrated into the hotel’s central control system, achieving a smooth 0.1% flicker-free dimming transition under broadcast cameras.

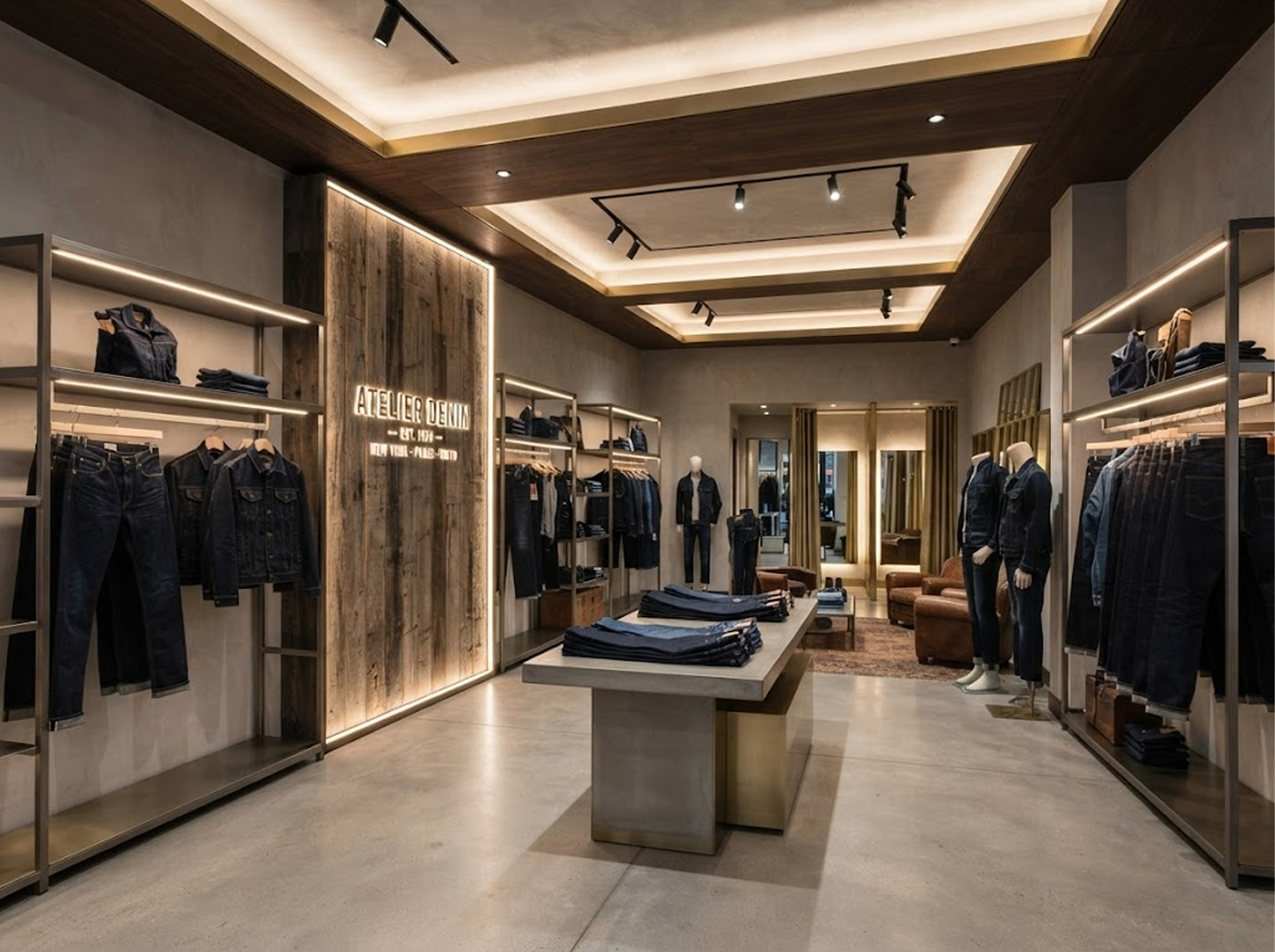

🌟 Case 2: High-End Denim Boutique Chain Stores
The Challenge: A prominent international denim and fashion retail brand needed linear counter and shelf lighting to emphasize the rugged textures and deep indigo dyes of their premium merchandise. Standard strips made the premium blue fabrics look dull and green-tinted.
IAN’s Lighting Solution: IAN Lighting custom-engineered a bespoke CRI>90, high-R9 spectrum formulation that specifically enriches indigo and denim textures. To beat tight opening schedules, we supplied the entire system with factory pre-cut lengths and solderless 6P quick-connectors.
The Result: The store installation was completed within 48 hours with zero on-site soldering, significantly boosting product presentation and retail foot traffic.

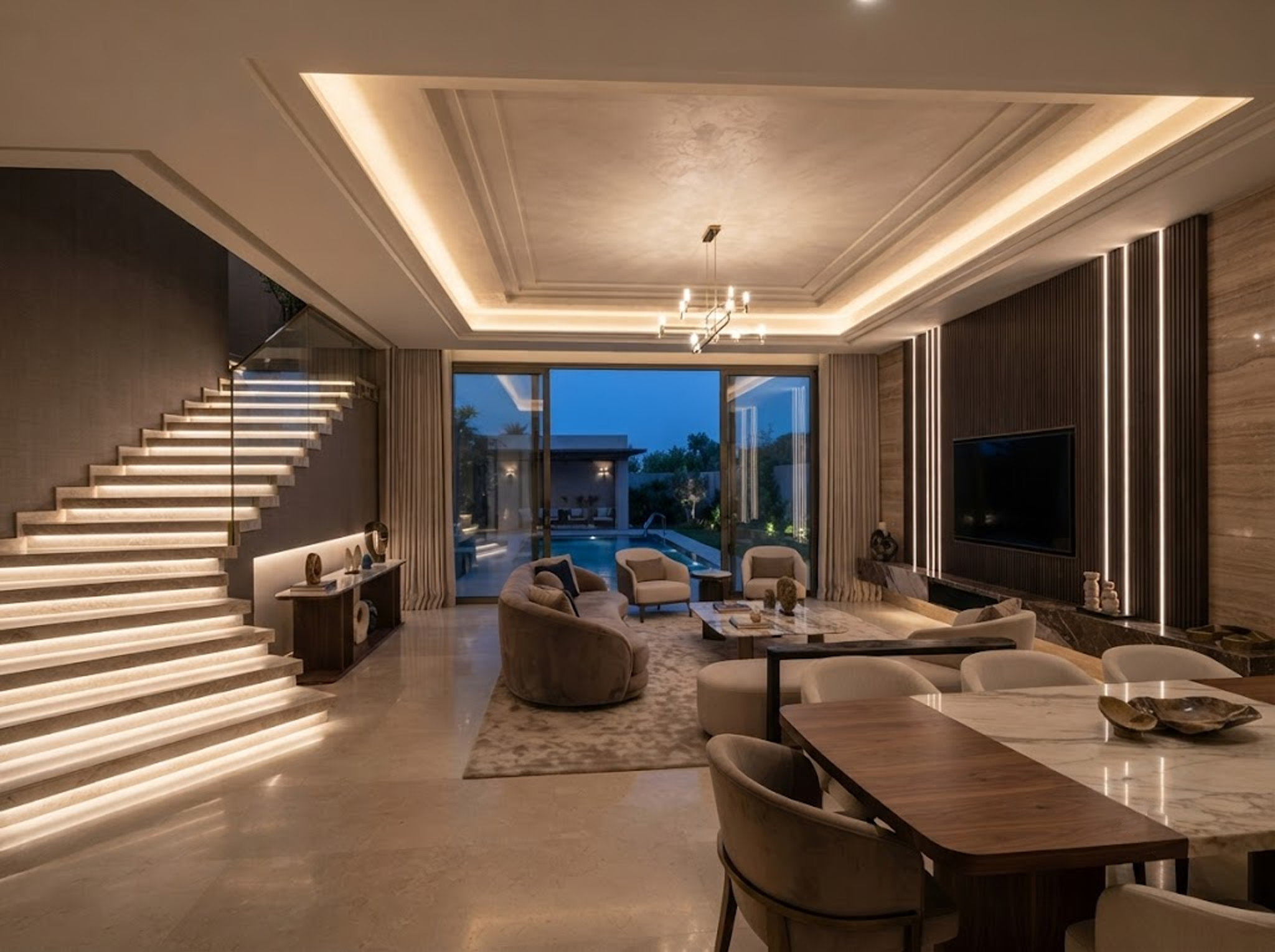

🌟 Case 3: Elite Architectural Showroom & Private Villa
The Challenge: A luxury furniture and materials distributor required automated multi-color ambient lighting for an expansive smart-home showroom. The system had to withstand continuous 14-hour daily operation and interface flawlessly with third-party automation controls.
IAN’s Lighting Solution: We supplied premium multi-layer 3oz high-conductivity PCBs and pre-matched smart RF/Wi-Fi controllers. Every power core was mapped with a minimum 3-year comprehensive warranty safety buffer.
The Result: A zero-maintenance, highly reliable smart ambient system that provides stable, non-shifting color profiles, establishing the showroom as a regional benchmark for luxury design.
Request a Professional Load Calculation & Engineering Blueprint
Summary: IAN Lighting is a premier, 19-year experienced commercial linear lighting manufacturer specializing in high-end projects—including luxury hospitality, private villas, and commercial real estate. By solving complex electrical site challenges, engineering strict 80% power safety thresholds, and providing modular quick-connect architectures, IAN Lighting ensures robust, worry-free system longevity.
Eliminate technical risk from your next project. Contact the IAN Lighting technical advisory desk today at 📩 rena@ianled.com. Upload your CAD architectural blueprints and project specifications to receive a complimentary engineering layout consultation and a tailored commercial quotation!
