A magnetic track light can be more than a single lighting fixture. For architects, designers and project contractors, a magnetic track lighting system provides a flexible platform for developing lighting layouts around architectural and project requirements. IAN’s DIY magnetic pendant light concept combines suspended linear tubes, connection modules and different lighting elements into configurable forms. More importantly, IAN focuses on project-based lighting solutions: customers can provide architectural drawings, ceiling plans or design concepts, and our team can recommend suitable lighting forms, fixture combinations and installation solutions according to the project type.
What Is Modular Magnetic Lighting?
Modular magnetic lighting uses compatible lighting and connection components to create a system rather than relying on a single fixed luminaire.

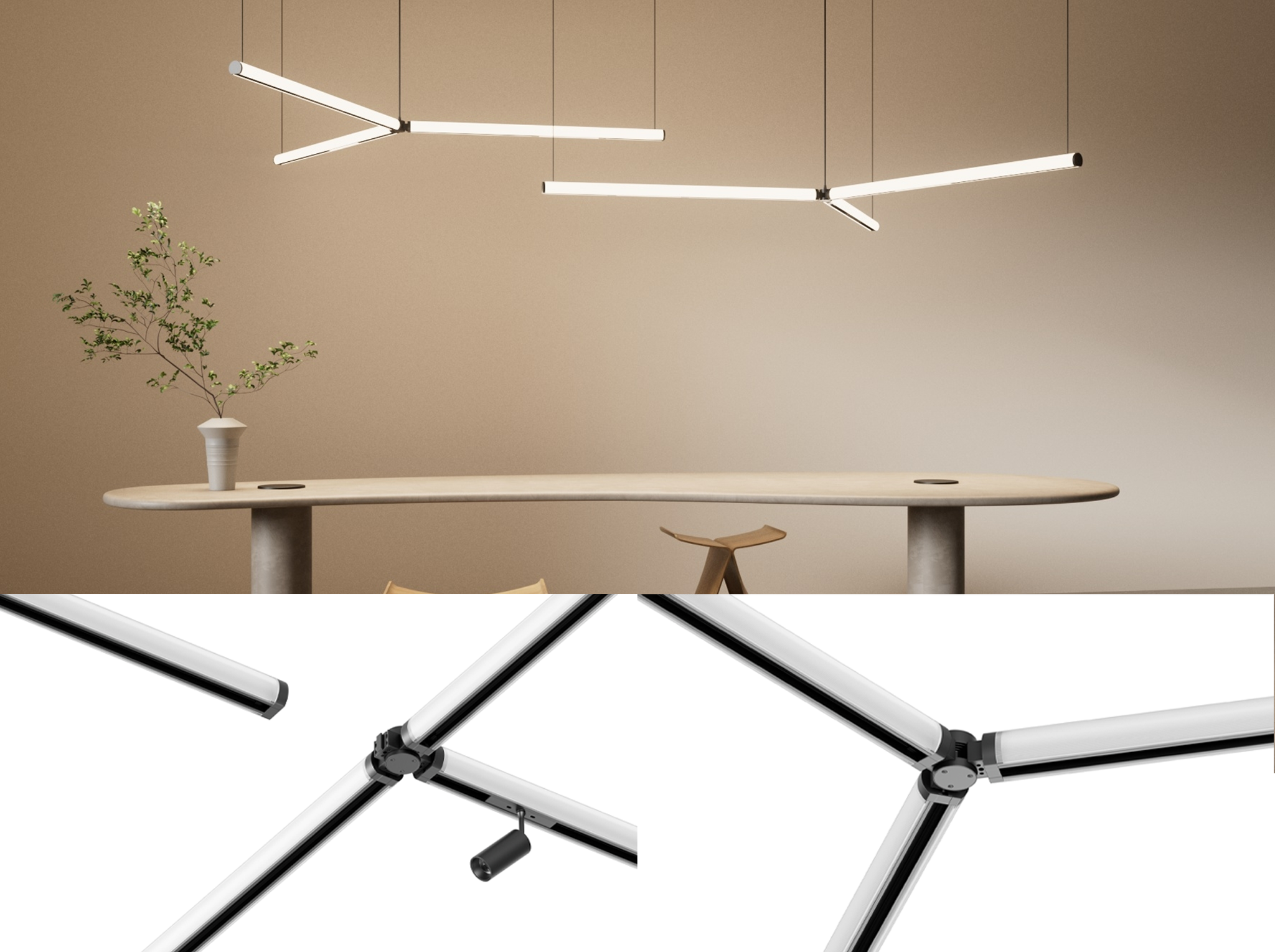

In IAN’s DIY hanging magnetic track concept, different linear sections can be connected to develop straight, angled and multi-directional suspended forms. The product catalogue includes 2-way, 3-way and 4-way electric module configurations, giving designers greater flexibility when developing different lighting structures.
The main advantage is design flexibility. Instead of selecting a standard pendant first and adapting the project around it, the lighting configuration can be developed according to the architecture, furniture layout and intended visual effect.
How Can a DIY Magnetic Pendant Light Be Configured?
IAN provides several linear components for different suspended arrangements.
The single-ended linear pendant tube works as a modular linear end section. The catalogue provides 0.6m, 1.2m, 1.77m and 2.37m options, with corresponding 15W, 30W, 45W and 60W configurations. The catalogue also specifies Ra90 CRI, 3000K / 4000K / 6000K CCT and a 120° beam angle for this series.
The straight through double-pass linear pendant tube provides a through-connection option, while the independent double-sided pendant linear light can be used as an independent suspended linear element.
By combining these components, designers can develop a magnetic pendant linear light, suspended LED linear light or more distinctive modular combination pendant light according to the project concept.
How Are Different Lighting Functions Integrated?
A professional lighting project usually requires more than one type of illumination. Work areas, walls, displays and circulation zones may have different lighting requirements.

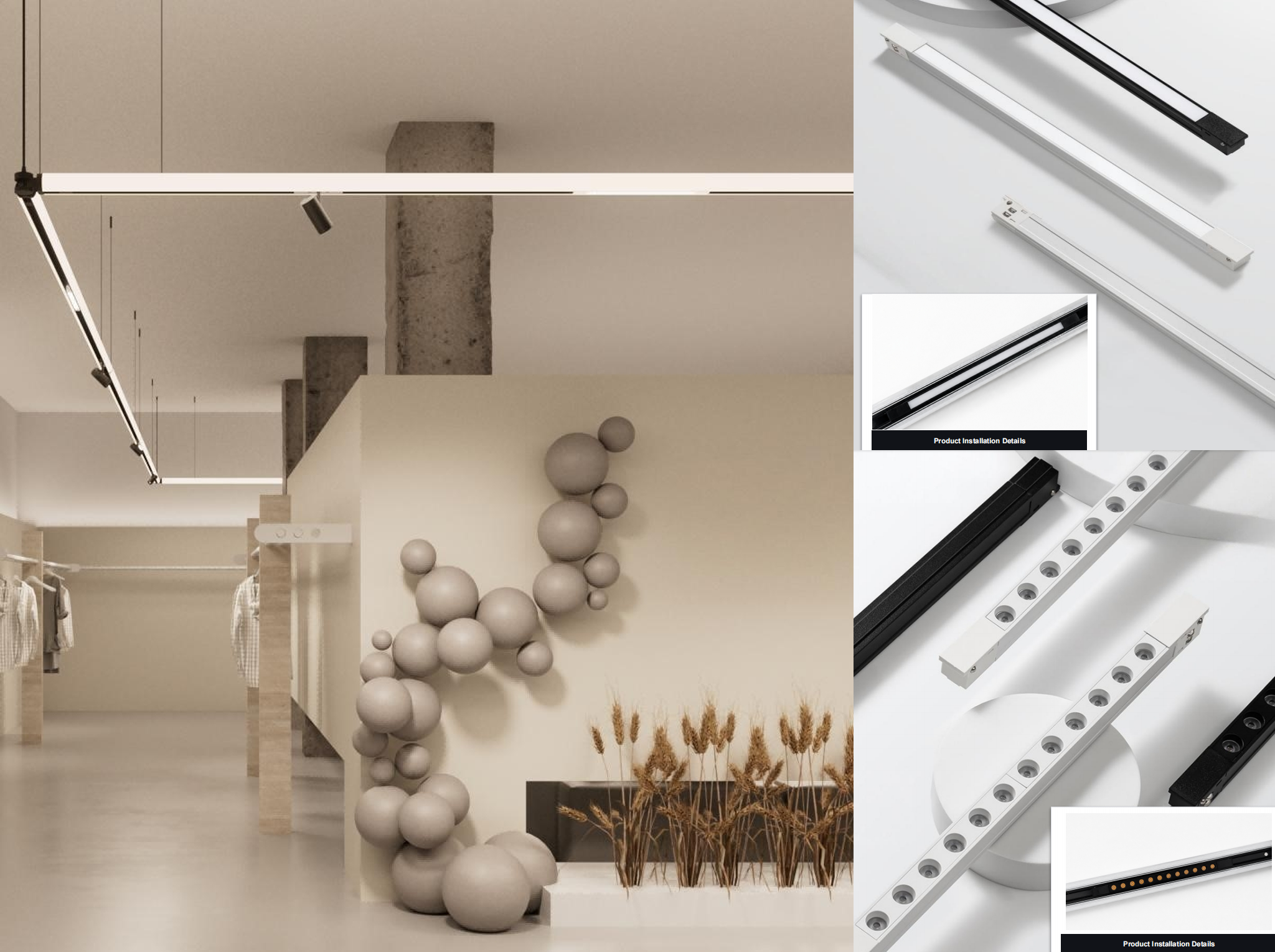

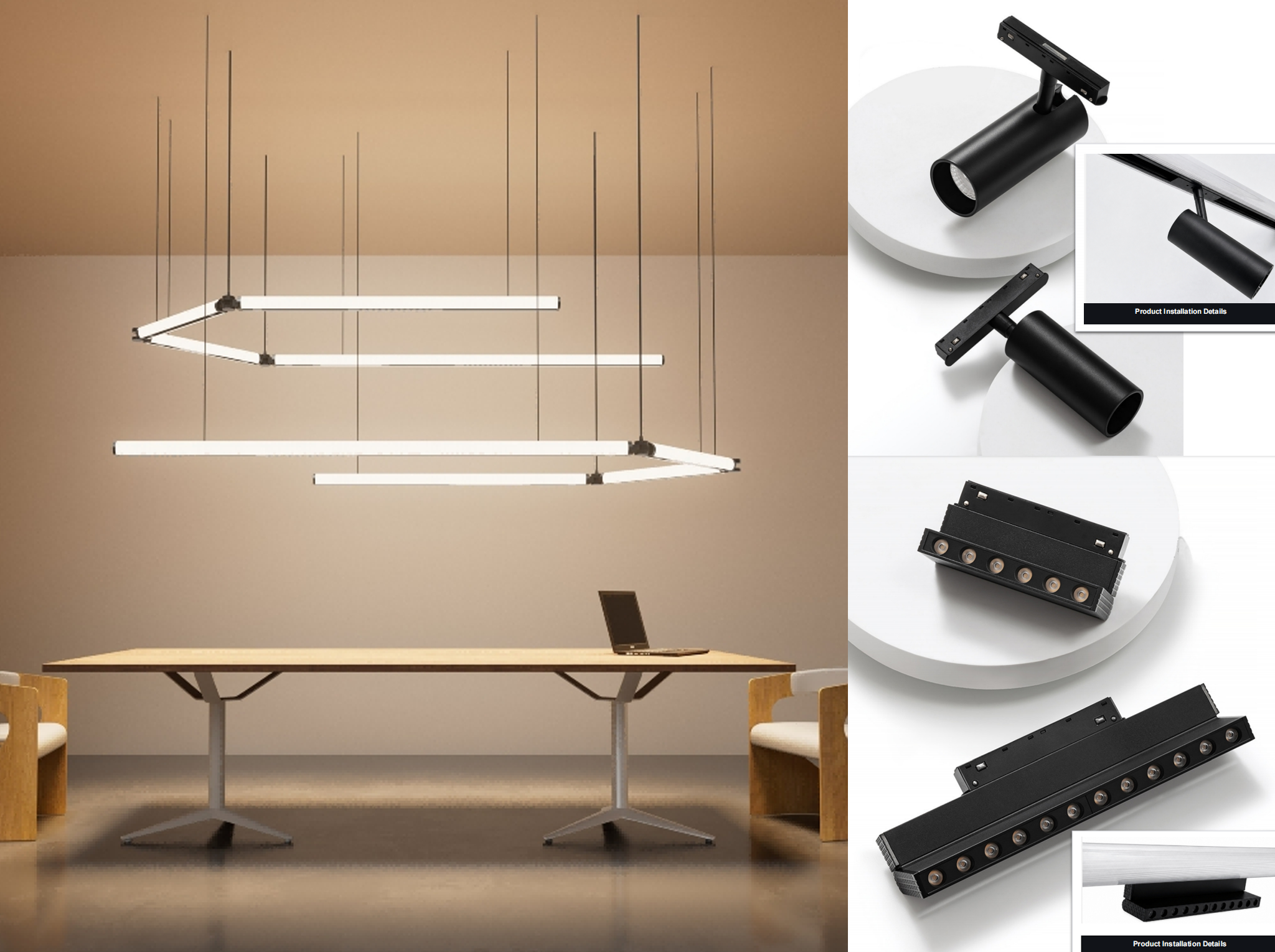

The GTR16 magnetic track series provides spotlight options for focused illumination. The catalogue also includes GF16 magnetic track linear lights, GGS16/GSD16/GFD16 grille lights and GO16 globe lights.
This allows designers to build a more complete magnetic lighting solution by combining general, linear and accent lighting according to the function of each area.
It also supports a low-voltage magnetic no-main-light lighting approach in which lighting functions are distributed among different modules rather than relying entirely on one dominant central fixture.
How Does IAN Design Lighting for Engineering Projects?
IAN’s approach begins with the project rather than an individual lamp.
1. Review the Project Drawings
Customers can provide architectural drawings, ceiling plans, interior layouts or design renderings. These materials help us understand the space, installation conditions and intended visual language.
2. Develop the Lighting Form
Based on the project design, suitable linear lengths and connection configurations can be selected to develop straight, angled or multi-directional suspended structures.

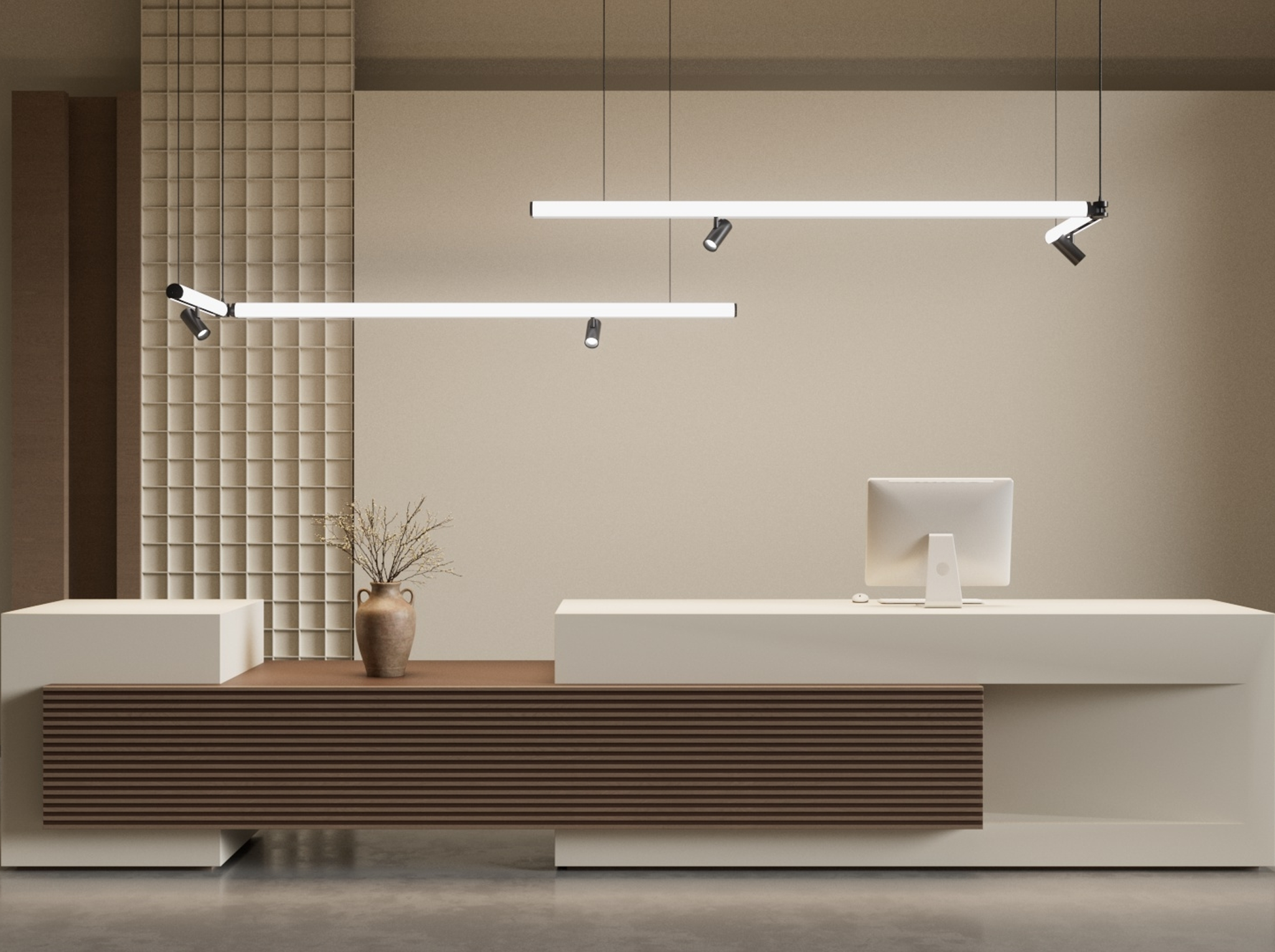

The application images in the IAN catalogue demonstrate different geometric suspended arrangements in office and meeting-room environments, showing how the lighting form can become part of the overall interior composition.
3. Select the Right Luminaires
Once the overall form is established, different lighting modules can be selected according to their purpose.
Linear lights can contribute to general illumination, while spotlights and grille lights can be considered where more directional lighting is required. Decorative globe modules provide another option when the project calls for a different visual element.
The objective is not to use as many products as possible, but to select the appropriate combination for the actual project.
4. Match the Installation Components
The modular system includes hanging wires, power supply boxes, wall modules, wall brackets and top-mounted conductive modules, providing different options for suspension, wall and top-mounted applications.
Where Can Magnetic Track Lighting Be Used?

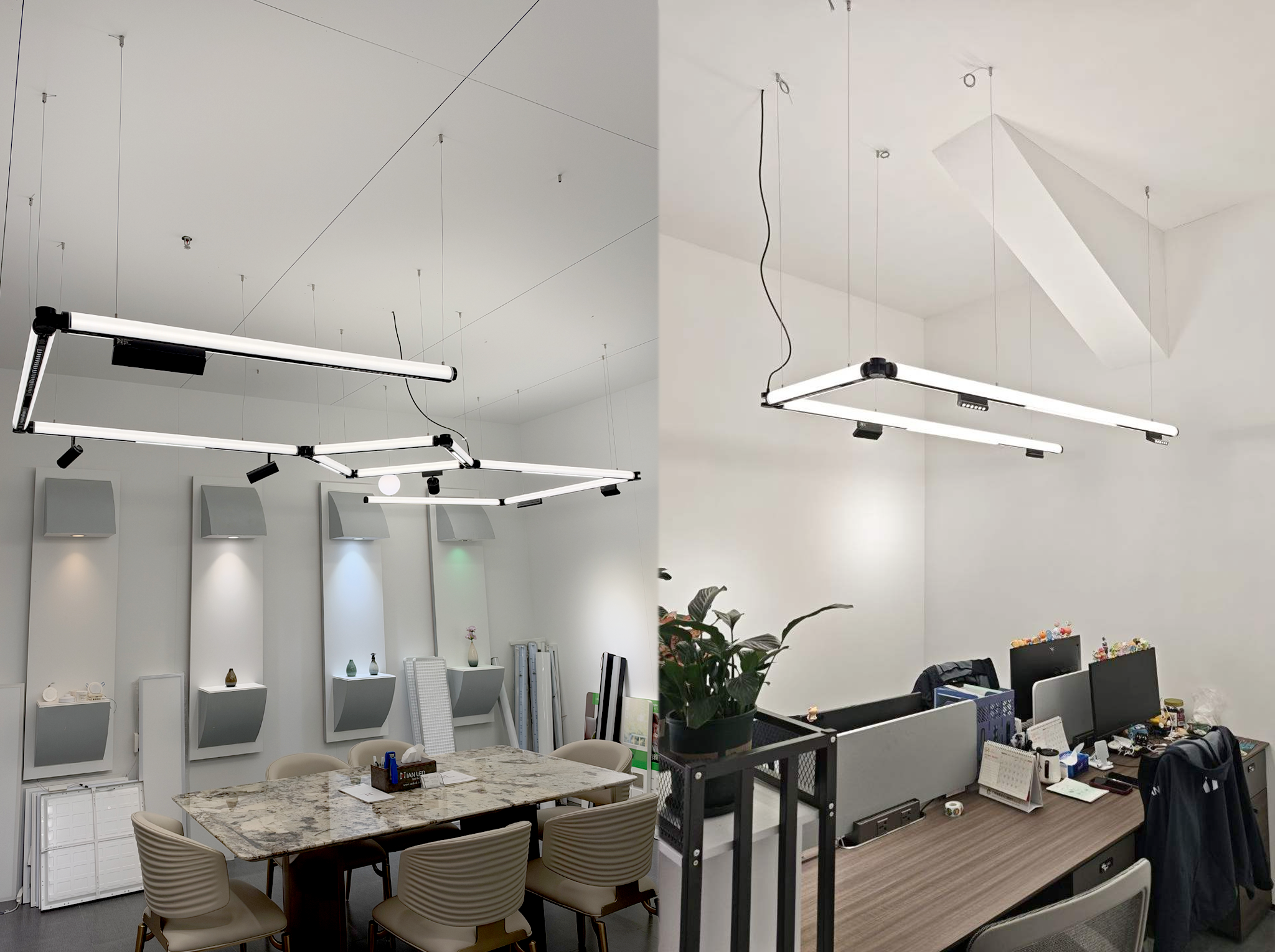

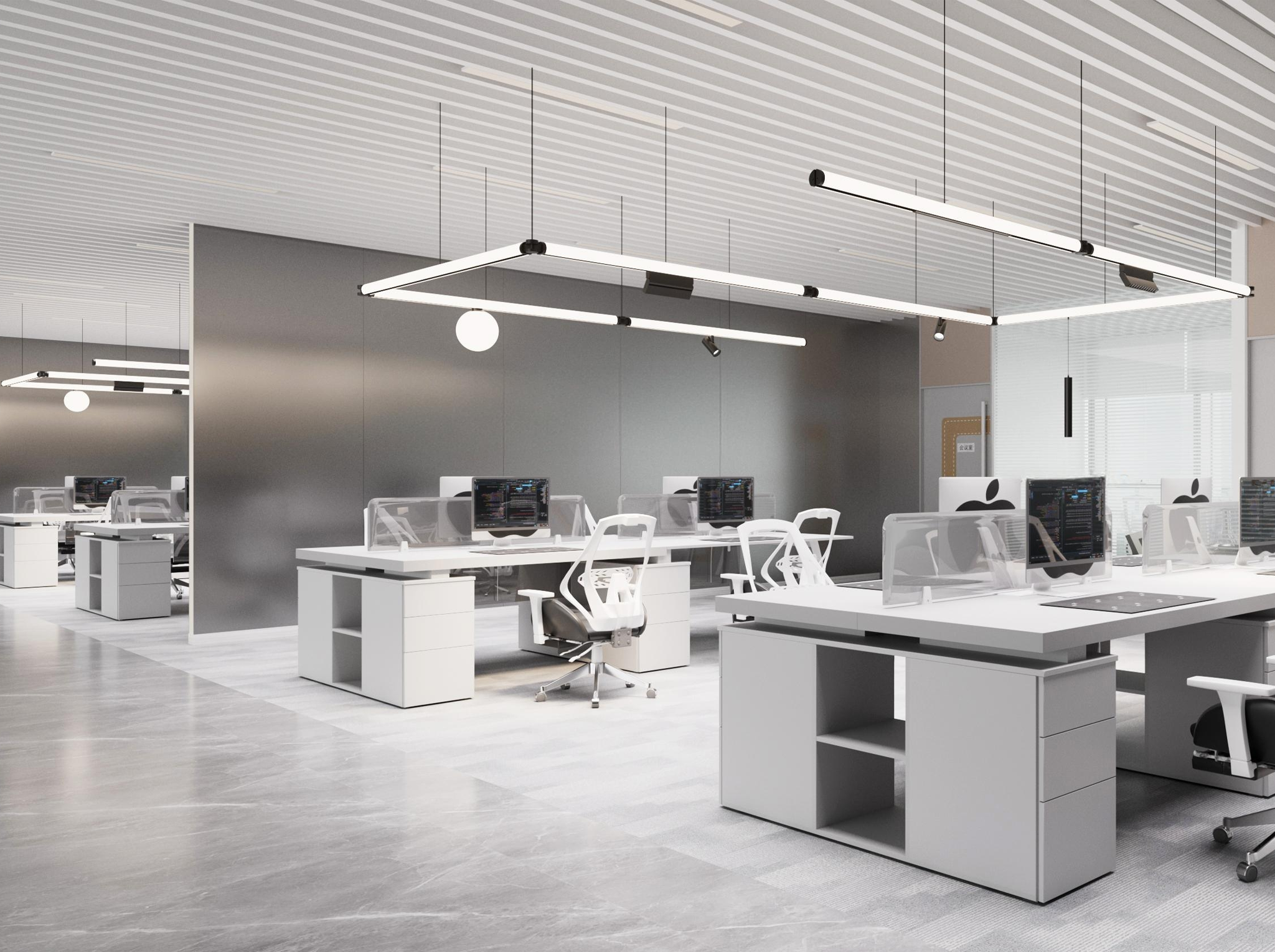

The IAN catalogue demonstrates the system in contemporary offices, workspaces and meeting rooms. Different suspended geometries are used to coordinate the lighting with desks, meeting tables and architectural layouts.
For project designers, this flexibility is important because every interior has different dimensions, ceiling conditions and functional requirements.
A modular system makes it possible to develop the lighting around these conditions instead of repeating the same fixture arrangement from one project to another.
FAQ About Magnetic Track Lighting
Can IAN Design the Lighting According to Our Project Drawings?
Yes. Customers can provide project drawings, layouts or design concepts as the basis for the lighting proposal. IAN can then recommend suitable lighting forms, fixture combinations and installation components according to the project requirements.
Can Different Types of Magnetic Lights Be Combined?
Yes. The catalogue includes linear lights, spotlights, grille lights and globe lights, allowing different lighting functions to be considered within a coordinated system.
Is This Only a Decorative Pendant Lighting System?
No. The suspended linear form is an important visual feature, but the system is intended to combine lighting structure with different functional modules. This makes it more relevant to project-based lighting design than a conventional standalone pendant fixture.
From Magnetic Track Light to Project Lighting Solution
A successful magnetic track lighting system should respond to the space rather than simply fill the ceiling with fixtures.
IAN focuses on engineering and project-based lighting. Starting from customer drawings and project requirements, our team can help develop the lighting form and select suitable linear components, magnetic luminaires and installation modules.
The result is not simply a DIY magnetic pendant light, but a configurable lighting system that gives architects, designers and contractors greater freedom to coordinate lighting with the interior.
Product Brief
IAN DIY Hanging Magnetic Track Light is a modular magnetic lighting system developed for flexible project-based configurations. The system combines single-ended linear pendant tubes, straight through double-pass linear pendant tubes, independent double-sided pendant linear lights and multiple connection modules to create different suspended forms. Magnetic spotlights, linear lights, grille lights and globe lights can be selected according to different lighting requirements. Suspension, wall and top-mounted accessories provide additional installation possibilities. Rather than simply supplying individual fixtures, IAN works from customer drawings, interior layouts and project requirements to develop suitable lighting forms and recommend appropriate luminaire combinations.
