GC2212B Series

Model No. GC2212B series
Power 12W/20W/30W/40W
MOQ Based on the Inquiry
Chips Use CREE, OSRAM, PHILIP, BRIDGELUX, EVERCORE. Good life, Good Lumens, Good Light Output, High CRI
Drivers Drivers with Our IAN Driver or EAGLERISE, LIFUD, OSRAM, PHILIP, with Long Life Span, No Flickering
Body Casing with High and Heavy Aluminum Body for Good Heatsink to Get Long Life Span, Body with Good Finishing
System Can Work for DALI, 0-10V, TRIAC DIMING SYSTEM as well as SMART SYSTEM, According to Your Projects
Certificates CE, ROSHS, BIS, UL, SAA
Customization Able to Do Customize Items for Indoor or Outdoor Down Light
Warranty 5 Years Product Warranty

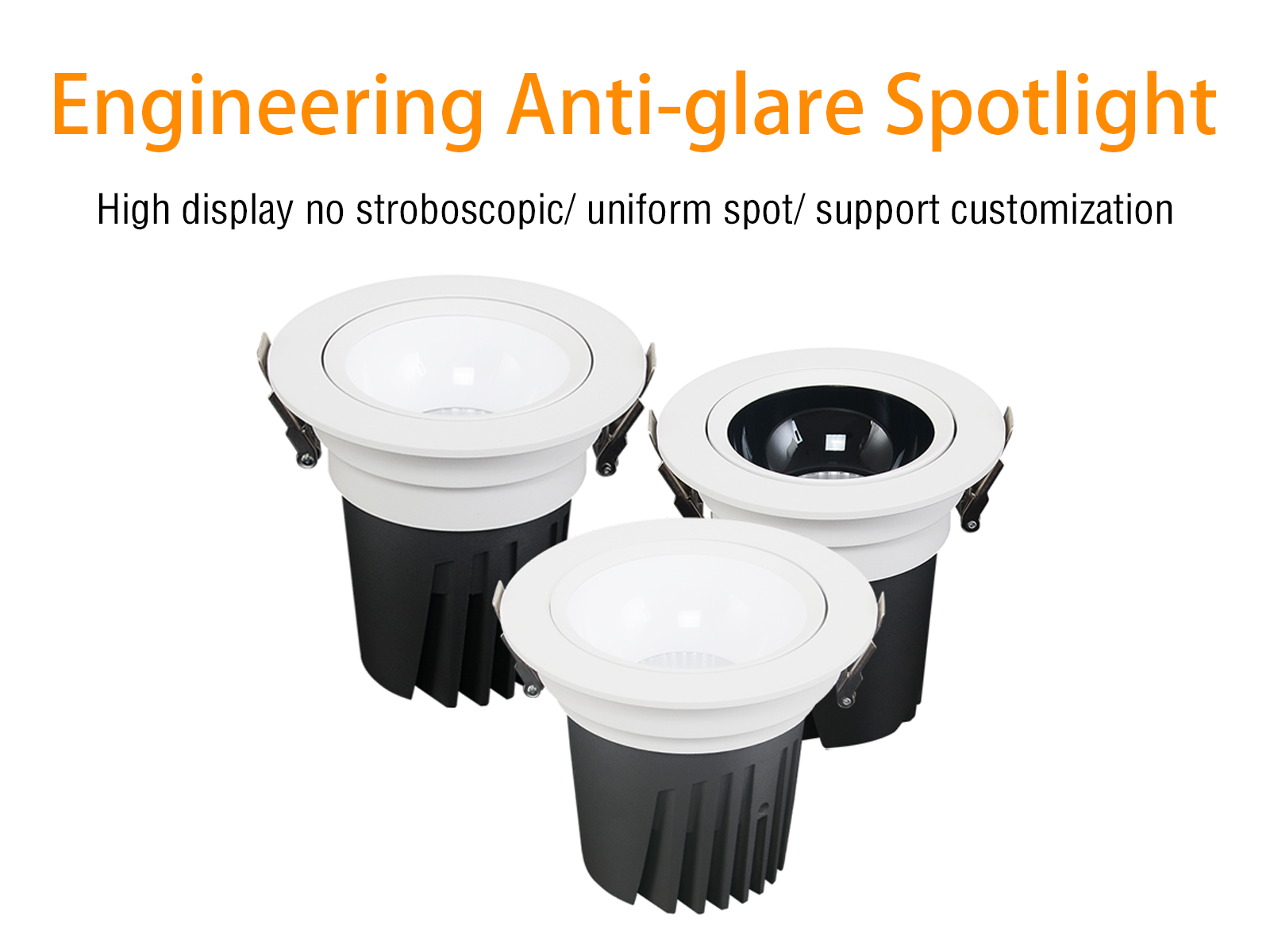

GC2212B Series: Adjustable Minimalist LED Spotlight

95% High Translucency | Ultra-Thin Bezel | Flexible Gimbal Targeting

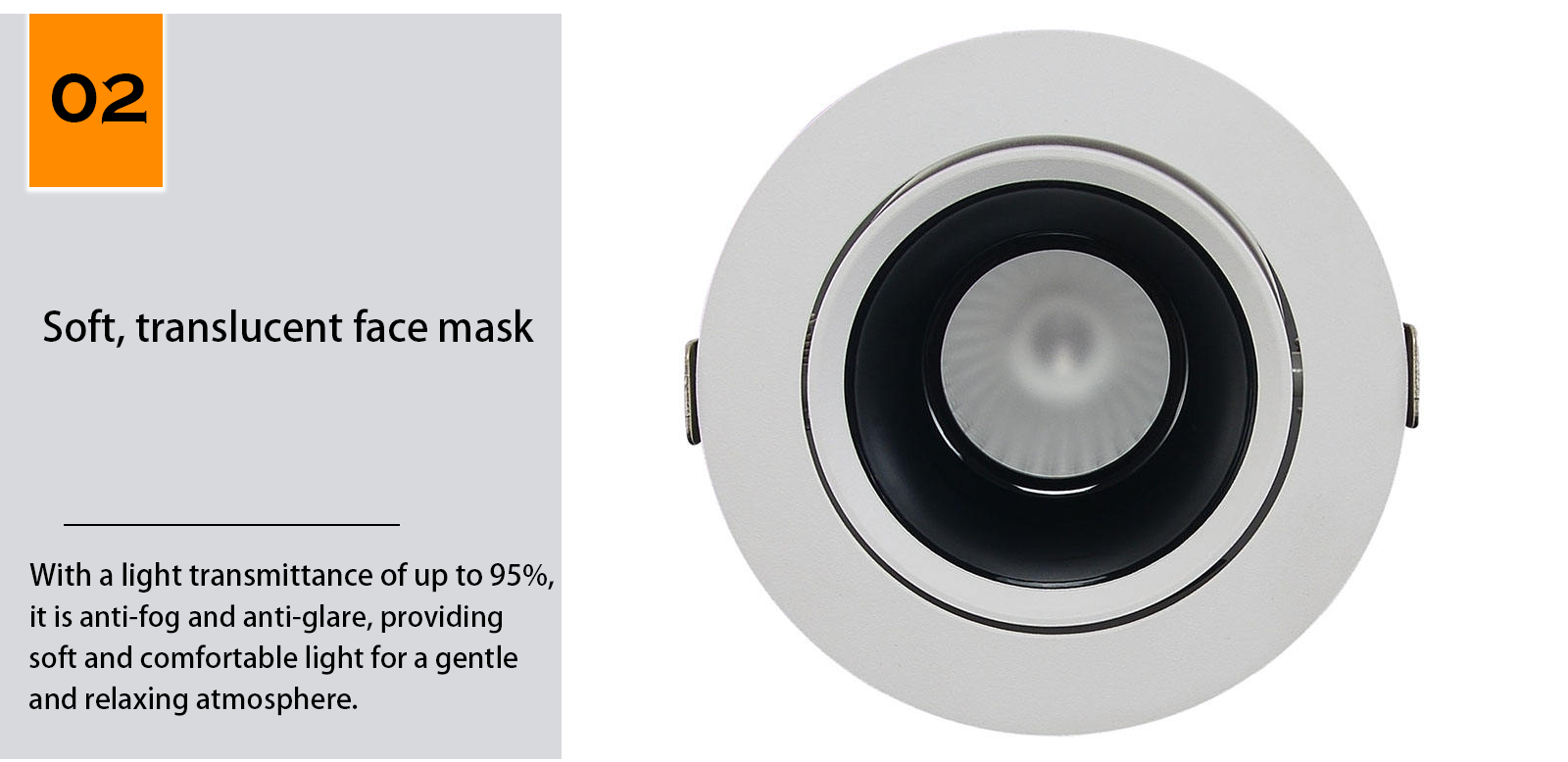

  • 95% Translucent Soft Mask: Equipped with a high-grade frosted diffusion mask boasting up to 95% light transmittance. It offers premium anti-fog and anti-glare features, delivering a gentle, glare-free, and relaxing lighting atmosphere.

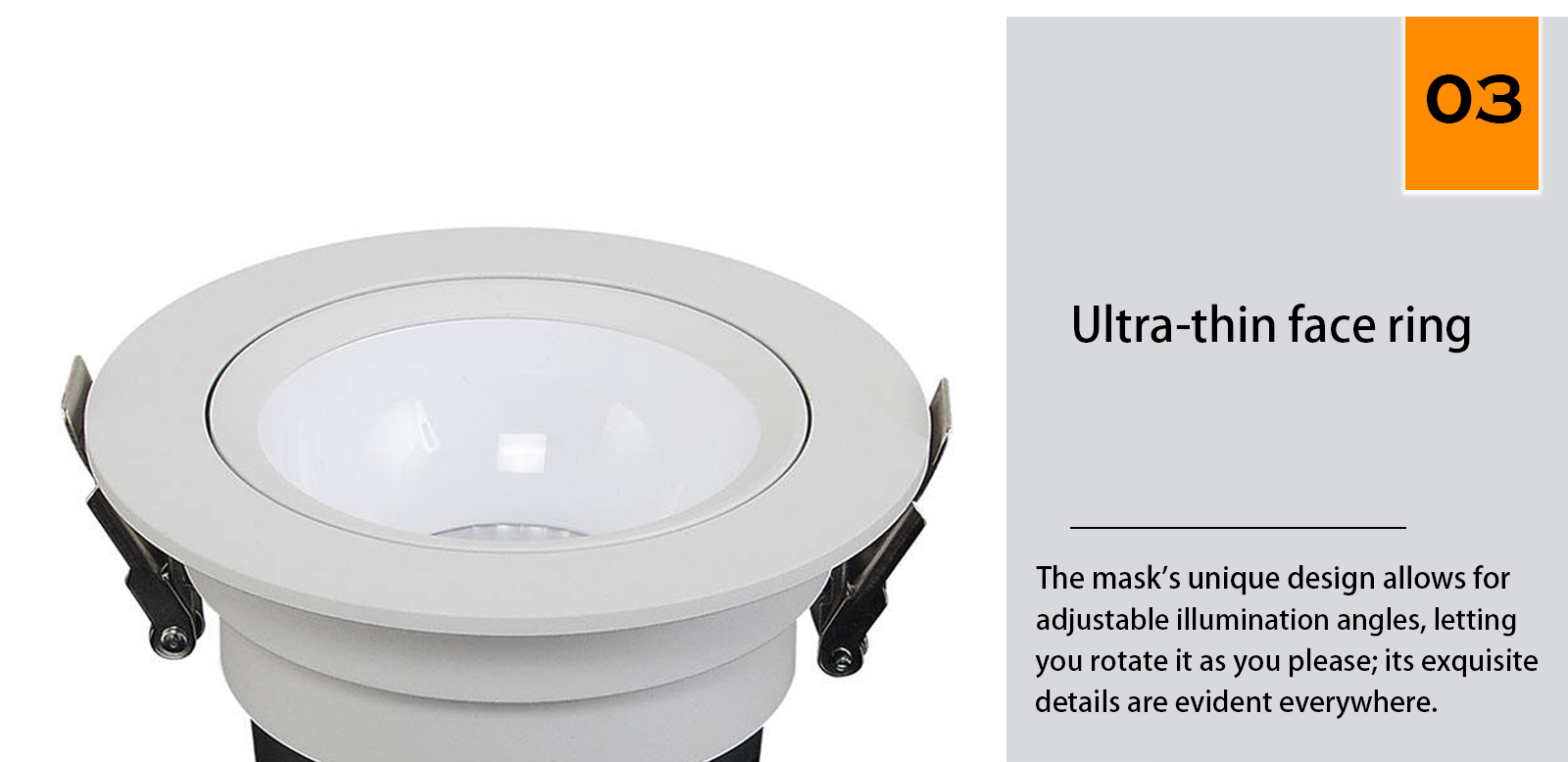

  • Ultra-Thin Invisible Trim: Features an ultra-thin face ring design that sits almost flush against the plasterboard, minimizing visual clutter and seamlessly integrating into high-end “quiet ceiling” spaces.

  • Flexible Angle Rotation: The inner ring supports adjustable illumination angles, allowing you to smoothly rotate and tilt the lamp module to focus light exactly where you need it.

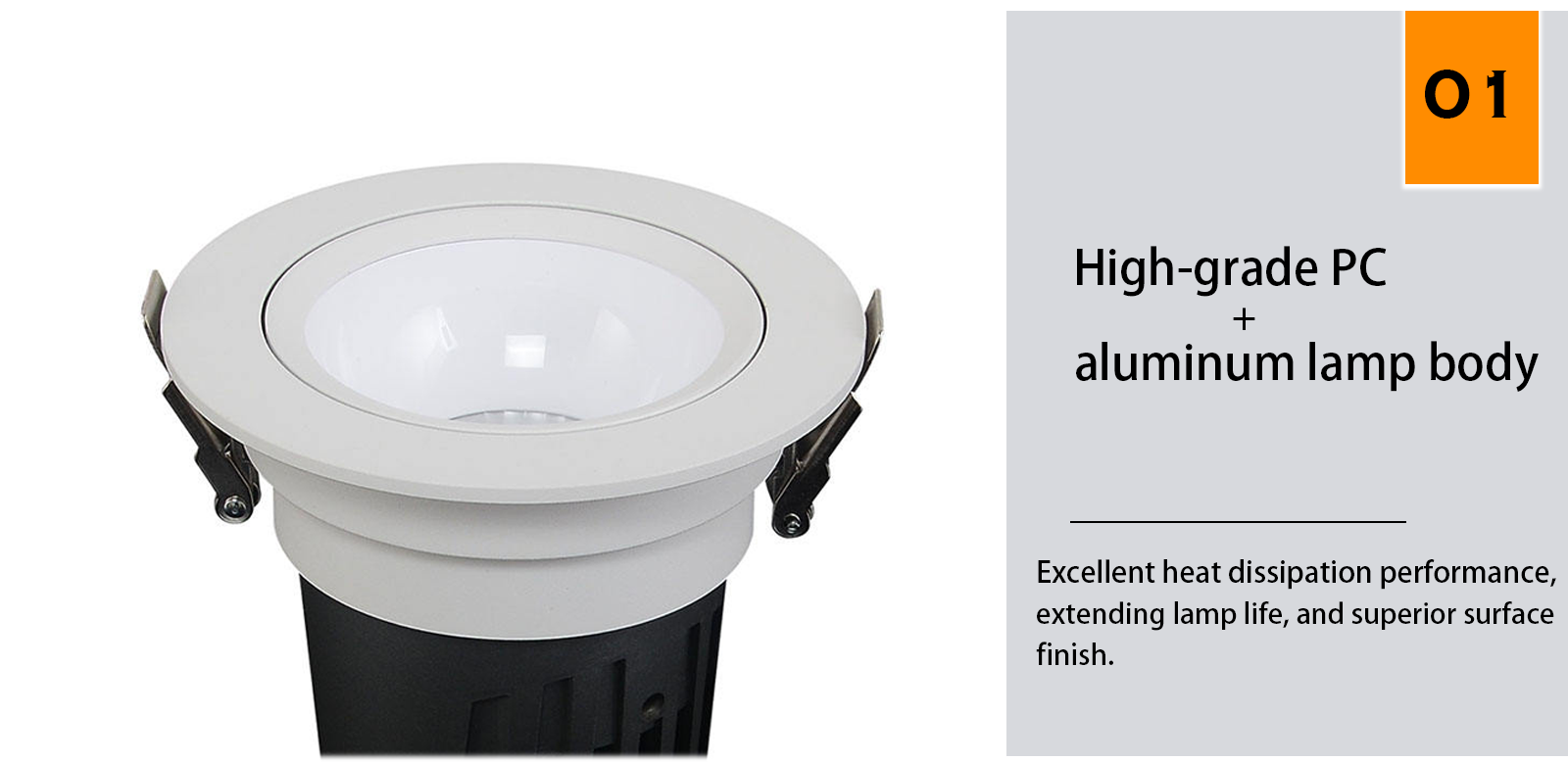

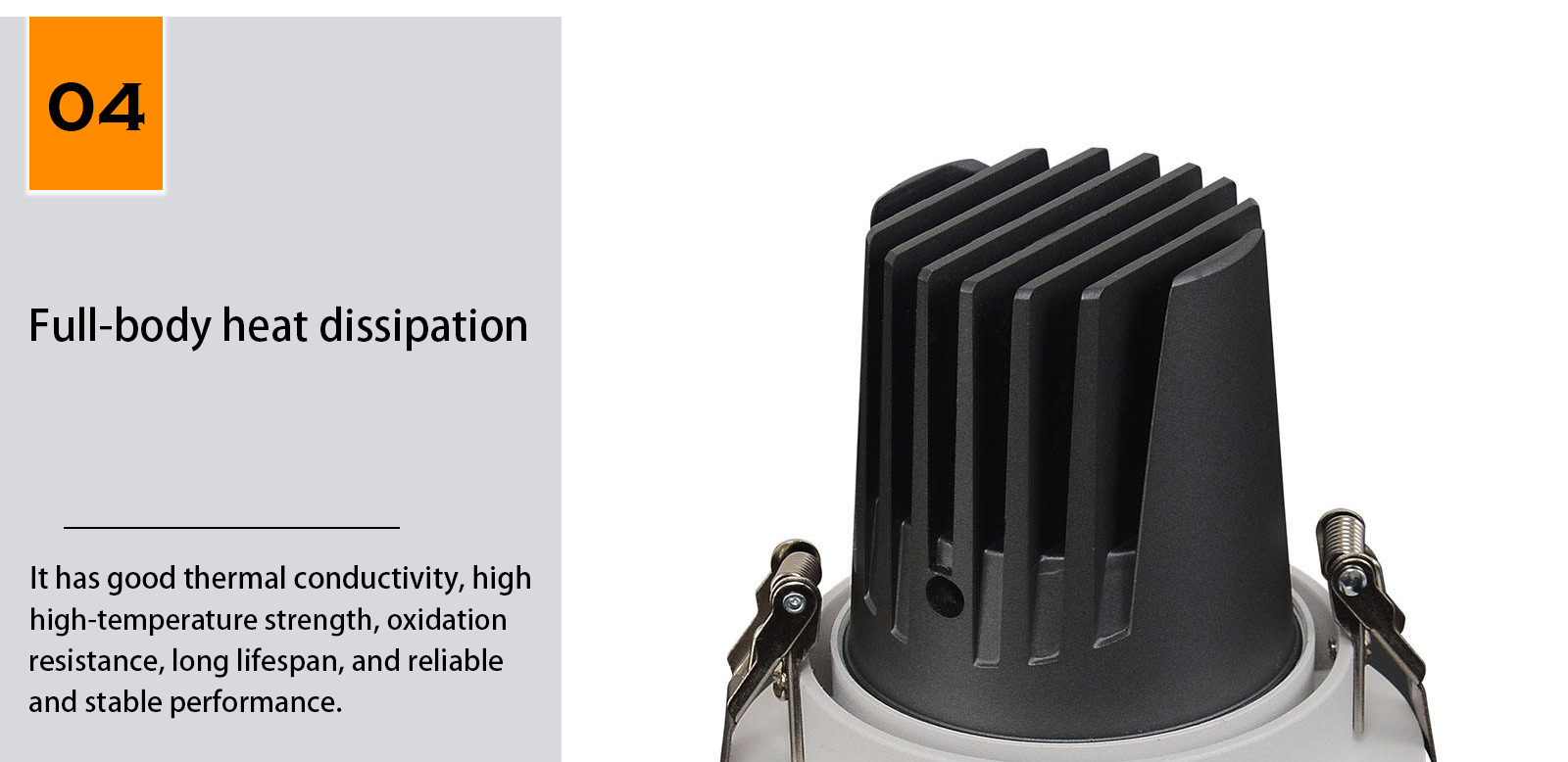

  • Advanced Hybrid Body Thermal System: Engineered with a premium PC and aluminum hybrid chassis utilizing a full-body heat dissipation fin structure. It delivers high thermal conductivity and oxidation resistance to secure a long, reliable operational lifespan.

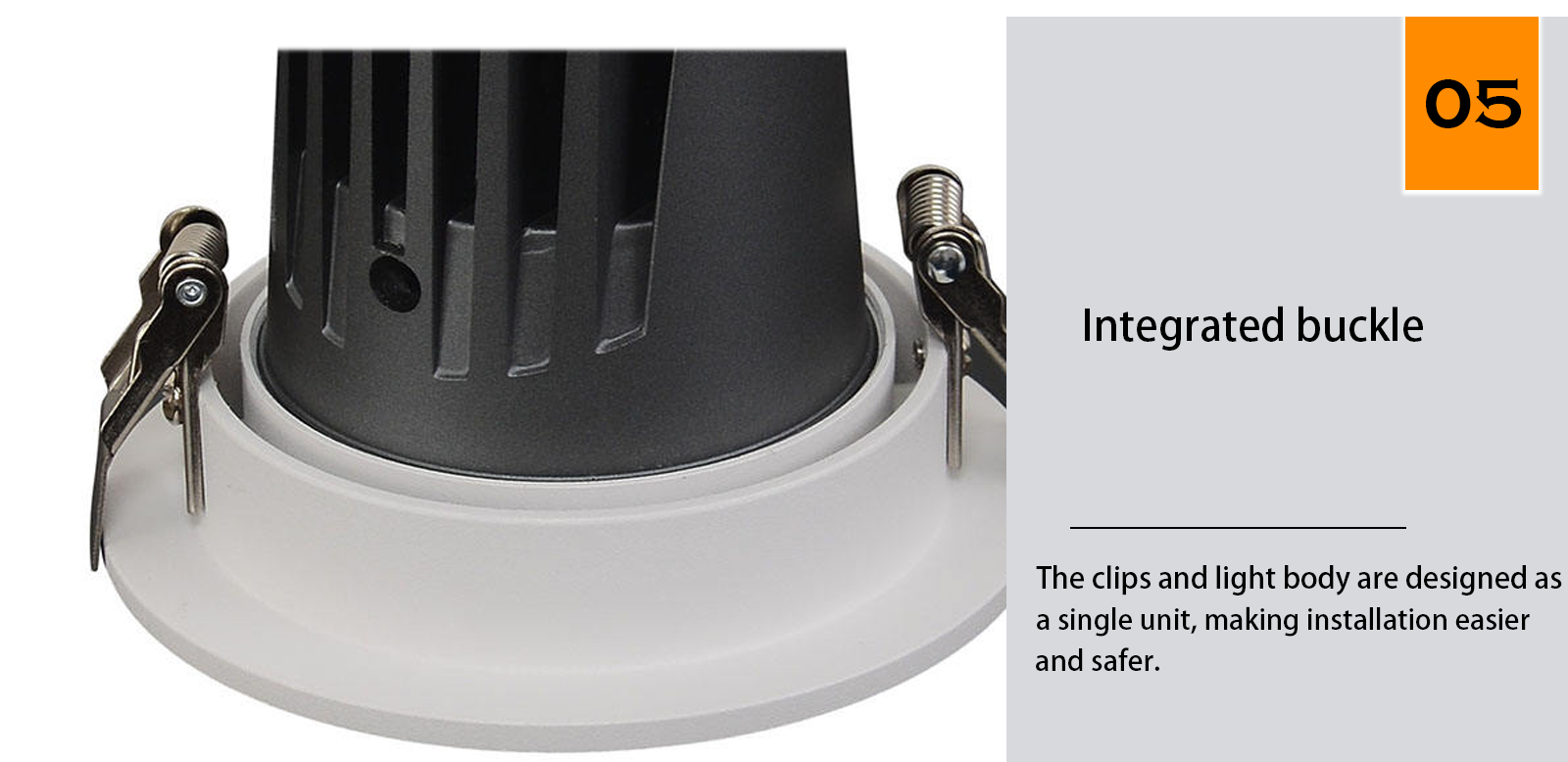

  • One-Piece Integrated Buckles: Features integrated heavy-duty spring clips designed as a single unit with the main architectural housing, making on-site ceiling installation significantly quicker, easier, and safer.

Technical Specification

MODEL GC2212B-12 GC2212B-20 GC2212B-30 GC2212B-40

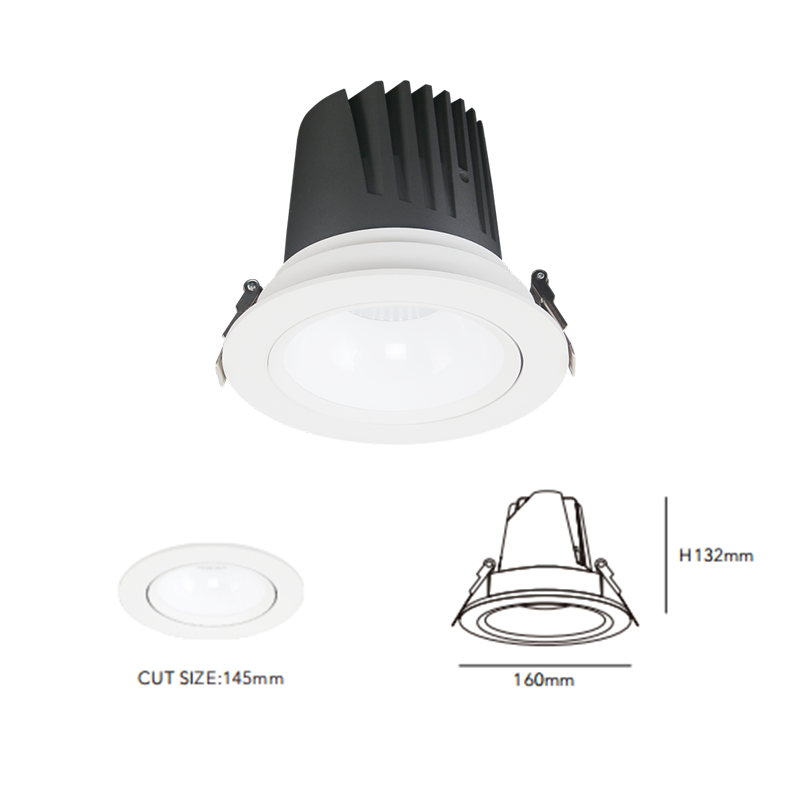

PRODUCT SIZE D90*H80mm D110*H110mm D140*H132mm DD160*H132mm
CUT SIZE D75mm D95mm D120mm D145mm
POWER 12W 20W 30W 40W
IP IP20 IP20 IP20 IP20
COLOR TEMPERATURE 3000K/4000K

/6000K

 3000K/4000K

/6000K

 3000K/4000K

/6000K

 3000K/4000K

/6000K
CASE COLOR White/ Black White/ Black White/ Black White/ Black
BEAM ANGLE 15°/ 24°/ 36°/ 55° 15°/ 24°/ 36°/ 55° 15°/ 24°/ 36°/ 55° 15°/ 24°/ 36°/ 55°
CRI (RA) ＞90 ＞90 ＞90 ＞90
LUMENS 960Lm 1600Lm 2400Lm 3200Lm
MATERIAL Aluminum Aluminum Aluminum Aluminum

FAQ

  • Q: What are the main installation benefits of the integrated buckle system on the GC2212B?

    • A: Our integrated buckle design means the heavy-duty spring clips are built directly into the structural collar of the lighting frame. This prevents loose components or spring detachments during rough on-site electrical installations, drastically saving labor time and ensuring a firmer, safer ceiling lock.

  • Q: Can the GC2212B be safely utilized in damp environments like modern kitchens or upscale restrooms?

    • A: Yes. Thanks to the high-quality anti-fog properties embedded in its soft translucent face mask, the fixture resists humidity and vapor beautifully, ensuring the soft light remains bright and pristine without condensation collecting behind the lens.

  • Q: Do you support architectural project quotes and supply data files?

    • A: Yes, absolutely. We specialize in B2B project distribution and supply chains. We can provide custom CCT, specialized remote drivers, and verified IES/LDT layout files for your Dialux software planning. Get in touch with our engineering support desk today to secure a sample or bulk discount matrix.
