GR/GF Series: Modular Pull-Out Architectural LED Spotlight System

Round vs Square | Single vs Double Head | Micro-Trim vs Trimless (Mud-in)

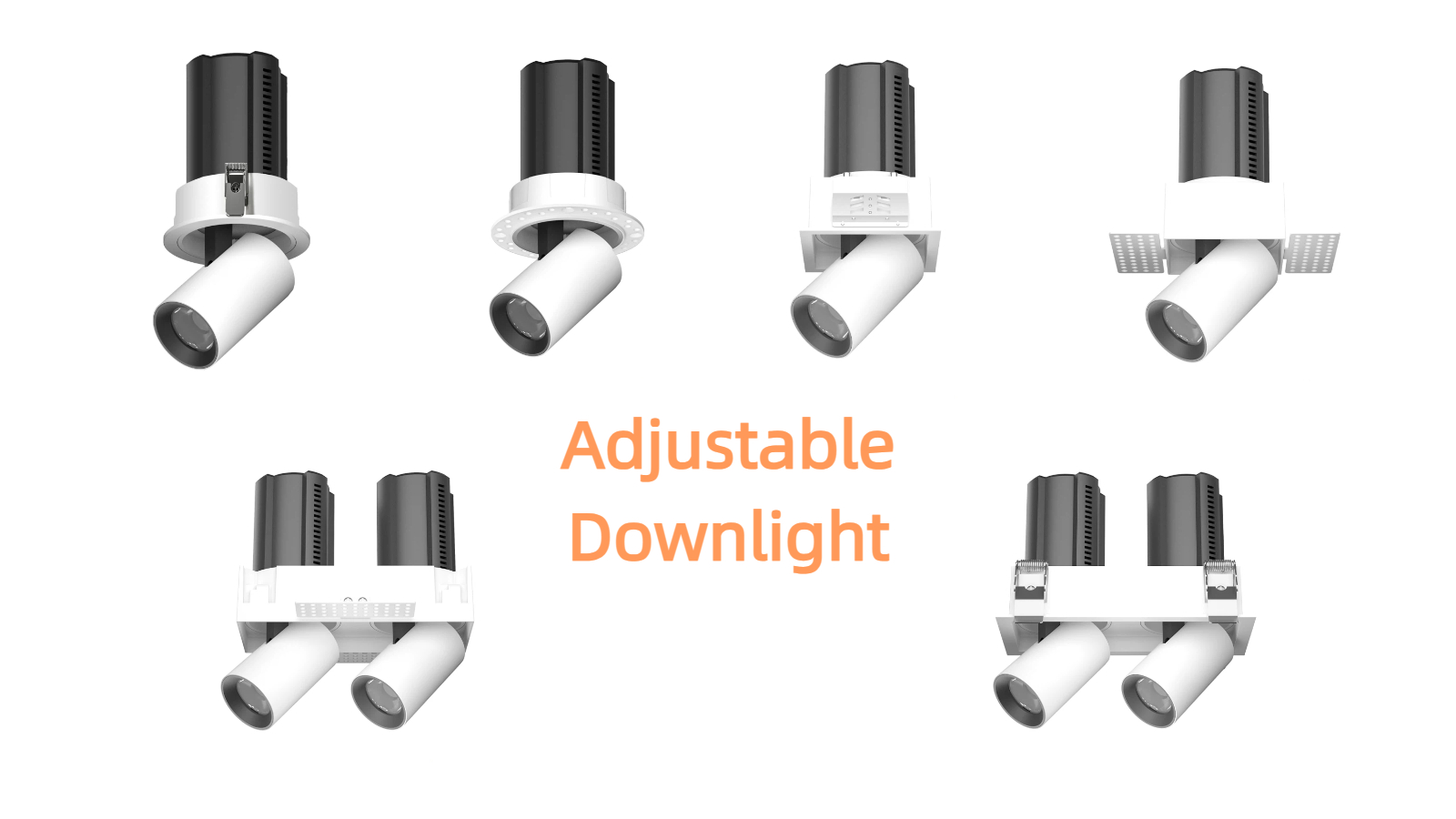

The GR/GF Series redefined commercial ceiling optimization. By separating the high-performance optical engine from the structural mounting frame, this series provides unlimited freedom across three core architectural choices (as captured in above picture):

• Geometry Evolution (Round vs Square): Choose soft Round Profiles for fluid, classic transitions, or dynamic Square Frames for crisp, geometric, and modern grid-aligned layouts.

• Density Scalability (Single Head vs Double/Multiple Head): Available in standard Single Head units for precise focal points, or Double Head / Multi-head Linear Formats to double the lumen punch without multiplying ceiling cutouts.

• Edge Integration (Micro-Trim vs Trimless): Opt for the Micro-Trim (Narrow Edge) for traditional fast installations, or go full minimalist with our mud-in Trimless (Trimless / Borderless) housing for a perfectly seamless, invisible ceiling profile.

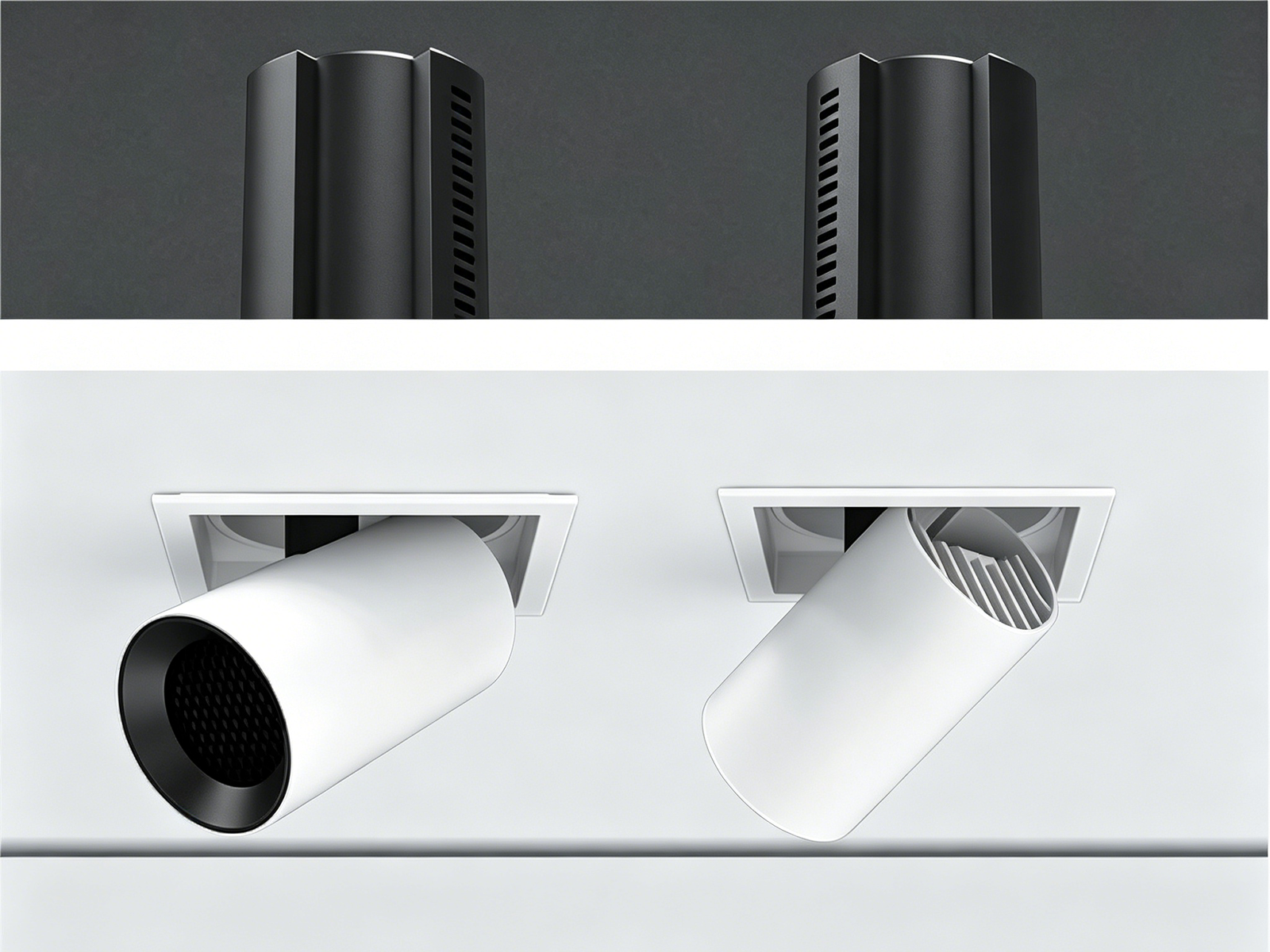

• Engineering Anti-Glare Core: Deep-recessed honeycomb or dark-light baffle design guarantees an ultra-low UGR index, eliminating eye fatigue while keeping the ceiling visually quiet.

• Flexible Pull-Out & Rotate Mechanicals: As illustrated in above picture, the inner spotlight barrels can be extended/pulled out downward and tilted flexibly, morphing instantly from a flush downlight to a powerful directional wall washer or track-style accent light.

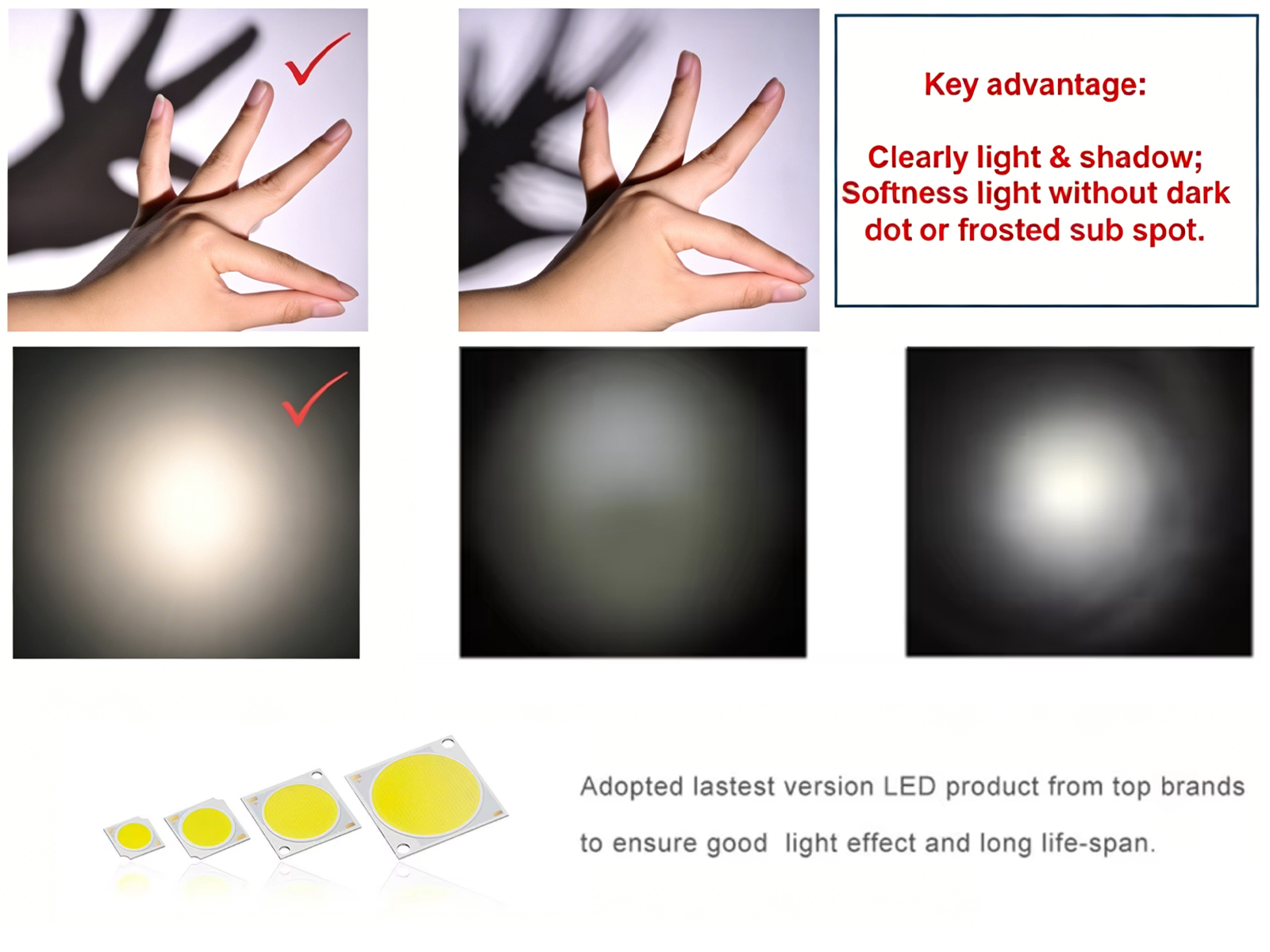

• Premium Display Quality (No Stroboscopic): Delivering flicker-free, uniform spot performance paired with high color fidelity (CRI ≥ 90 / Ra95) to satisfy strict high-end hospitalities and digital filming standards.

• Unified Project Drive: Use identical light modules across the entire building project to ensure perfect consistency in color temperature (CCT), beam angling, and lumen output, regardless of the housing style.

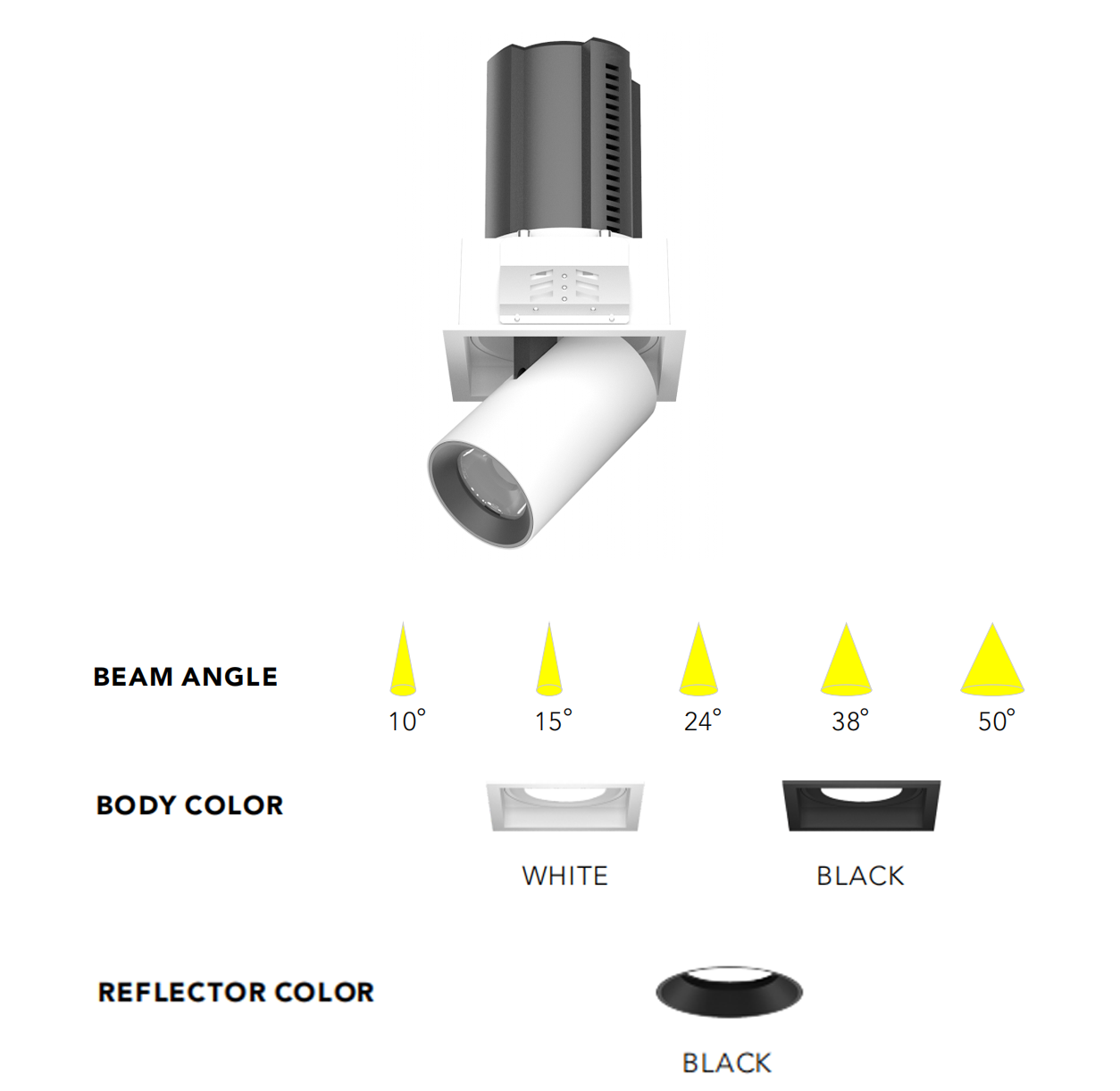

• Support Deep Customization: Fully adaptive B2B engineering workflows—custom finish options (white/black), specialized beam reflections, and intelligent dimming protocols (DALI, 0-10V, Casambi).

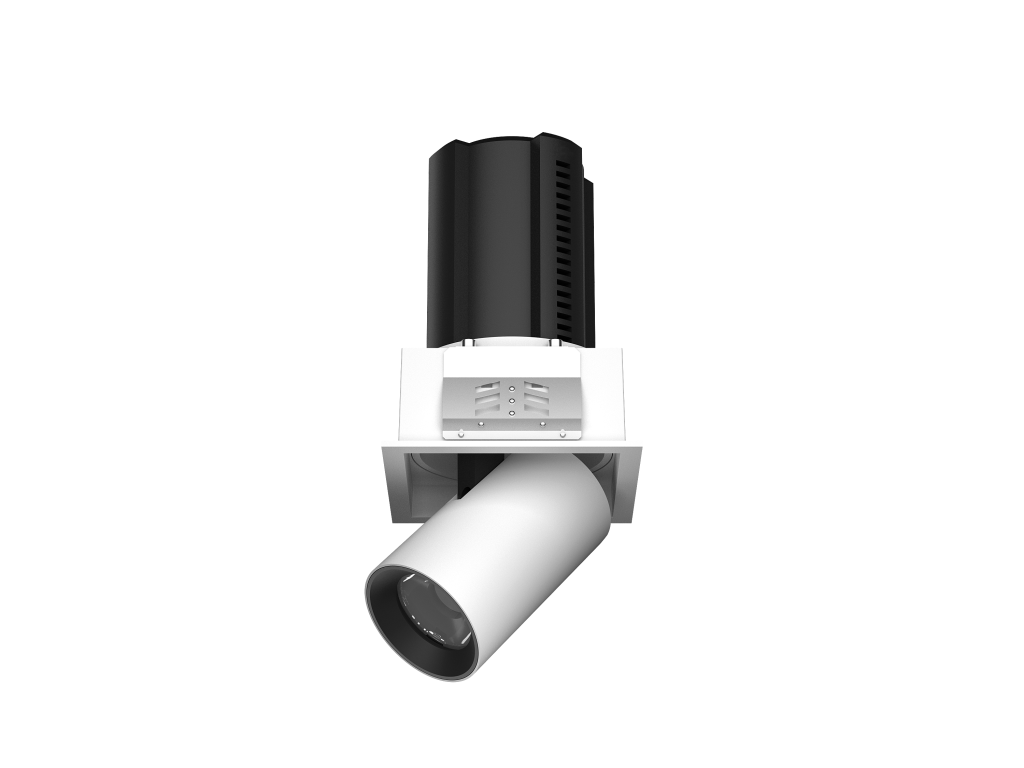

📐 Pull-Out Kinetic Adjustability: Flush Downlight Meets Accent Spotlight

Why choose between a fixed downlight and an adjustable track head? The GR/GF Series does both. Built with a heavy-duty mechanical dual-axis hinge system, the lamp body can remain hidden up flush in the ceiling grid or be manually pulled down out of its chassis. This unique engineering allows up to $90^\circ$ tilting and rotational freedom, letting you target light precisely onto merchandise shelves, columns, or artwork.

🧱 Architectural Freedom: Trimless Mud-In vs Micro-Trim Flange

Achieving a clean interior finish requires tailored mounting profiles. For fast, cost-effective retrofits, our Micro-Trim (Narrow Edge) covers cutout imperfections instantly. For clean-lined, high-end residential or gallery spaces, our plaster-in Trimless (Borderless) outer frame incorporates perforated aluminum ears. Once mudded, plastered, and painted into the ceiling sheetrock, the frame disappears entirely, leaving only pure, glare-free light.

⚡ Linear Cluster Options: Double & Multi-Head Configurations

When an accent area requires higher candlepower, adding multiple separate downlights ruins the ceiling’s visual layout. The GR/GF Series Linear Twin-Head and Triple-Head housings cluster high-output COB engines within a single, integrated structural box. Each module maintains independent pull-out and rotational tracking, giving you multi-directional control from a single compact ceiling aperture.

*Technical Excellence, Redefined

Review the core parameters that make the GF Square series LED recessed downlight a masterpiece of architectural lighting.

FAQ

• Q: How does the modular concept of the GR/GF Series save budget on large-scale commercial tenders?

  • A: Lighting specifications often vary between a building’s lobby (requiring square trimless double-heads), corridors (requiring round single micro-trims), and feature walls (requiring pull-out options). Instead of dealing with multiple factories and mismatched light outputs, the GR/GF Series uses one standardized inner core module. This ensures 100% uniformity in light output and color across the venue while drastically lowering your stock keeping unit (SKU) sourcing costs.

• Q: Is the trimless version easy to maintain if an LED driver or chip needs service?

  • A: Yes, perfectly. Even though the outer trimless plaster-frame is mudded permanently into the drywall, the core optical inner engine uses a snap-lock quick-release mechanism. You can pull down the internal canister to replace the module or service the remote driver without cracking or touching the finished plasterboard ceiling.

• Q: Can we request specialized dimming or custom brand drivers for large-scale building tenders?

  • A: Absolutely. We cater extensively to B2B lighting consultants, wholesale distributors, and shopfitters. The GR/GF series can be custom-bundled with world-class remote flicker-free drivers (such as Lifud, Philips, Tridonic, or Osram) supporting DALI digital addressing, 0-10V analog tuning, or TRIAC phase dimming.
