IC5039 Series: Engineering Anti-Glare LED Spotlight
High CRI | Flicker-Free | Heavy-Duty Aluminum Thermal Management
-
Project-Grade Anti-Glare: Designed with a deep recessed architectural bezel that hides the light source, effectively minimizing glare for ultimate eye comfort in commercial spaces.
-

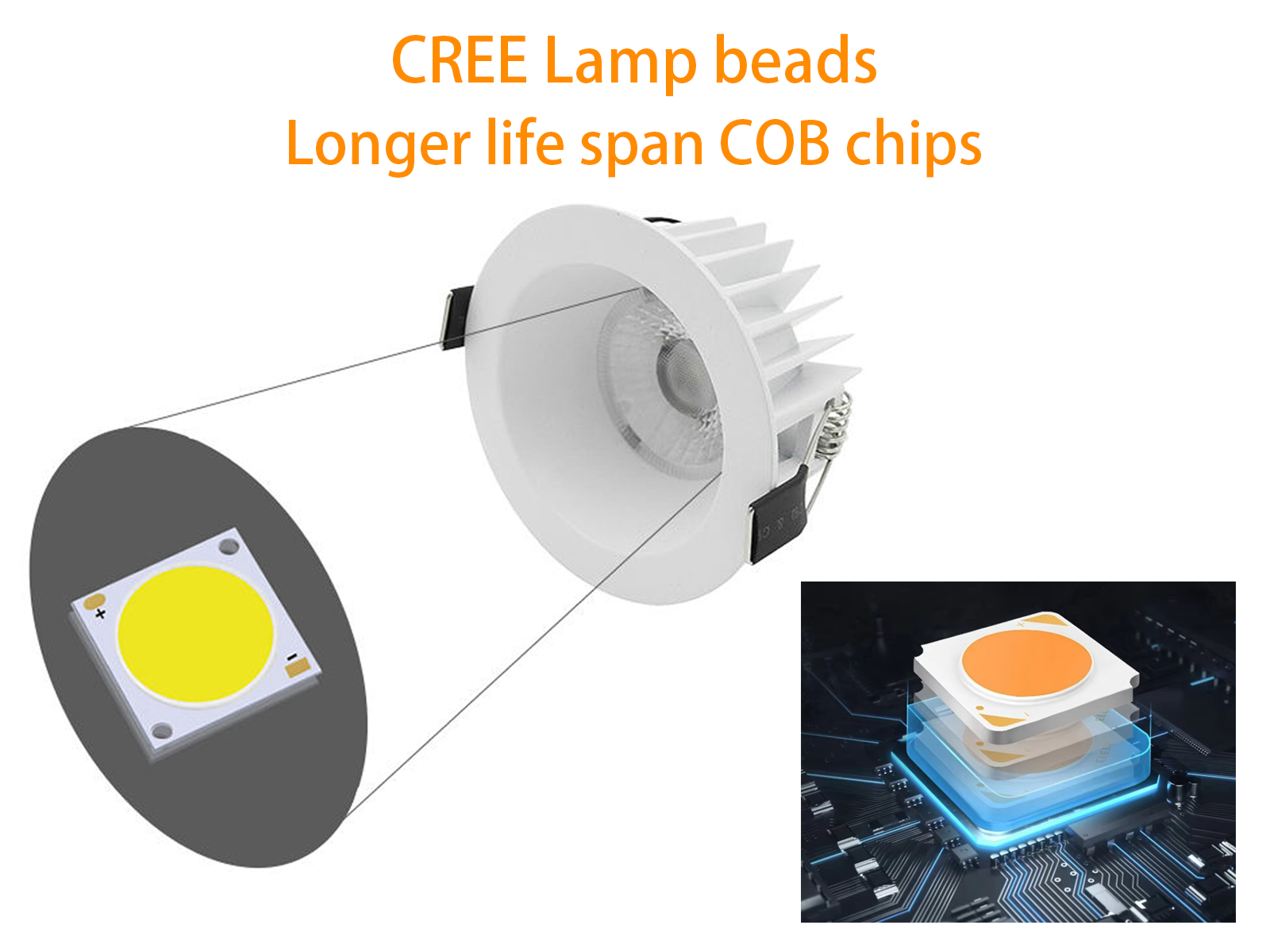

True Color Rendering (High Display): Features premium COB/LED chips delivering a high color rendering index (CRI ≥ 90 / Ra95), restoring the true, vibrant colors of interiors.
-
Flicker-Free Driver (No Stroboscopic): Equipped with an advanced constant-current remote driver to ensure zero stroboscopic effect, preventing eye fatigue and passing strict camera flicker tests.
-
Flawless Beam (Uniform Spot): Utilizes a precision-engineered optical lens/reflector that projects a clean, uniform light spot with smooth edge transitions and no dark rings or artifacts.
-
Heavy-Duty Thermal Management: The back features a massive, integrated die-cast aluminum radiator with dense cooling fins for superior heat dissipation, maximizing the luminaire’s stability and lifespan.
-
OEM/ODM Ready (Support Customization): Fully customizable configurations available for project specifications, including custom power (wattage), dimming protocols, beam angles, and color temperatures.
Main Features
🛡️ Deep Comfort: Architectural Anti-Glare Construction

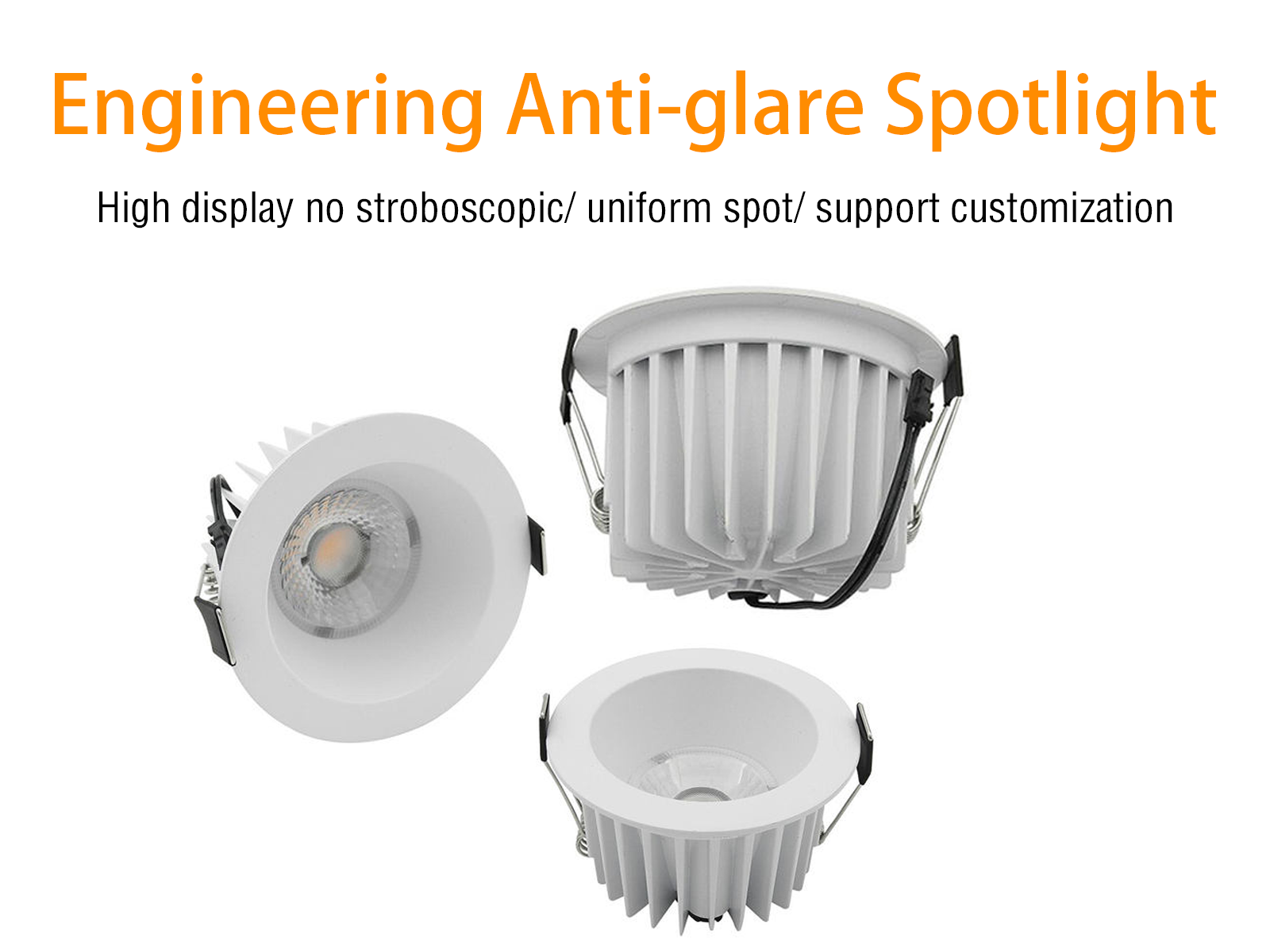

As highlighted in 1.jpg, the IC5039 series is born for demanding engineering environments. By recessing the light source deep within the smooth white cone housing, it cuts off direct eye-to-chip contact at normal viewing angles. This creates a glare-free, premium ambiance suitable for offices, luxury retail stores, and modern residential ceilings.

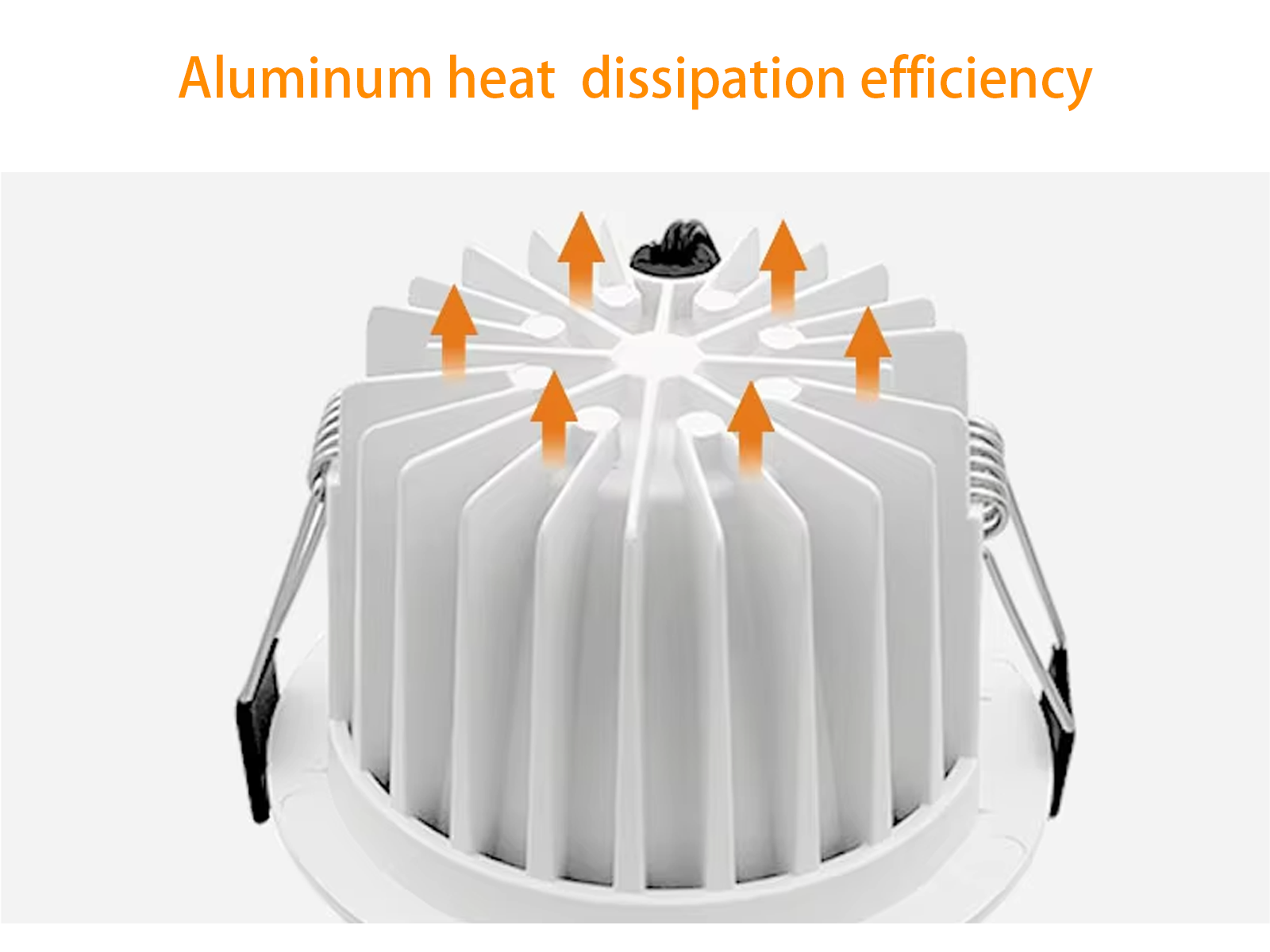

🌀 Extreme Cooling: Massive Die-Cast Aluminum Heat Sink
Thermal management is the heart of engineering stability. The IC5039 features a robust, one-piece die-cast aluminum housing with specialized vertical cooling fins. This heavy-duty design dramatically accelerates air convection, drawing heat away from the LED chip to ensure zero color shift and an extended lifespan of over 50,000 hours.
📸 Studio Quality: High Display & No Stroboscopic
Say goodbye to bad lighting and camera lines. Our high-display chips ensure that textures, fabrics, and skin tones are rendered accurately. Paired with a top-tier flicker-free driver, it delivers seamless, steady illumination that is entirely safe for spaces where video filming, photography, or prolonged focus is required.
Technical Specification

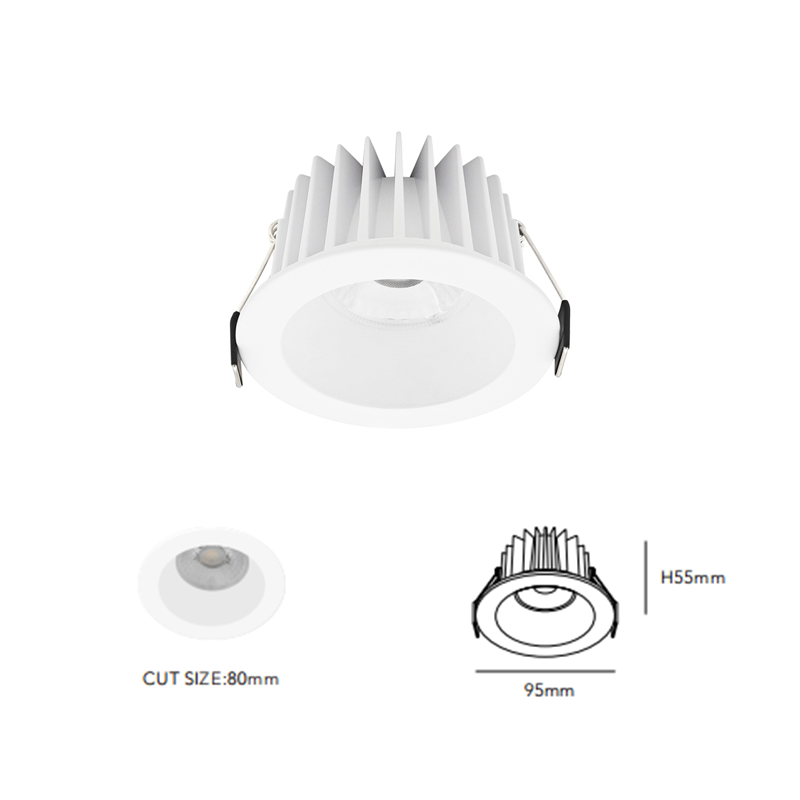

| MODEL | IC5039 |
| PRODUCT SIZE | D95*H55mm |
| CUT SIZE | D80mm |
| POWER | 5W/7W/9W/12W |
| IP | IP20 |
| COLOR TEMPERATURE | 3000K/4000K
/6000K |
| CASE COLOR | White/ Black |
| BEAM ANGLE | 15°/ 24°/ 36°/ 55° |
| CRI (RA) | ＞90 |
| LUMENS | 80Lm/W |
| MATERIAL | Aluminum |
FAQ
-
Q: What makes the IC5039 an “Engineering-Grade” spotlight?
-
A: Unlike flimsy retail-grade downlights, the IC5039 boasts a massive aluminum heat sink to withstand prolonged operation in commercial projects. It is built to meet strict project specifications regarding UGR, glare control, uniform spot delivery, and component longevity.
-
-
Q: How can we customize this model for our specific lighting project?
-
A: We fully support project customization. You can choose specified LED drivers (such as Lifud, Philips, or Tridonic), select particular dimming protocols (DALI/TRIAC/0-10V), or request specific beam angles and cutout dimensions to fit your existing ceiling layouts.
-
-
Q: Do you offer IES files for Dialux simulation?
-
A: Yes. We provide full photometric data, including IES and LDT files for the IC5039, allowing lighting designers and contractors to perform accurate light calculations before bulk purchasing. Contact our sales team to request the files.
-
