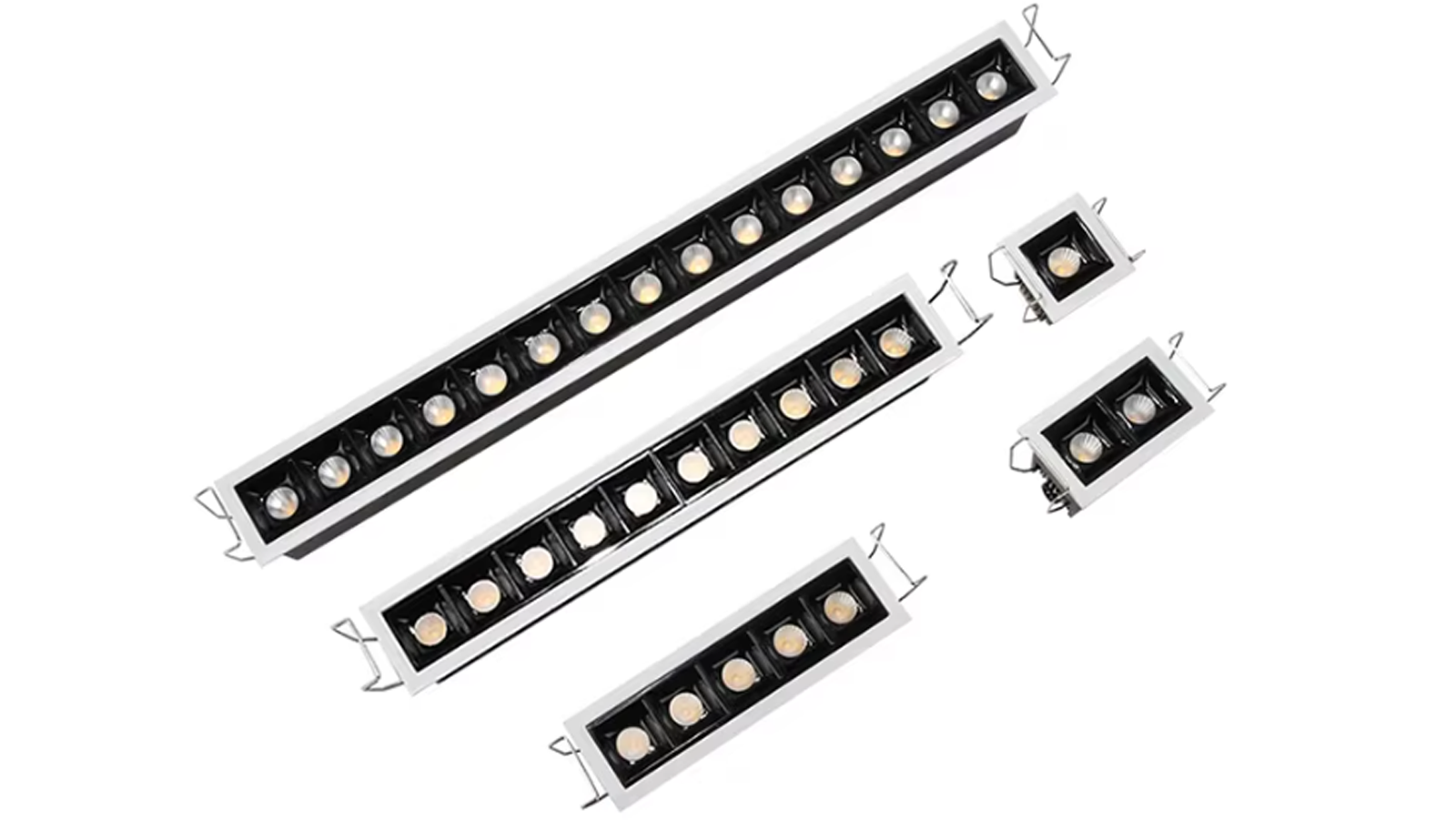

MINI Series: Modular Ultra-Narrow Architectural Recessed Linear Downlight

Modular 1 to 15 Heads | Ultra-Slim 37mm Cutout Width | 15° / 30° / 45° Precision Optics

The MINI Series redefine architectural accent lighting with a seamless, ultra-narrow modular design. Built with premium Die-Cast Aluminum radiators and optical-grade Acrylic lenses, this linear spot range maintains a standardized, super-slim 37mm cutout width across all five configuration tiers—allowing specifiers to build continuous light rhythms throughout a project:

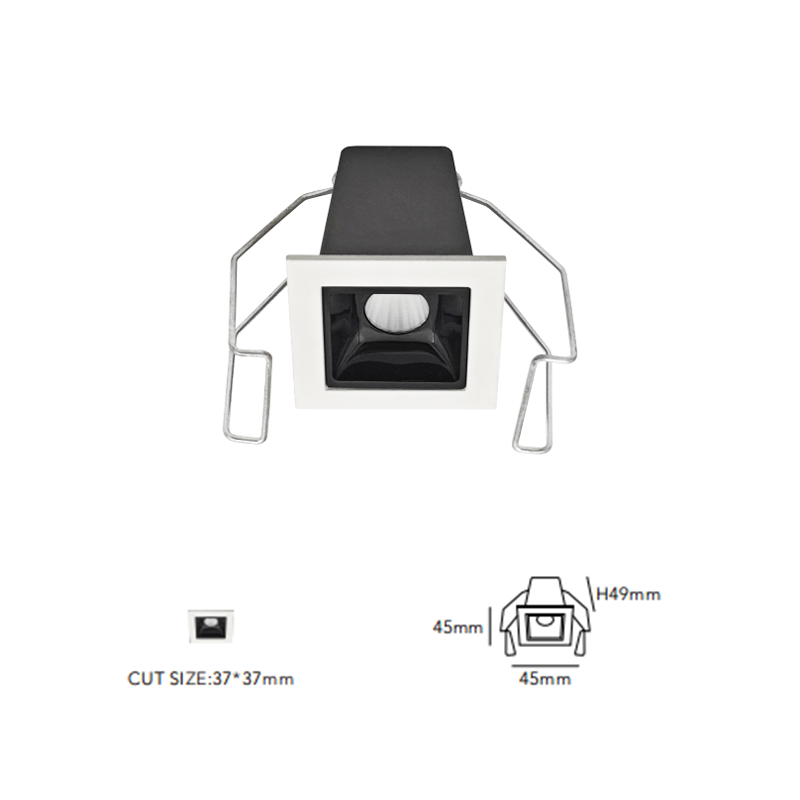

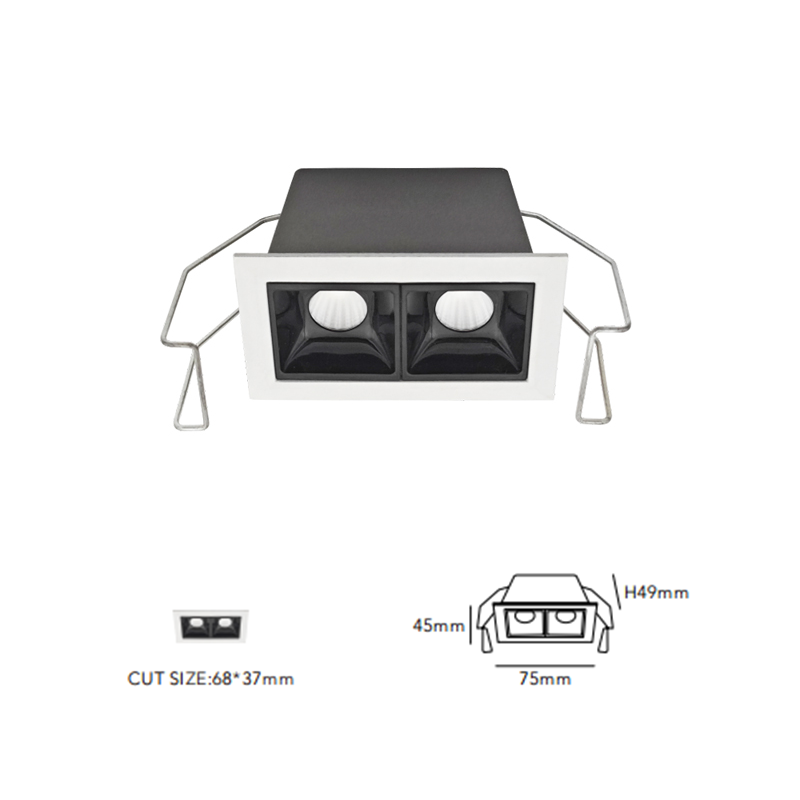

• Micro Accent Points (MINI01 & MINI02): Available in 1-head (2W / 160Lm) and 2-head (4W / 320Lm) options. Perfect for cabinet niche lighting, subtle artwork highlighting, or entryway step accents.

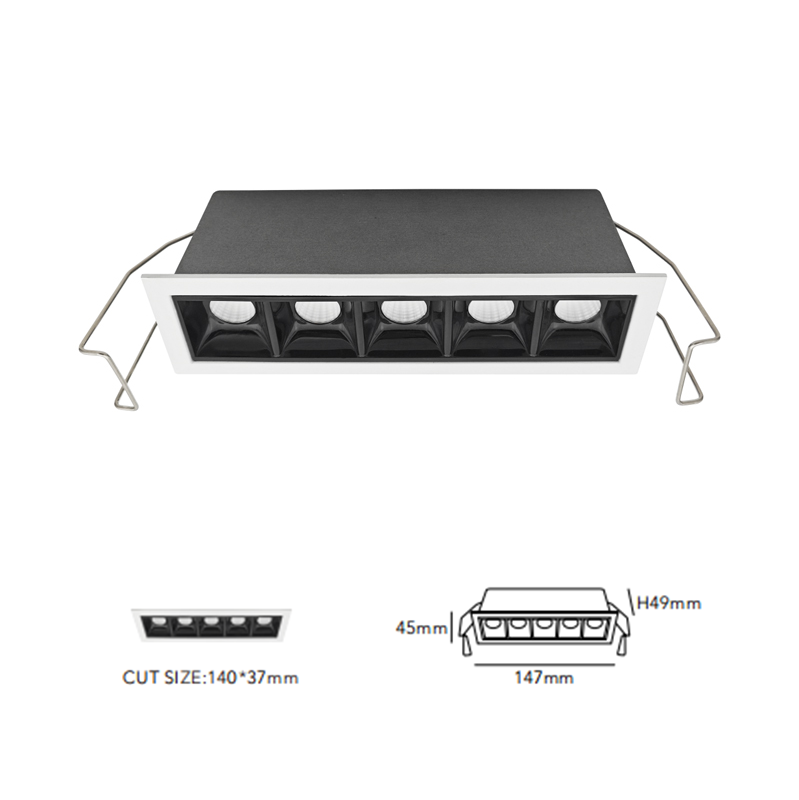

• Mid-Length Linear Washers (MINI05): 5-head (10W / 800Lm) in a 140*37mm cutout format. Ideal for precise wall-washing over bed headboards, credenzas, and corridor features.

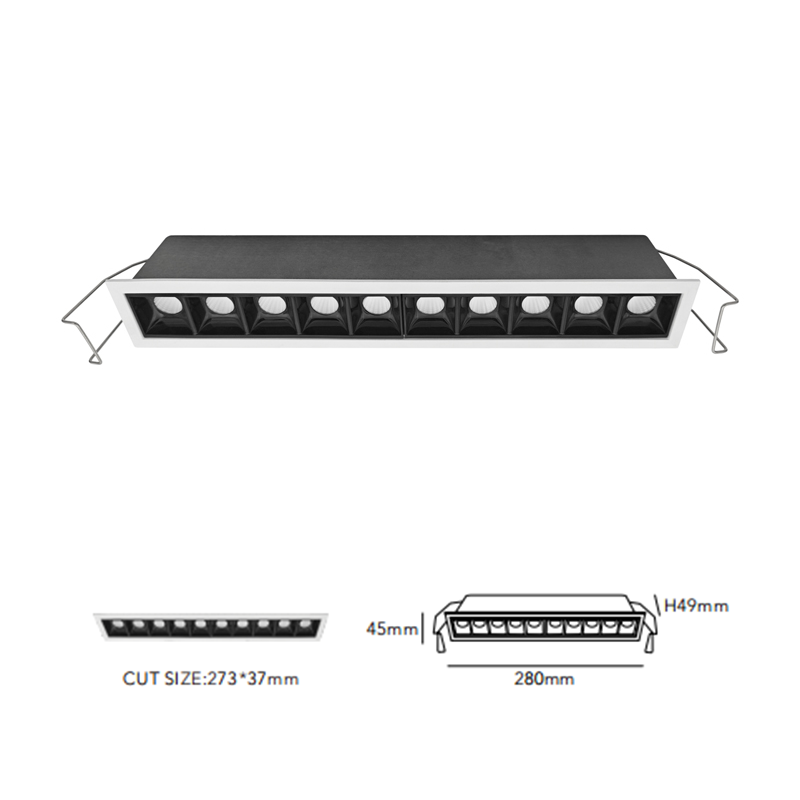

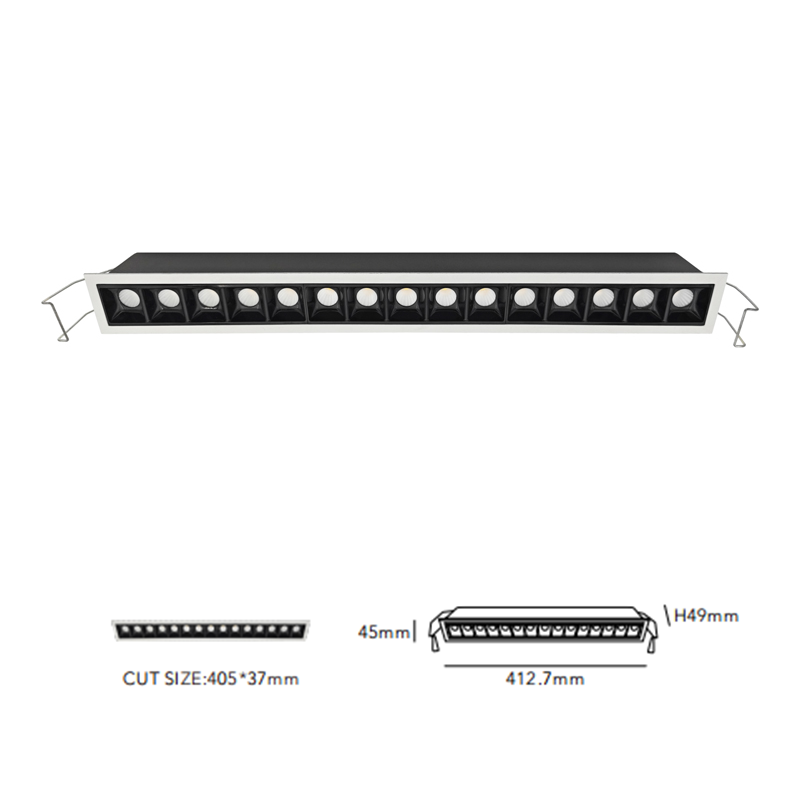

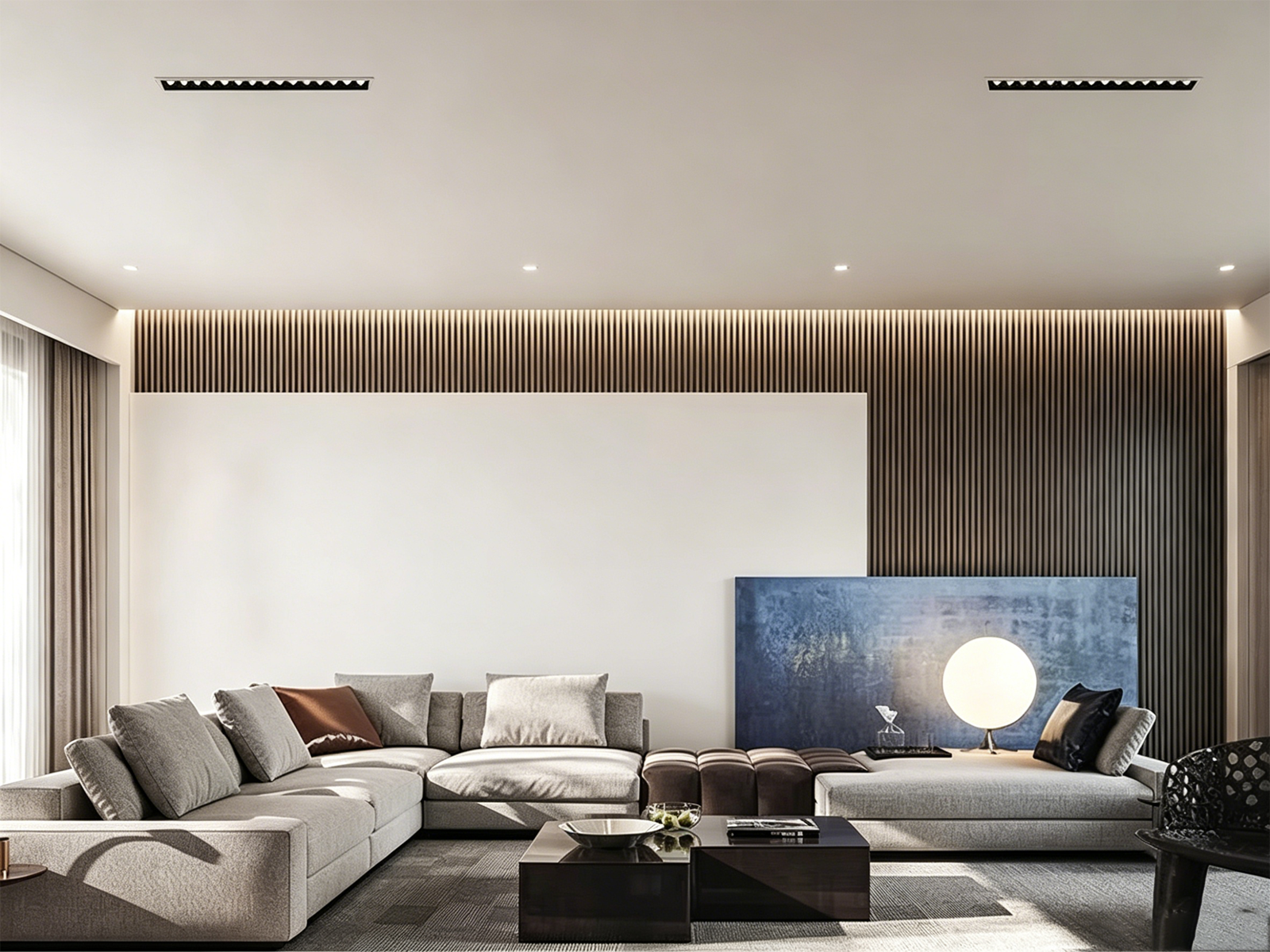

• High-Output Continuous Strips (MINI10 & MINI15): Available in 10-head (20W / 1600Lm) and 15-head (30W / 2400Lm) designs extending up to 405*37mm. Engineered to replace bulky downlights in high-end living rooms, luxury retail stores, and commercial galleries.

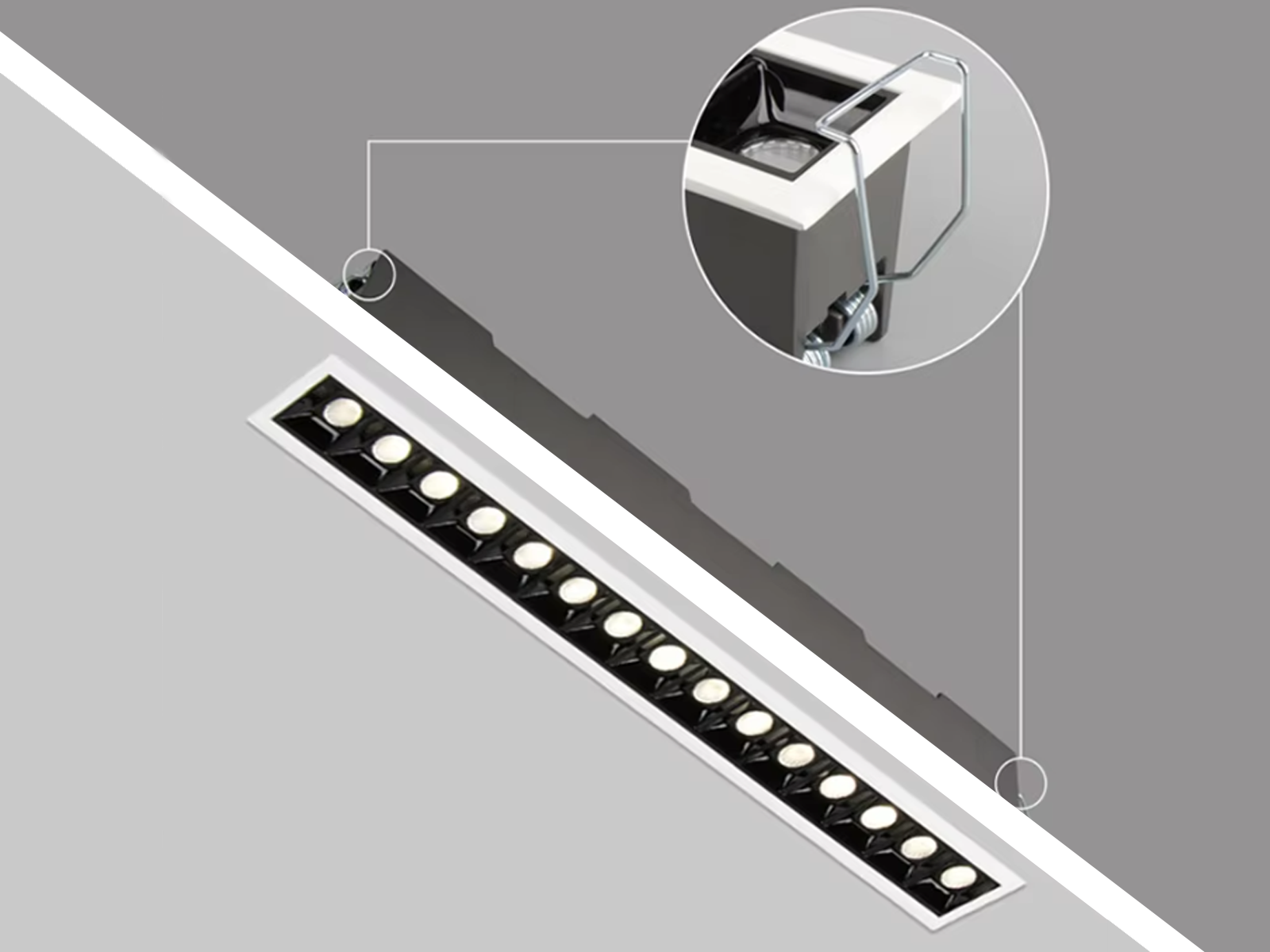

• Ultra-Narrow 37mm Aperture Profile: Features a uniform 37mm cutout width across all head counts, creating a sleek, linear light signature that integrates seamlessly into modern drywall ceilings.

• Modular Head Scalability (1 to 15 Heads): Scalable power options ranging from 2W (160 Lm) up to 30W (2400 Lm) enable consistent optical design across diverse interior spatial scales.

• Contrast White + Black Anti-Glare Housing: Outfitted with an architectural white outer frame and deep matte-black optical louvers to eliminate harsh visual glare and hide the light source (Low UGR).

• Precision 15°/ 30°/45° Optics: Choice of 15° (Narrow Beam), 30° (Medium Wash), and 45° (Wide Flood) optical lenses for precise wall washing or accent lighting.

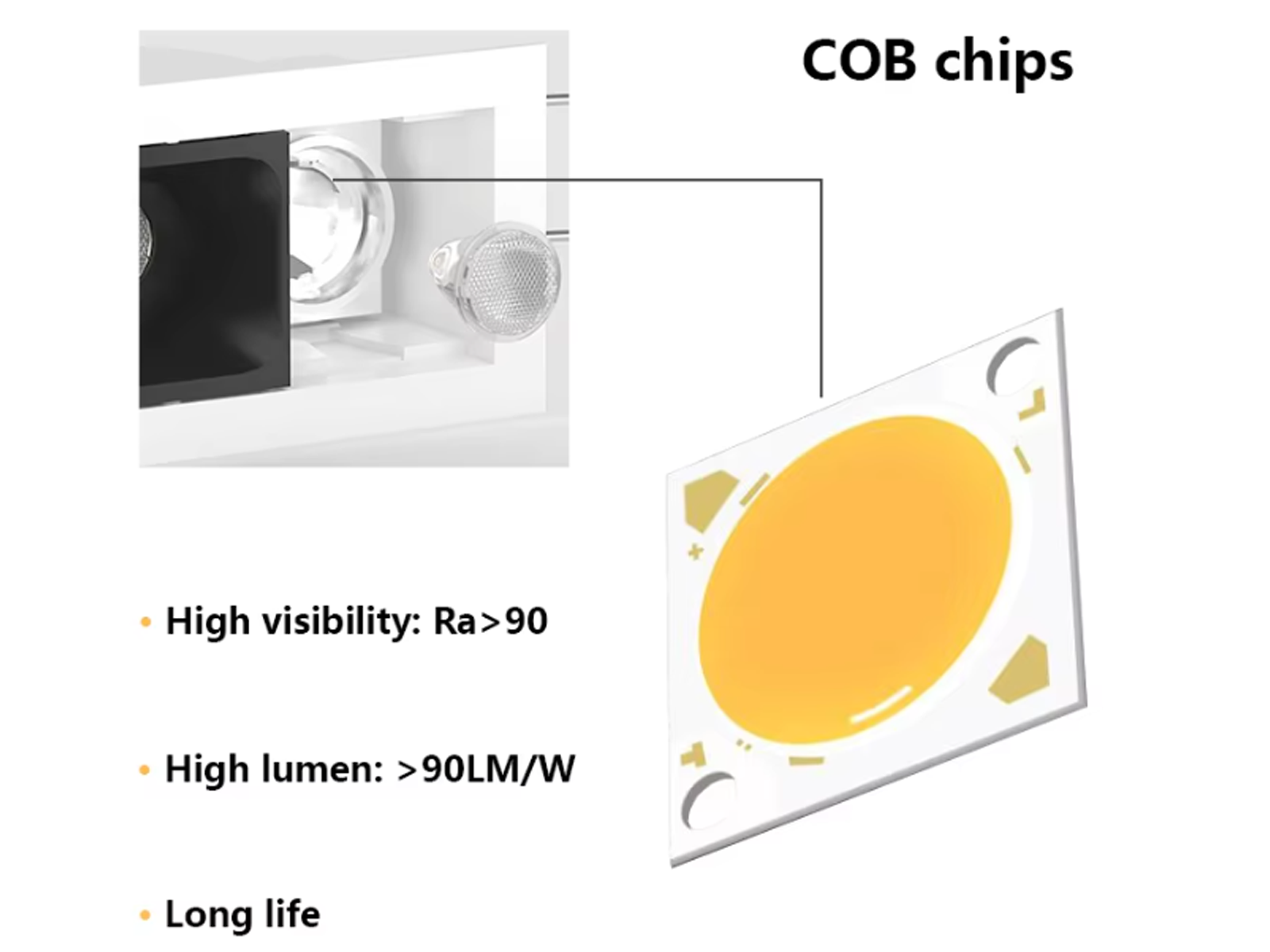

• Museum-Grade CRI > 90 Accuracy: Premium high-CRI LED engines ensure fabrics, timber finishes, artwork, and interior stone materials maintain natural color accuracy.

• Integrated Aluminum Heat Management: Low-profile 49mm structural height paired with heavy-duty aluminum heat sinks allows fast heat dissipation for 50,000+ hours of operation.

*Technical Excellence, Redefined

Review the core parameters that make the MINI series LED recessed linear downlight a masterpiece of architectural lighting.

FAQ

Q: How does the ultra-compact H49mm height benefit shallow ceiling installations?

• A: With an overall body height of just 49mm, the MINI series fits comfortably into shallow ceiling voids without interference from structural studs, wiring conduits, or low-clearance plenum spaces.

Q: Can the MINI series be integrated into intelligent commercial lighting controls?

• A: Yes. We offer full B2B project supply customization. All models (1 to 15 heads) can be paired with external flicker-free LED drivers supporting DALI-2 digital control, 0-10V analog dimming, TRIAC phase-cut, or wireless protocols (Casambi, Tuya, Zigbee).

Q: Do you offer bulk discounts or custom bezel finishes for hospitality projects?

• A: Absolutely. As an OEM/ODM lighting manufacturer, we support project lighting consultants, shopfitters, and B2B distributors with competitive bulk pricing, Dialux simulation, and customized finish options (e.g., black trim or gold reflectors). Contact our project desk for an instant quote.
