In the world of professional lighting design, the ability to precisely control where light falls can make the difference between ordinary illumination and extraordinary visual impact. The Smart DALI Wall Washer LED Down Light represents a breakthrough in intelligent accent lighting technology, combining adjustable directional control with cutting-edge DALI digital management to create stunning lighting effects in galleries, museums, retail stores, and high-end commercial spaces.

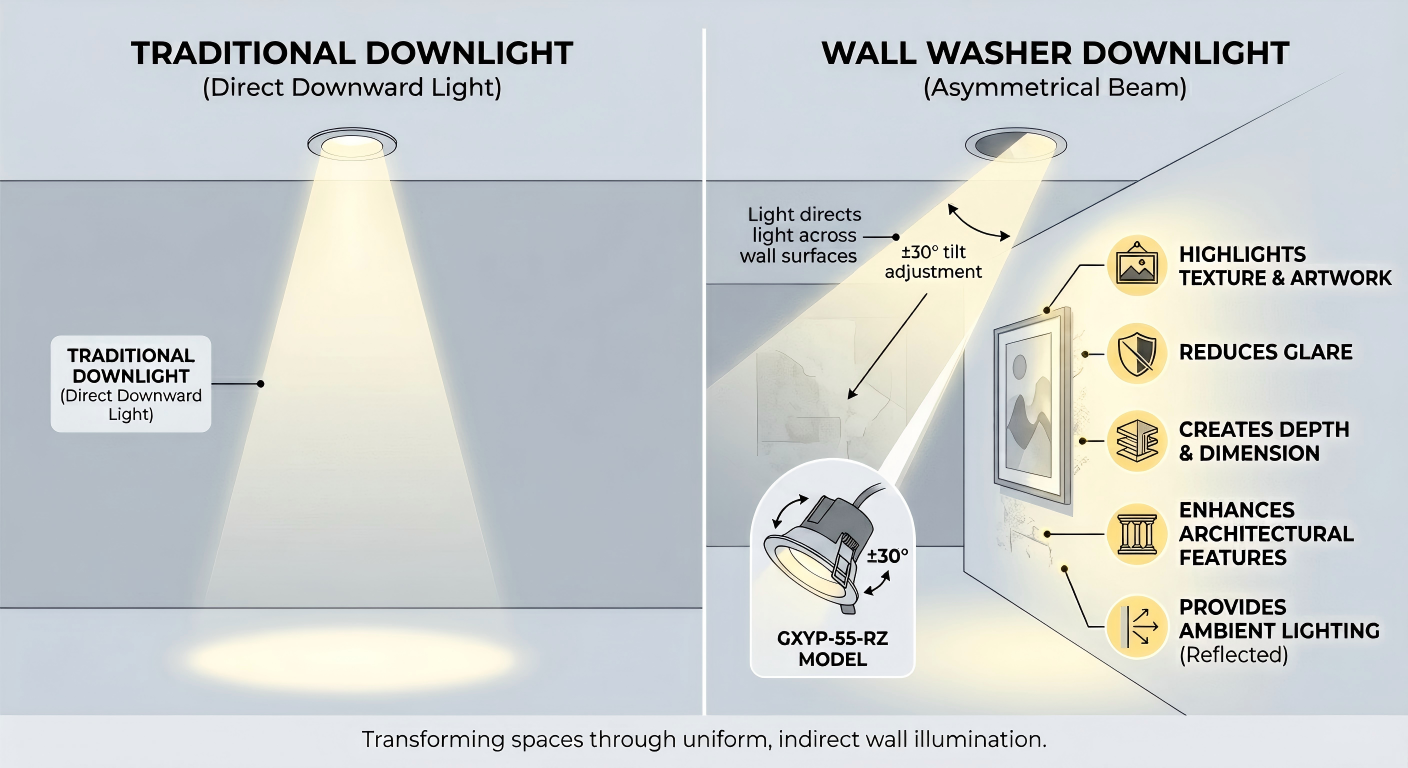

What is a Wall Washer Down Light?
Unlike traditional down light that cast light directly downward, a wall washer down light features a tilted, adjustable beam angle that directs light across wall surfaces. This creates a soft, uniform “wash” of light that:
- Highlights wall textures and artwork with even illumination
- Reduces glare by eliminating direct eye contact with the light source
- Creates depth and dimension through indirect lighting
- Enhances architectural features such as columns, alcoves, and decorative walls
- Provides ambient lighting through reflected light from walls
The GXYP-55-RZ model takes this concept further with ±30° tilt adjustment, allowing precise targeting of any wall feature or artwork with accurate directional lighting.

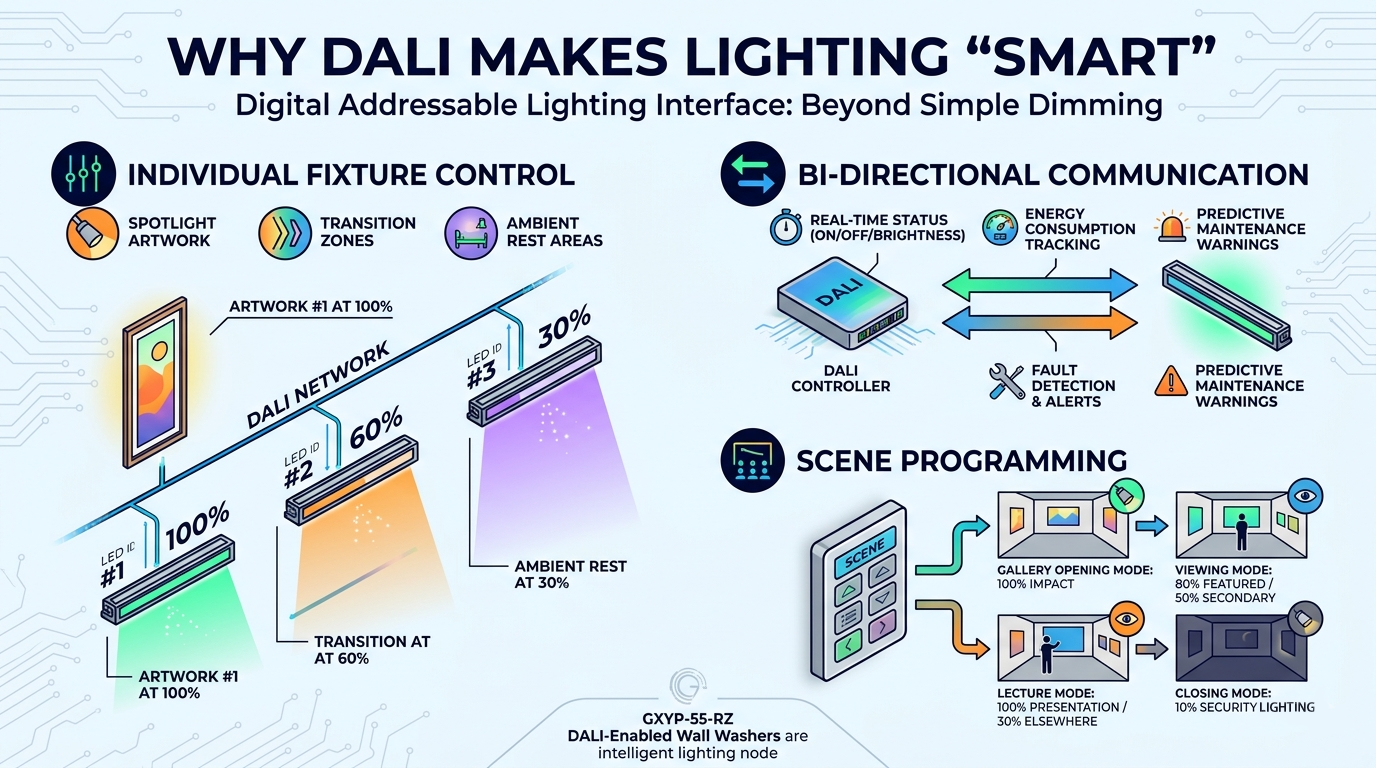

Why DALI Makes It “Smart”
Digital Addressable Lighting Interface: Beyond Simple Dimming
DALI (Digital Addressable Lighting Interface) transforms the wall washer from a passive fixture into an intelligent lighting node. Here’s what makes it revolutionary:
- Individual Fixture Control：Each GXYP-55-RZ has a unique digital address (up to 64 per DALI line), enabling
- Spotlight artwork #1 at 100% brightness
- Illuminate transition zones at 60%
- Create ambient lighting in rest areas at 30%
- All controlled independently from a single system
- Bi-directional Communication：Unlike traditional lighting, DALI fixtures “talk back” to the controller
- Real-time status monitoring (on/off/brightness level)
- Energy consumption tracking
- Fault detection and alerts
- Predictive maintenance warnings
- Scene Programming：Store up to 16 lighting scenes and recall them instantly
- Gallery Opening Mode: All fixtures at 100% for maximum impact
- Viewing Mode: Focused 80% on featured artwork, 50% on secondary pieces
- Lecture Mode: 100% on presentation area, 30% elsewhere
- Closing Mode: 10% security lighting throughout

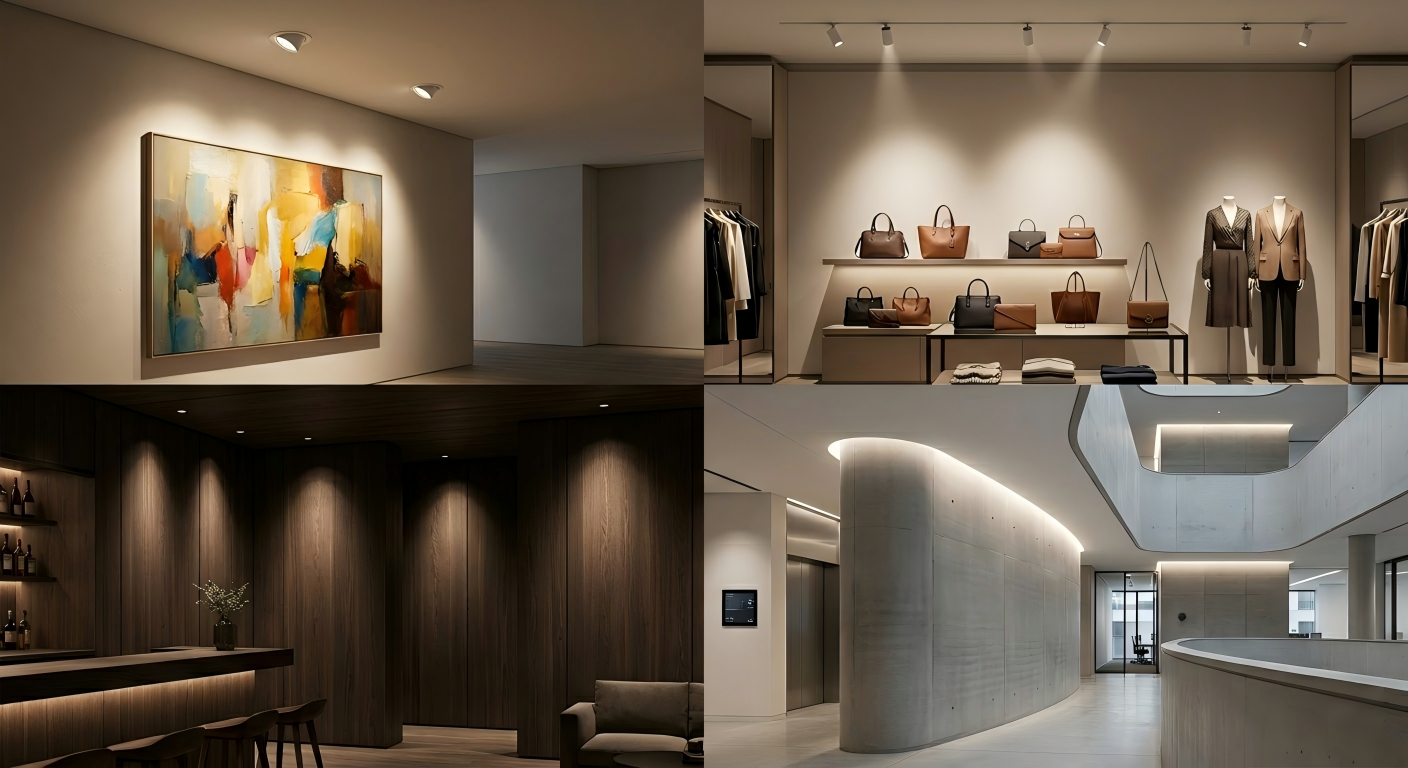

The Power of Adjustable Directional Lighting
Precision Beam Control for Every Application
The adjustable beam angle is what sets wall washer down lights apart from standard fixtures. The precise ±30° tilt adjustment delivers accurate, targeted wall washing for diverse scenarios:
Gallery & Museum Applications
- Small artworks (50×70cm): Tilt 40° for focused illumination
- Medium pieces (100×150cm): Tilt 35° for even coverage
- Large installations (150×200cm): Tilt 30° or use multiple fixtures for uniform lighting
- Precise tilt adjustment enables accurate targeting of artworks on flat wall surfaces
Retail Store Applications
- Highlight featured products on wall displays
- Create visual hierarchy with varying brightness levels
- Adjust as merchandise changes—no fixture replacement needed
- Draw customer attention to promotional areas
Hotel & Restaurant Applications
- Illuminate decorative walls and artwork
- Create warm, inviting ambiance through indirect lighting
- Highlight architectural features like stone walls or wood paneling
- Adjust for different times of day or events

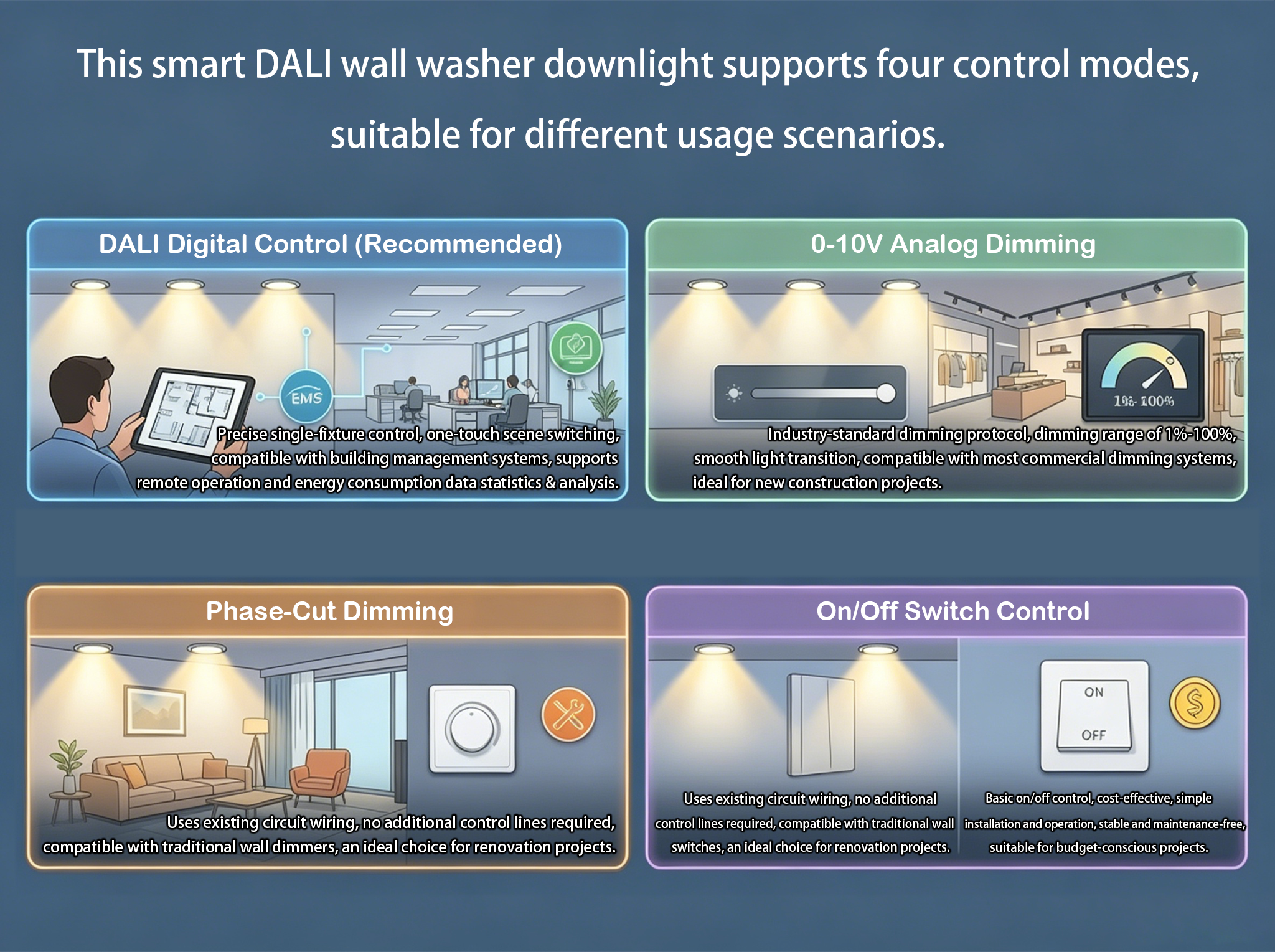

Intelligent Control: Beyond the Switch
Multiple Control Options for Maximum Flexibility
The Smart DALI Wall Washer supports four control methods:
- DALI Digital Control (Recommended)
- Single-fixture precision control
- Scene programming and recall
- Integration with building management systems
- Remote monitoring and management
- Energy reporting and analytics
- 0-10V Analog Dimming
- Industry-standard dimming protocol
- 1%-100% smooth dimming range
- Compatible with most commercial dimming systems
- Ideal for new construction projects
- Phase Cut Dimming
- Works with existing electrical wiring
- No additional control wiring needed
- Perfect for renovation projects
- Compatible with standard wall dimmers
- ON/OFF Switching
- Basic control for budget-conscious projects
- Simple installation and operation
- Reliable and maintenance-free
Technical Excellence: Ra>90 High CRI
Why Color Rendering Matters
With a Color Rendering Index (CRI) greater than 90, the GXYP-55-RZ accurately reproduces colors as they appear in natural sunlight:
Critical for Art Galleries:
- Paintings appear with true, vibrant colors
- Subtle color variations are clearly visible
- Reds, blues, and skin tones render accurately
- Meets museum-quality lighting standards
Essential for Retail:
- Clothing colors appear true to life
- Jewelry sparkles with natural brilliance
- Cosmetics show accurate shades
- Reduces customer returns due to color mismatch
Important for Hospitality:
- Food appears fresh and appetizing
- Interior design colors are faithfully represented
- Creates a premium, high-quality atmosphere
Energy Efficiency Meets Performance
9W Power, 810lm Output, 90lm/W Efficiency
The GXYP-55-RZ delivers impressive performance while minimizing energy consumption:
Compared to Traditional 50W Halogen:
- Energy savings: 82% reduction in power consumption
- Annual savings: Approximately $40 per fixture (based on 8 hours/day usage)
- Brightness: 810lm vs. 400lm halogen—double the light output
- Lifespan: 50,000 hours vs. 2,000 hours—25× longer life
Environmental Impact:
- Reduced carbon footprint
- Less frequent replacement = less waste
- No hazardous materials (mercury-free)
- Recyclable aluminum construction

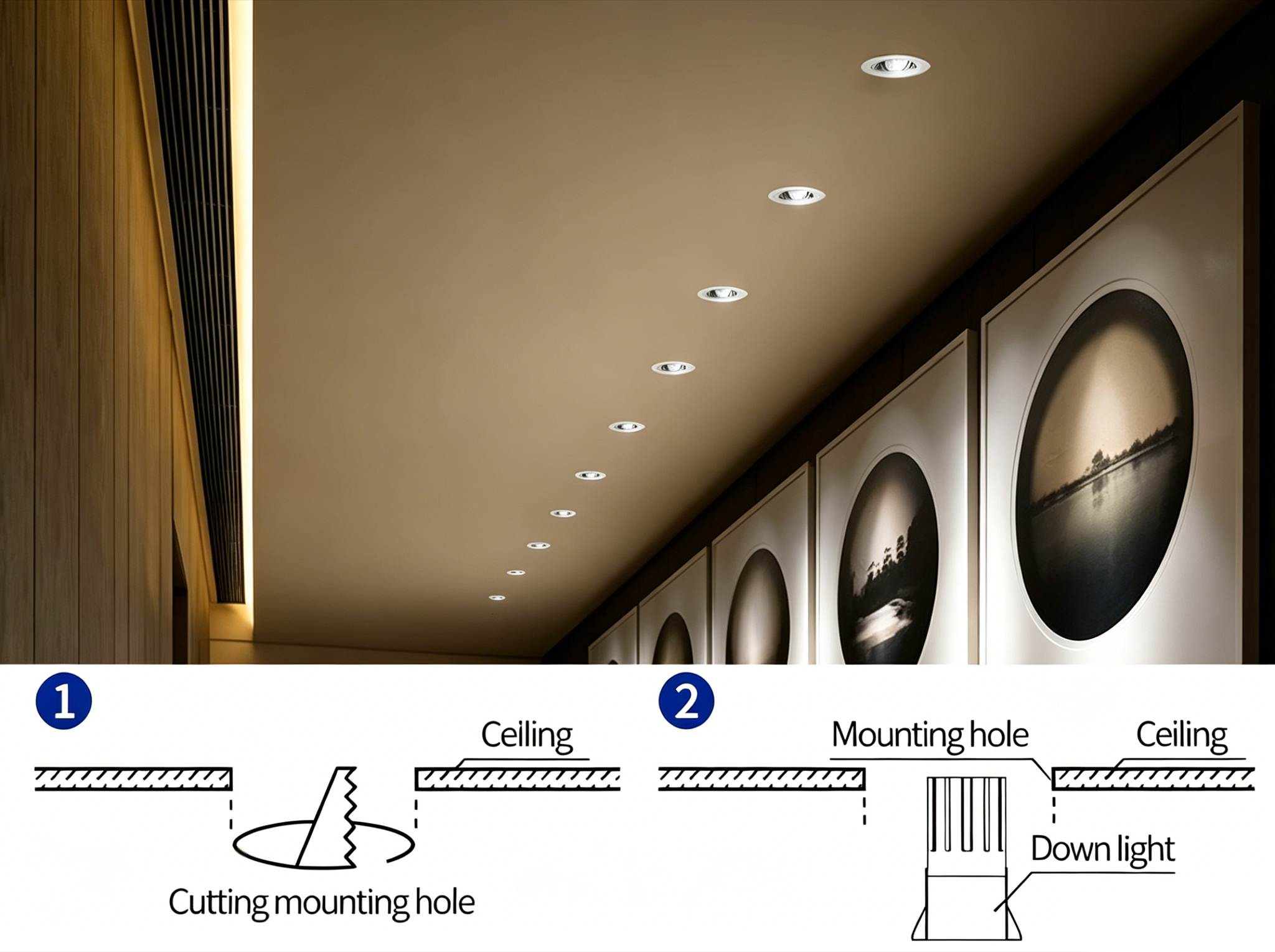

Installation Made Simple
Professional Results in Minutes
The GXYP-55-RZ is designed for quick, hassle-free installation:
Step 1: Cut Opening
Standard 55mm (Φ55mm) cutout size fits most ceiling types
Step 2: Wire Connection
DALI version: Connect DA/DA DALI bus (polarity-free)
0-10V version: Connect DIM+/DIM- signal wires
Phase Cut version: Standard line/neutral/ground connection
Step 3: Insert Fixture
Spring clips automatically secure the fixture flush with the ceiling
Step 4: Adjust Beam
Manually tilt the fixture within ±30° to target the desired wall area
Step 5: Commission (DALI only)
Use DALI commissioning tool to assign addresses and program scenes
Real-World Applications
Case Study 1: Contemporary Art Gallery
Challenge: A 500㎡ gallery needed flexible lighting to accommodate rotating exhibitions with varying artwork sizes and styles.
Solution: Installed 80 GXYP-55-RZ DALI wall washers with adjustable tilt beam angles: (1)Distance from wall: 60-80cm (2)Tilt angle: 30°-40° depending on artwork size (3)Spacing: 100-120cm for continuous wall washing
Results:
- Flexibility: Tilt angles adjusted for each new exhibition to fit different artworks
- Energy savings: 60% reduction vs. previous halogen system
- Visitor feedback: 95% rated lighting as “excellent” or “very good”
- Curator satisfaction: “The ability to highlight each piece individually transformed our exhibitions”
Case Study 2: Luxury Hotel Corridor
Challenge: A 5-star hotel wanted to create an upscale ambiance in 100 meters of corridor while highlighting decorative wall panels.
Solution: Installed 50 GXYP-55-RZ fixtures along both sides: (1)Tilt angle: 35° to wash decorative wall panels (2)Color temperature: 3000K warm white (3)DALI scene programming: Welcome (100%), Evening (70%), Night (30%)
Results:
- Ambiance: Transformed from “functional” to “luxurious”
- Guest satisfaction: Lighting quality mentioned in 40% of positive reviews
- Energy savings: $3,000 annually vs. traditional system
- Maintenance: Zero lamp replacements in first 3 years
Case Study 3: Fashion Retail Flagship Store
Challenge: A high-end fashion retailer needed to highlight wall-mounted displays while maintaining flexibility for seasonal merchandising changes.
Solution: Installed 120 GXYP-55-RZ fixtures throughout the store: (1)Adjustable tilt beam angles for different display configurations (2)Ra>90 CRI for accurate color rendering (3)DALI control for different zones and times of day
Results:
- Sales impact: 15% increase in featured product sales
- Flexibility: Staff can adjust lighting tilt as displays change
- Brand image: “The lighting makes our store feel like a gallery”
- ROI: System paid for itself in 18 months through energy savings and increased sales

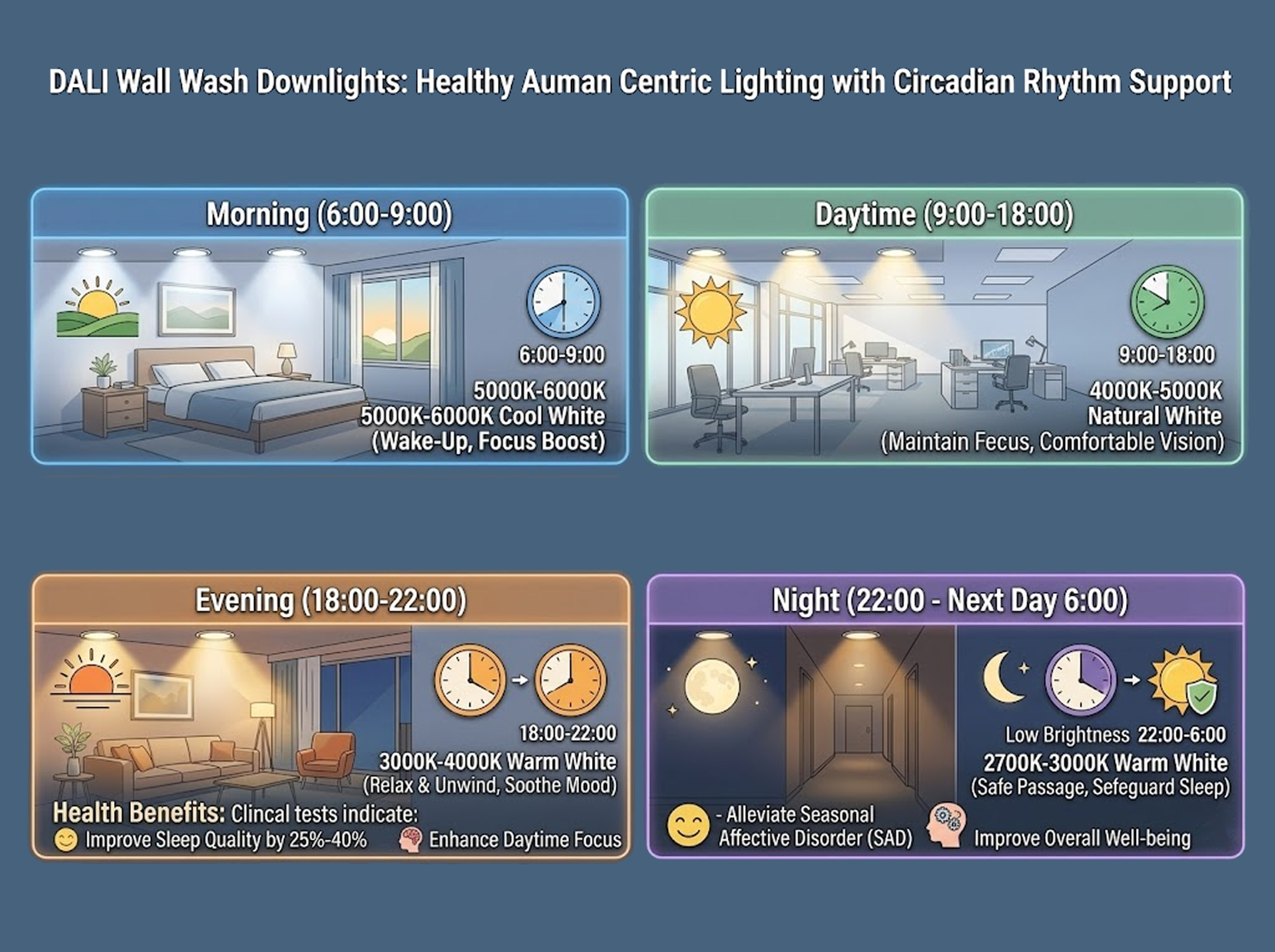

Circadian Rhythm & Healthy Lighting
Beyond Illumination: Supporting Human Well-being
When equipped with tunable white capability, the Smart DALI Wall Washer can support circadian rhythm lighting:
Morning (6:00-9:00): Gradually increase to 5000K-6000K cool white to promote alertness
Daytime (9:00-18:00): Maintain 4000K-5000K natural white for optimal visual comfort
Evening (18:00-22:00): Transition to 3000K-4000K warm white to support relaxation
Night (22:00-6:00): Dim to 2700K-3000K warm white at low intensity for safety without sleep disruption
Health Benefits:
- Improved sleep quality (25%-40% in studies)
- Enhanced daytime alertness and productivity
- Reduced seasonal affective disorder symptoms
- Better overall well-being and mood

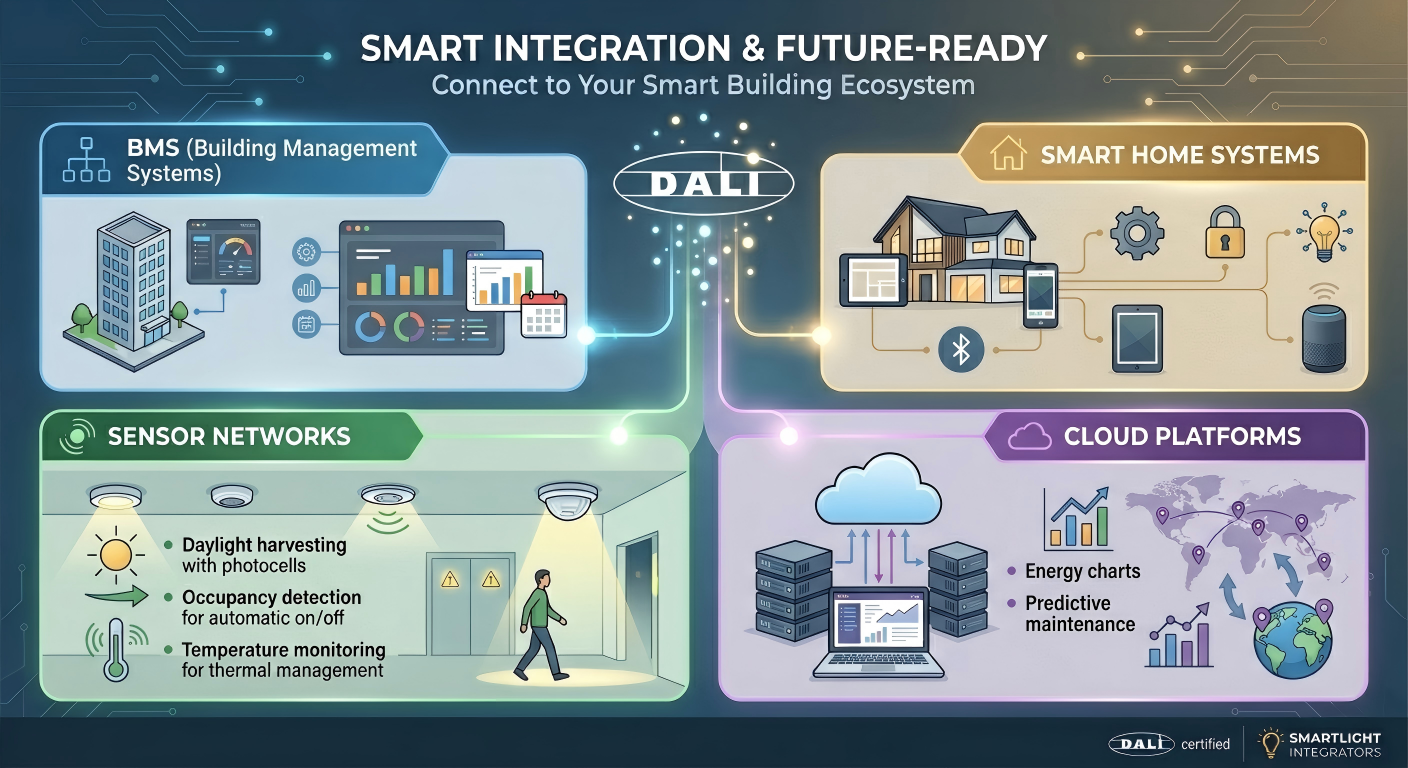

Smart Integration & Future-Ready
Connect to Your Smart Building Ecosystem
The DALI interface enables seamless integration with:
Building Management Systems (BMS)
- Centralized control of all building lighting
- Energy monitoring and reporting
- Automated scheduling and occupancy-based control
Smart Home Systems
- Apple HomeKit, Google Home, Amazon Alexa compatibility (via DALI gateway)
- Voice control: “Alexa, set gallery to viewing mode”
- Mobile app control from anywhere
Sensor Networks
- Daylight harvesting with photocells
- Occupancy detection for automatic on/off
- Temperature monitoring for thermal management
Cloud Platforms
- Remote monitoring and control
- Predictive maintenance alerts
- Energy analytics and optimization
- Multi-site management for chains and franchises
GXYP-55-RZ Technical Specifications
| Parameter | Specification | Project Benefit |
| Power / Luminous | 9W / 810lm (90lm/W) | High efficiency, 82% energy saving vs Halogen |
| Color Rendering Index | Ra > 90 (CRI 97 optional) | Museum-grade color accuracy for artworks |
| Beam Adjustment | ±30° Manual Tilt | Flexible targeting on wall displays & textures |
| Dimming Control | DALI / 0-10V / Phase Cut | Future-ready integration with smart BMS/Ecosystem |
| Cutout Size | Φ55mm | Standard sizing for seamless architectural integration |
Why Choose Smart DALI Wall Washer LED Down Light?
For Gallery & Museum Curators:
- Professional-grade Ra>90 color rendering
- Adjustable tilt beam angles for any artwork size
- Individual fixture control for exhibition flexibility
- Energy efficiency reduces operating costs
For Retail Store Designers:
- Highlight products with precision via tilt adjustment
- Adjust as merchandise changes
- Create visual hierarchy and focal points
- Enhance brand image with quality lighting
For Hospitality Professionals:
- Create upscale ambiance through indirect lighting
- Flexible tilt adjustment and control for different times and events
- Energy savings reduce operating expenses
- Long lifespan minimizes maintenance
For Architects & Lighting Designers:
- Precise tilt control over light distribution
- Integration with smart building systems
- Future-proof DALI technology
- Aesthetic “invisible” lighting effect

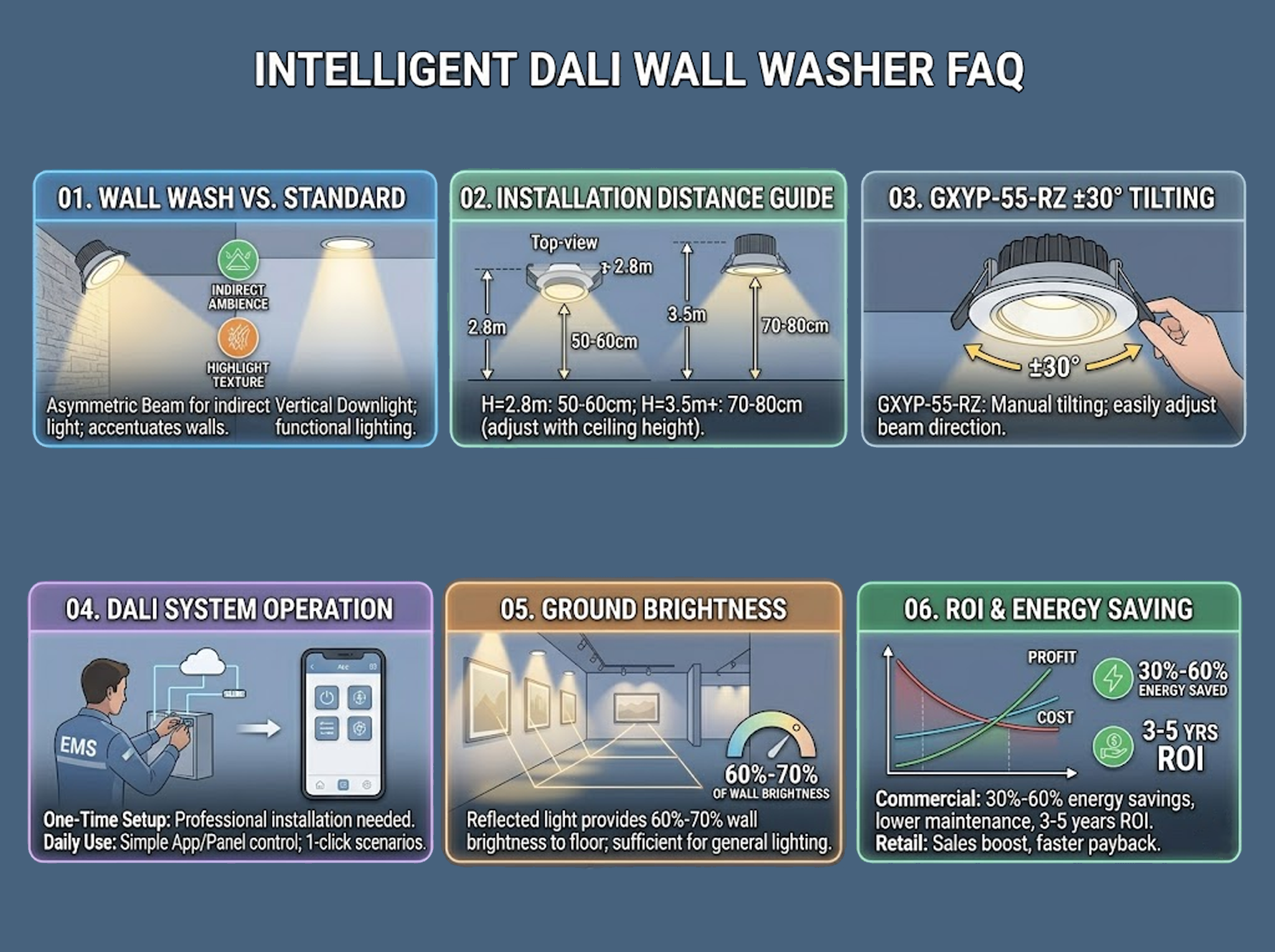

Frequently Asked Questions
Q: What’s the difference between a wall washer and a regular down light?
A: A wall washer has an adjustable, tilted beam that directs light across wall surfaces, creating indirect ambient lighting and highlighting wall features. Regular down lights cast light straight down for task illumination.
Q: How far from the wall should I install wall washers?
A: Typically 50-80cm (20-32 inches) from the wall, depending on ceiling height. For 2.8m ceilings, use 50-60cm; for 3.5m ceilings, use 70-80cm.
Q: Can I adjust the beam angle after installation?
A: Yes! The GXYP-55-RZ features manual ±30° tilt adjustment. Simply reach up and tilt the fixture to adjust the lighting range as needed.
Q: Do I need special training to use DALI control?
A: End users don’t need training—just press scene buttons or use the app. Initial DALI commissioning requires a technician with DALI tools, but this is a one-time setup.
Q: Will wall washing make the floor too dark?
A: No. Light reflected from the wall illuminates the floor at approximately 60-70% of the wall brightness, which is sufficient for corridors, galleries, and residential spaces.
Q: What’s the return on investment for DALI systems?
A: Typical ROI is 3-5 years for commercial projects through energy savings (30-60%), reduced maintenance, and improved space utilization. Retail projects may see faster ROI through increased sales.
Conclusion: Lighting That Adapts to You
The Smart DALI Wall Washer LED Down Light represents the convergence of three critical lighting trends:
- Precision control through adjustable tilt directional beams
- Intelligence via DALI digital communication
- Efficiency with 9W LED technology and 50,000-hour lifespan
Whether you’re illuminating priceless artwork in a museum, creating an inviting atmosphere in a hotel, or showcasing products in a retail environment, this fixture provides the flexibility, quality, and control that modern spaces demand.
The future of lighting isn’t just about brightness—it’s about adaptability, intelligence, and human-centric design. With the Smart DALI Wall Washer LED Down Light, that future is here today.
