Product Brief: The G2406C is a 20W LED Down Light crafted from aerospace-grade aluminum alloy. It delivers high brightness of 1600lm with a high color rendering index (Ra＞90). Featuring an IP20 protection rating, it is suitable for dry indoor environments. Compared with traditional GU10 Down Lights, the G2406C boasts remarkable advantages in luminous efficacy, service life and dimming compatibility, offering a more professional lighting solution for commercial spaces and residential settings.
Structured Summary
Product Core Differences: GU10 Down Light vs G2406C LED Down Light
- Luminous efficacy: 57lm/W vs 68-70lm/W
- Service life: 2,000-25,000 hours vs 50,000 hours
- Heat dissipation: concentrated heat generation of bulbs vs Integrated heat dissipation
Advantages of G2406C
- High output of 20W/1600lm, high color rendering (Ra＞90), native compatibility with 4-level dimming, DALI intelligent control
- Application Scenarios: New construction and renovation projects for commercial retail, hotel catering and office spaces
- Selection Recommendation: Choose the integrated G2406C LED Down Light for long-term use; opt for GU10 bulb replacement for short-term use or budget-limited projects.
Technical Specifications Comparison
| Item | G2406C LED Down Light (IAN LIGHTING) | Traditional GU10 Down Light |
| Model No. | G2406C | – |
| Product Dimensions | D106mm × H98mm | – |
| Cut out Size | D95mm | – |
| Housing Material | Aluminum | Plastic or Die-cast Aluminum |
| LED Power | 20W | 35W-50W (Halogen) / 5W-7W (LED Bulb) |
| Luminous Flux | 1600lm | 250-400lm (Halogen) / 350-500lm (LED Bulb) |
| Luminous Efficacy | 57lm/W | 8-12lm/W (Halogen) / 50-70lm/W (LED Bulb) |
| Color Rendering Index | Ra >90 | Ra 80-100 (Halogen) / Ra 80-90 (LED Bulb) |
| Color Temperature | 27000K-6500K | 2700K-6500K (Bulb-dependent) |
| Input Voltage | AC 85-265V | AC 220-240V |
| Ingress Protection | IP20 | Generally IP20 |
| Beam Angle | 15° / 24° / 38° | Bulb-dependent (Common: 24°/36°/60°) |
| Housing Color | White / Black | – |
| Reflector Color | White / Black / Chrome | – |
| Dimming Method | ON/OFF / DALI / 0-10V / Phase-cut Dimming | Subject to Bulb Compatibility |
| Installation | Recessed with Spring Clips | – |
| LED Lifespan | 50,000 Hours | – |
| Warranty Period | 3-5 Years | Usually 1 Year |
| Replacement Method | – | Replaceable Bulb |

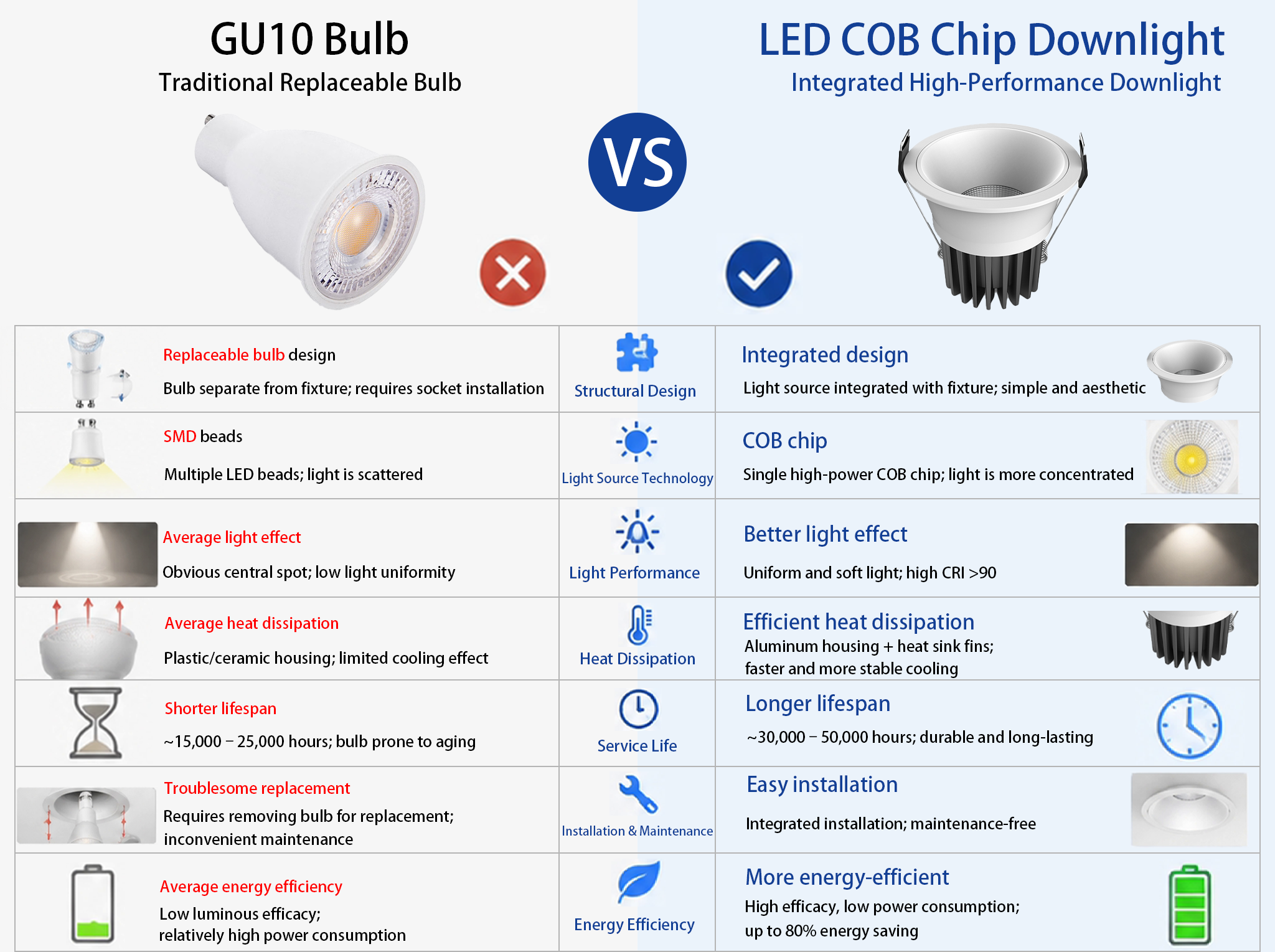

GU10 Down Light vs LED Down Light: Five Core Differences
Difference 1: Luminous Efficacy & Energy Consumption
Pain Points of GU10 Down Lights:
Traditional GU10 halogen bulbs deliver a low luminous efficacy of only 8-12lm/W. A 50W halogen bulb produces merely 400-500lm, featuring high energy consumption and excessive heat generation. Even with GU10 LED bulb replacements, luminous efficacy can hardly exceed 70lm/W due to constraints in bulb size and heat dissipation.
Advantages of G2406C LED Down Light:
Its integrated design incorporates a high-power LED module and optimized heat-dissipation structure. The 20W model outputs 1600lm with an overall luminous efficacy of 57lm/W. Compared with 50W GU10 halogen Down Lights, it saves 44% energy and delivers over 3 times higher brightness, greatly cutting electricity costs.
Difference 2: Service Life & Maintenance Costs
Pain Points of GU10 Down Lights:
GU10 halogen bulbs have a service life of only 2,000 hours, requiring frequent replacements and raising maintenance costs. Ceilings in commercial spaces are generally 3-4 meters high; bulb replacement demands ladders or scaffolding, resulting in high labor costs.
Advantages of G2406C LED Down Light:
The LED light source lasts 50,000 hours, equivalent to 17 years of 8-hour daily use, offering virtually maintenance-free operation. The integrated design prevents poor contact caused by loose bulbs. Free replacement of core components is available for faults within the 3-year warranty period.
Difference 3: Dimming Compatibility & Intelligent Control
Pain Points of GU10 Down Lights:
GU10 bulbs show inconsistent dimming compatibility. Some LED bulbs are incompatible with existing dimmers, causing flickering or failure to dim. Replacing dimmers incurs extra costs.
Advantages of G2406C LED Down Light:
It natively supports four dimming modes: ON/OFF, DALI, 0-10V and phase-cut dimming, with pre-factory compatibility testing to ensure flicker-free smooth dimming. The DALI version can connect to smart lighting systems for zone-based, time-scheduled control and scene mode switching.
Difference 4: Optical Performance & Lighting Effect
Pain Points of GU10 Down Lights:
Constrained by standard bulb dimensions, GU10 bulbs have limited optical design space, leading to uneven light spots and obvious stray light. Mixed use of bulbs from different brands causes inconsistent color temperature and color rendering, impairing overall spatial aesthetics.
Advantages of G2406C LED Down Light:
Adopting professional secondary optical design, it provides precise beam angles of 15°/24°/38° with even light spots free of stray light. Featuring Ra＞90 high color rendering index, its three calibrated color temperatures (3000K/4000K/6000K) ensure uniform color temperature and accurate color rendering for multiple lights in the same space.
Difference 5: Heat Dissipation & Safety
Pain Points of GU10 Down Lights:
Heat concentrates at the base of GU10 bulbs, easily deforming and aging plastic housings and posing fire risks. Heat accumulation in enclosed ceilings accelerates lumen depreciation, making actual service life much shorter than nominal values.
Advantages of G2406C LED Down Light:
Aerospace grade aluminum housing with fin-type heat-dissipation structure keeps LED junction temperature below 75°C, ensuring lumen depreciation less than 30% over 50,000 hours. With IP20 protection grade and flame-retardant materials, it passes CCC safety certification for long-term reliable use.
Application Scenario Recommendations & FAQ
Scenarios for Choosing G2406C LED Down Light
1.Commercial Retail: High brightness and high CRI lighting required for clothing stores, jewelry shops and cosmetic counters.
2.Hotel & Catering: Dimming control and ambient lighting needed for lobbies, restaurants and meeting rooms.
3.Office Spaces: Even illumination and intelligent control for open plan offices and conference rooms.
4.New Construction Projects: Unified design and installation with focus on long term stability and low maintenance costs.
Scenarios for Choosing GU10 Down Light
1.Home Renovation: Existing GU10 fixtures with limited budget, only simple bulb replacement required.
2.Temporary Lighting: Short term usage areas with low requirements for lifespan and luminous efficacy.
3.Special Needs: Frequent adjustments of color temperature or beam angle for greater flexibility.
Frequently Asked Questions (FAQ)
Q: Can GU10 down lights be directly replaced with G2406C?
A: Recutting is required. Standard cut out size for GU10 down lights is D68-75mm, while G2406C needs a D95mm cut out. However, its 106mm outer diameter covers original cut out marks for seamless replacement.
Q: Is the 20W power of G2406C too bright?
A: 20W is suitable for commercial spaces with 3-4m ceiling height. For residential areas under 2.8m ceiling height, lower wattage models of the same series are available, or brightness can be adjusted from 30% to 100% via dimmers.
Q: Which is more cost effective, GU10 LED bulbs or integrated LED down lights?
A: Integrated LED down lights are more economical for long term use. Despite higher initial investment, the price difference can be recovered within 2-3 years through energy savings, reduced replacement labor and maintenance costs, with continuous savings afterwards.
Q: Does G2406C support smart control?
A: Yes. The DALI dimmable version can be connected to smart lighting systems for mobile APP control, voice control, timing switching and scene modes. The 0-10V version is compatible with most smart dimming modules.
About IAN LIGHTING:
IAN LIGHTING is a professional LED lighting manufacturer with over 19 years of industry experience. With its own factory, it focuses on the high-end commercial lighting sector. Its products cover a full range of LED lighting products, including recessed spotlights, track lights, panel lights, and chandeliers. From R&D and production to quality inspection, the entire process is strictly controlled, and all products have passed international certifications such as CE, RoHS, and BIS. Leveraging its mature technical capabilities and stable supply chain system, we provide customers with customized, stable, and reliable one-stop lighting solutions to help projects be implemented efficiently.
If you have any further questions, welcome to contact us rena@ianled.com for the best suitable lighting solution you need.
