Engineering High-Performance Indoor Gyms: A Technical Guide for Fitness Facility Lighting

Sep 3, 2026 | Last Updated Sep 3, 2026

Modern commercial indoor gyms demand a sophisticated approach to architectural lighting design. Beyond basic general illumination, lighting within dedicated fitness spaces directly governs athlete safety, optical focus, visual ergonomics during floor exercises, and overall member motivation. A poorly engineered gym lighting setup creates harsh screen reflections on treadmill consoles, blinds weightlifters lying flat on bench presses, and induces eye fatigue during intensive training sessions.

For General Contractors, Mechanical, Electrical, and Plumbing (MEP) engineers, and commercial gym developers, executing a comprehensive interior fitness facility lighting system introduces complex technical challenges. A single workout facility requires high-efficiency zero-flicker fixtures for high-speed treadmill zones, indirect anti-glare systems for heavy bench-pressing, soft low-glare perimeter lighting for dedicated stretching floors, and dynamic DMX-controlled lighting for high-intensity group aerobics studios. Sourcing these specialized requirements from fragmented suppliers routinely leads to color mismatches, driver incompatibilities, and installation delays.

With 19 years of verified manufacturing and custom engineering expertise, IAN Lighting provides an integrated, single-source architectural lighting ecosystem. Below is an exhaustive technical whitepaper detailing our engineered lighting solutions designed specifically for core indoor workout environments.

Zone 1: Treadmill, Elliptical & High-Speed Cardio Zones

  • The Site & Environmental Challenge:In cardio areas, members spend prolonged periods on treadmills, stationary bikes, and ellipticals, maintaining intense visual focus on built-in digital consoles or mounted media screens while moving at high speeds. Low-grade commercial LEDs produce invisible high-frequency stroboscopic flicker that induces visual fatigue, dizziness, and motion disorientation. Furthermore, direct overhead glare reflects harshly onto digital console touchscreens, obscuring performance metrics and heart-rate tracking.
  • The IAN Lighting Technical Solution:We deploy high-efficiency architectural linear profile runs and recessed troffers equipped with micro-prismatic optical diffusers. These luminaires project a broad, uniform light distribution that helps minimize distracting reflections on treadmill consoles while maintaining a unified glare rating of UGR<19.
  • Driver & Optical Topology:All cardio luminaires are powered by industrial-grade, ripple-free constant-current drivers designed to minimize temporal light modulation and support low-flicker performance, with driver performance verified through relevant testing. Calibrated to an invigorating 4000K-5000K neutral daylight spectrum with high color accuracy (CRI>90), these fixtures stimulate alertness and visual clarity across the cardio floor.

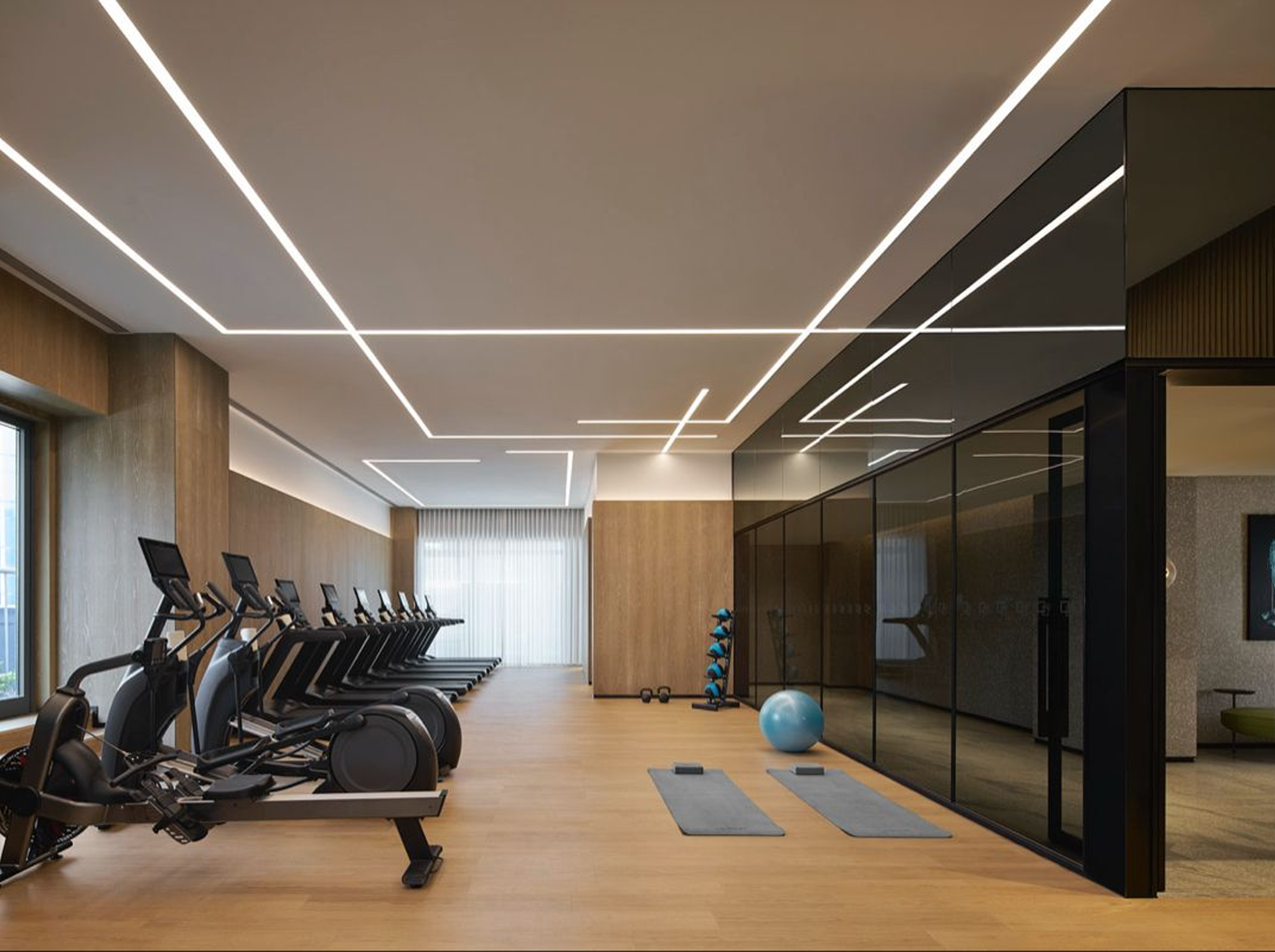

Zero-flicker-treadmill-and-cardio-zone-architectural-linear-lighting-for-commercial-gyms

Zone 2: Heavy Strength, Free Weight & Bench Press Zones

  • The Site & Visual Ergonomics Challenge:The free weight and heavy strength zone presents a severe optical challenge that standard commercial fixtures fail to address: lifters spend a significant portion of their training lying flat on their backs on bench presses or incline mats, looking directly up at the ceiling. Standard downlights or bare linear profiles positioned overhead project blinding light beams straight into the lifter’s eyes, causing acute glare, eye strain, and potential safety risks when handling heavy barbells overhead.
  • The IAN Lighting Technical Solution:We engineer indirect, wall-washing, and deep-recessed architectural linear lighting layouts specifically designed for strength zones. By utilizing architectural perimeter coves, wide-beam indirect optics, and high-transmittance diffusers, light is bounced smoothly off ceiling surfaces to create a fully diffuse, ambient environment achieving an extraordinary glare rating of UGR<16.
  • Precision Placement & Spectrum:Where direct overhead spotlights are required between rack positions, we deploy deep-set baffle downlights with 45-degree beam cutoffs. Calibrated to a warm-neutral 3500K-4000K spectrum, these fixtures offer crisp muscle-definition rendering and exceptional optical fidelity (CRI>95, R9>80) without casting harsh facial shadows or blinding lifters.

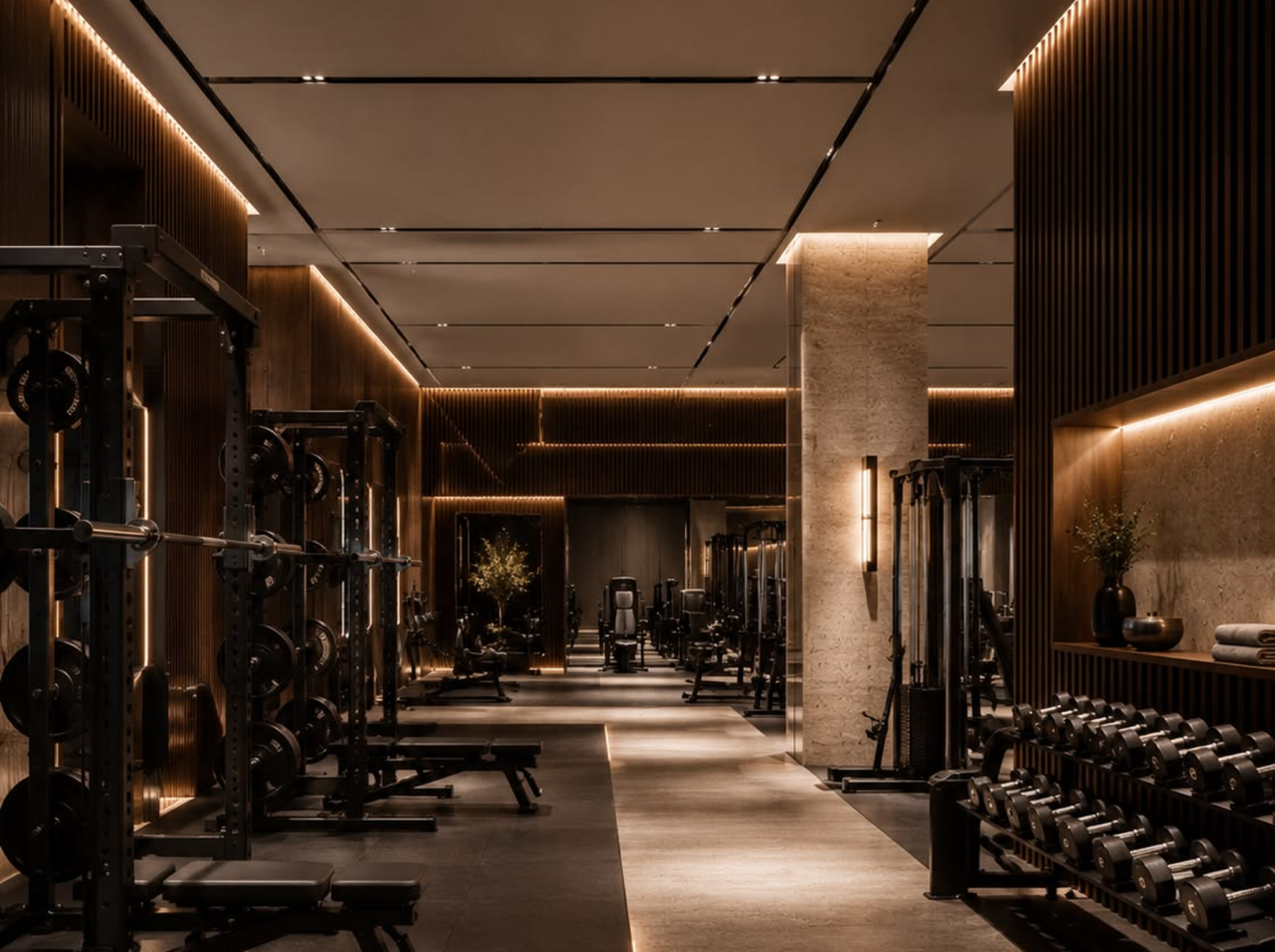

Anti-glare-free-weight-zone-indirect-lighting-for-commercial-gyms-UGR16

Zone 3: Mat Work, Stretching & Body Mobility Recovery Suites

  • The Site & Ambiance Challenge:Dedicated stretching zones, mat floors, and post-workout mobility recovery suites require a completely different visual atmosphere from high-intensity training floors. Members perform ground-level floor work, core mobility drills, and guided breathing exercises while positioned at low angles or lying on their backs. High-intensity ceiling fixtures create severe discomfort and break mental focus in these relaxation and recovery spaces.
  • The IAN Lighting Technical Solution:We engineer soft, indirect ambient lighting systems featuring continuous architectural perimeter coves and wall-mounted indirect linear channels. Light washes smoothly down textured walls or perimeter baffles, providing comfortable ambient light without a single visible light source in the user’s line of sight.
  • Full Spectrum & Deep Dimming:We utilize warm 2700K-3000K color temperatures with high color rendering (CRI>95) to create a warmer, more calming atmosphere for stretching, recovery and cool-down sessions. Accent spotlights are equipped with deep honeycomb louvers and magnetic track mounting, allowing gym managers to adjust beam angles effortlessly. Integrated with 0-10V or DALI dimming drivers, illumination levels can be lowered smoothly down to 1% for quiet recovery sessions.

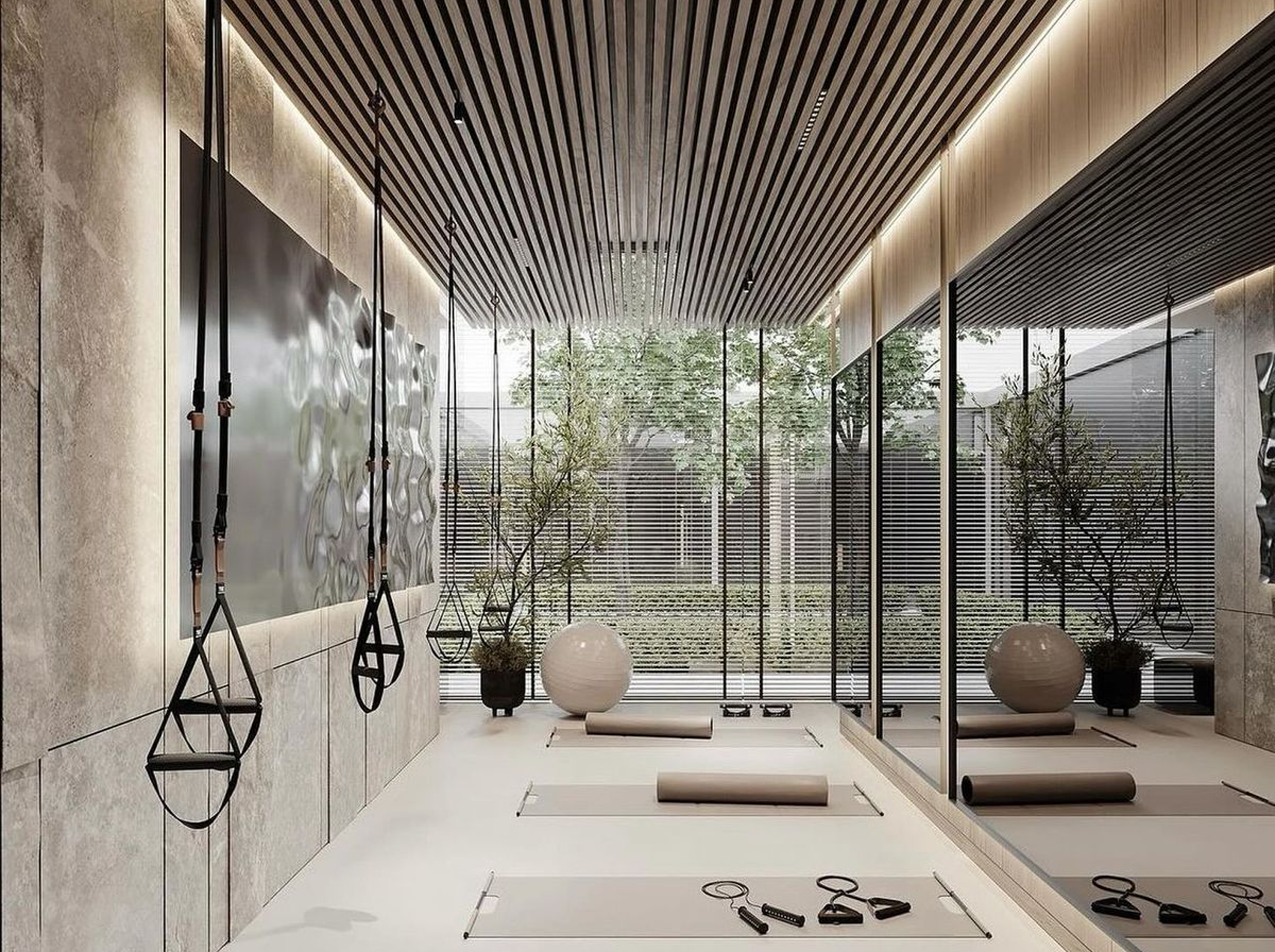

Soft-indirect-ambient-lighting-for-gym-stretching-and-recovery-zones

Zone 4: High-Energy Aerobics, Functional HIIT & Group Fitness Studios

  • The Site & Dynamic Control Challenge:Group exercise rooms, functional HIIT training spaces, and aerobic studios rely heavily on dynamic, theatrical lighting to drive energy, music synchronization, and instructor command. The lighting system must seamlessly transition between high-visibility instructional setups, pulse-syncing light shows during intense intervals, and low-lit cool-down periods, all while remaining simple for instructors to operate.
  • The IAN Lighting Technical Solution:We manufacture custom dynamic lighting packages combining Tunable White (2700K to 6500K) linear profiles with low-voltage RGBW architectural accent channels. Recessed into ceilings, walls, or acoustic baffles, these linear runs form striking geometric light frames and ambient outlines.
  • Smart Protocol Integration:Native integration with DALI-2 (IEC 62386) and DMX512/RDM control protocols allows facility managers to pre-program customized lighting scenes (“Warm-Up,” “HIIT Sprint,” “Aerobic Pulse,” or “Cool Down”). Instructors can transition scenes with 0.1% smooth, flicker-free deep dimming at the touch of a wall-panel button, turning routine group classes into immersive workout experiences.

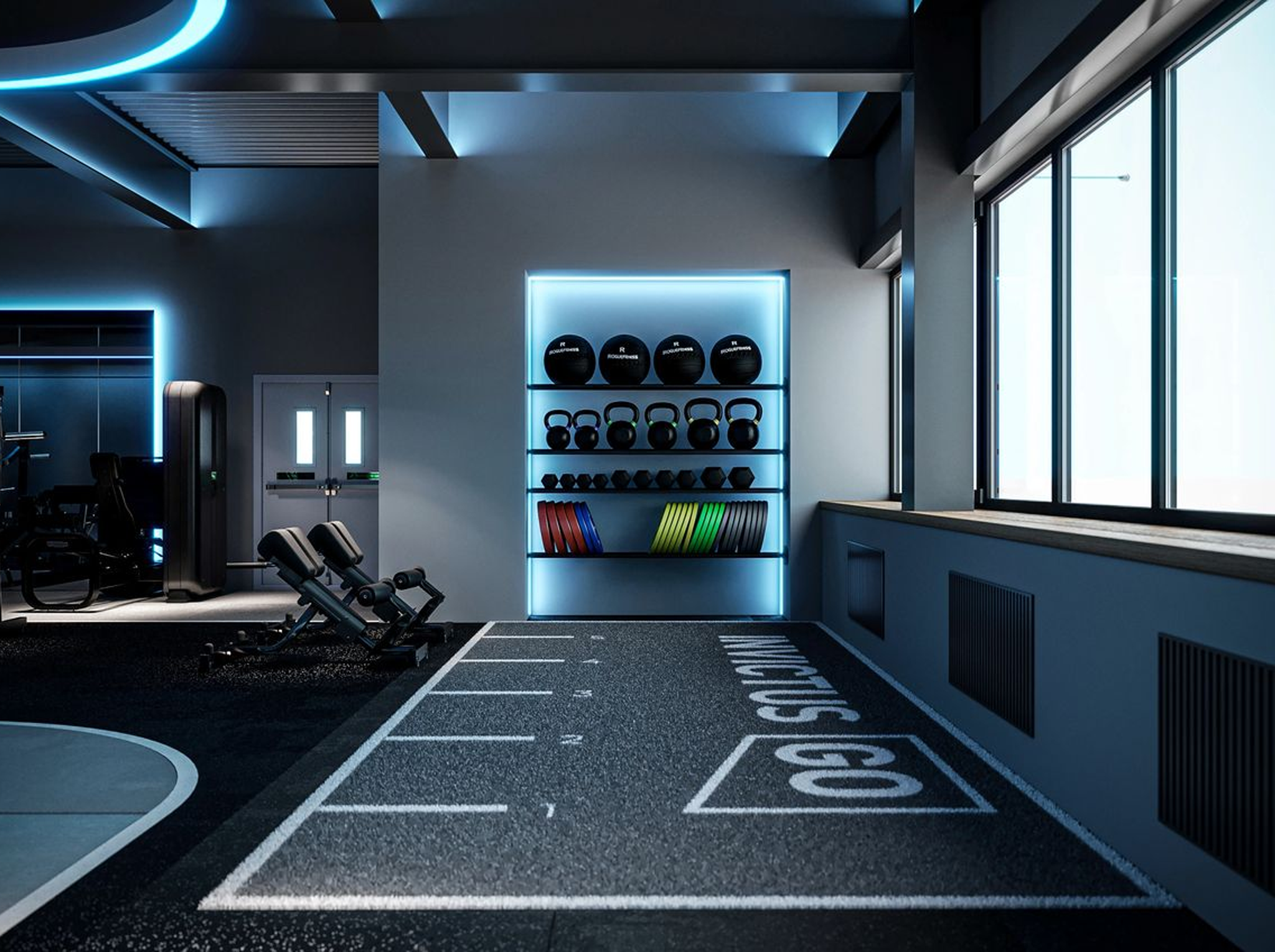

Dynamic-RGBW-DMX-controlled-aerobics-and-group-fitness-studio-lighting

The IAN Lighting Advantage: Reliable Quality & Seamless Handover

Commercial gym projects require dependable lighting products that are easy to install, visually comfortable, and built for heavy daily use. IAN Lighting works closely with general contractors, project managers, and distributors to deliver hassle-free interior gym lighting packages.

  • Contractor-Friendly Installation:Our linear profiles and fixtures are engineered with straightforward mounting hardware and clear wiring guides, allowing local electrical teams to assemble and connect systems quickly on site.
  • Consistent Quality & Visual Comfort:Every production batch undergoes strict quality inspections to ensure uniform color temperatures, flicker-free driver performance, and long-lasting durability across all workout zones.
  • Flexible Customization & Fast Support:We offer customizable profile lengths, color temperatures, and dimming options tailored to your gym layout, backed by prompt technical support for your project inquiries.
  • One-Stop Factory Supply:Save time and logistics costs by consolidating your entire workout lighting package—from treadmill linear lights and anti-glare strength downlights to soft recovery coves—directly under one reliable manufacturer.

Submit Your Gym Layout for a Custom Quote

Streamline your indoor gym lighting project with a reliable factory partner. Contact the IAN Lighting team today at 📩 rena@ianled.com. Send us your gym floor plan and project specifications to receive a fast commercial quotation and customized product recommendations!
