Product Brief: The Solar Blue Fire Light features an aerospace-grade aluminum-magnesium alloy body, equipped with a CREE LED light source and a monocrystalline silicon solar panel. Power is available from 70W to 120W, with a luminous efficacy of up to 110lm/W. An integrated lithium iron phosphate battery, combined with an intelligent power control system, provides full-power illumination for the first 4 hours, automatically adjusting brightness to ensure all-night operation. Designed for urban roads, highways, industrial areas, and other similar scenarios, its 7-12 meter installation height accommodates various road widths.
Structured Summary
Product Name: Solar Blue Fire Light LED Street Lamp
Key Features: Aluminum-magnesium alloy body, CREE LED, monocrystalline silicon solar panel, lithium iron phosphate battery, intelligent power control
Technical Parameters: 70W-120W power selectable, 7,700-13,600lm luminous flux, 7-12m installation height
Lighting Mode: Full power for the first 4 hours, then intelligently reduces power to ensure all-night operation
Applicable Scenarios: Urban roads, highways, industrial areas, ports and docks
Competitive Advantages: Lightweight design, high-efficiency charging, intelligent energy saving, 3-year warranty
Technical Specifications
Brand: IAN Lighting
Product Model: BCT-OLB2.0 Series
Lamp Body Material: Aluminum Magnesium Alloy
Lamp Body Dimensions: 508mm × 278mm × 120mm
Light Source Type: CREE LED Chip
Optical System: PC Outdoor Optical Lens
Solar Panel Type: Mono-crystalline Silicon
Installation Method: Pole Mounting
70W Specifications:
Solar Panel Power: 5V/135W (Mono-crystalline Silicon)
LED Light Source Power: 70W
Luminous Flux Output: 7,700lm
Battery Capacity: 3.2V/140Ah (±5Ah) (Lithium Iron Phosphate)
Recommended Installation Height: 7-8 meters
Recommended Installation Spacing: 35-45 meters
80W Specifications:
Solar Panel Power: 5V/160W Mono-crystalline Silicon
LED Light Source Power: 80W
Luminous Flux Output: 8,000lm
Battery Capacity: 3.2V/160Ah (±5Ah) Lithium Iron Phosphate
Recommended Installation Height: 8-10 meters
Recommended Installation Spacing: 40-50 meters
120W Configuration Parameters:
Solar Panel Power: 5V/180W Monocrystalline Silicon
LED Light Source Power: 120W
Luminous Flux Output: 13,600lm
Battery Capacity: 3.2V/200Ah (±5Ah) Lithium Iron Phosphate
Recommended Installation Height: 10-12 meters
Recommended Installation Spacing: 40-50 meters
Lighting Mode: Full power lighting for the first 4 hours, intelligent power control for subsequent periods
Protection Rating: IP65
Operating Temperature: -20℃ ~ +60℃
Lifespan: 50,000 hours for LED light source, 2,000 battery cycles
Warranty Period: 3-year standard warranty
Product Structure Features
- Aluminum-Magnesium Alloy Lamp Body:
Made of aluminum-magnesium alloy through die casting, combining lightweight and high strength. Compared to traditional aluminum alloys, it reduces weight by 30% and increases tensile strength by 20%. The anodized surface provides excellent corrosion resistance, making it suitable for harsh environments such as coastal areas and industrial zones.
- Lithium Iron Phosphate Battery:
Utilizes an automotive-grade lithium iron phosphate energy storage system with high energy density and long cycle life. The 3.2V low-voltage platform ensures safety, eliminating the risk of fire or explosion. Built-in BMS intelligent protection monitors battery status in real time, preventing overcharging, over-discharging, and overheating.
- CREE LED Light Source:
Employs original CREE LED chips, achieving a luminous efficacy of up to 110lm/W and a color rendering index Ra≥70. Combined with a PC material secondary optical lens, it provides uniform light distribution, eliminates glare, and achieves a road surface illumination uniformity of over 0.7.
- PC Outdoor Optical Lens:
Features a high-transmittance PC material lens that resists UV aging and does not yellow over long-term use. Professional light distribution design with a batwing-shaped light spot effectively illuminates the road while reducing light pollution.
- Pole Bracket:
Standard 60mm diameter pole connector, compatible with common poles on the market. Adjustable angle design allows adjustment of the lamp’s beam angle according to road width, ensuring optimal lighting effect.
- Intelligent Lighting Control: Time-based power management
0:00-4:00 Full power operation to ensure lighting needs during peak nighttime traffic.
4:00-6:00 Intelligent power reduction of 50-70% operation to balance lighting and battery life.
Automatic light control switch: lights on at dusk and off at dawn, no manual intervention required.
- Advantages of Intelligent Power Control:
Extended lighting time, ensuring uninterrupted lighting throughout the night.
Optimized battery charge/discharge cycle, extending battery life.
Automatic adjustment according to season, extending full power hours in winter.
- Application Scenarios:

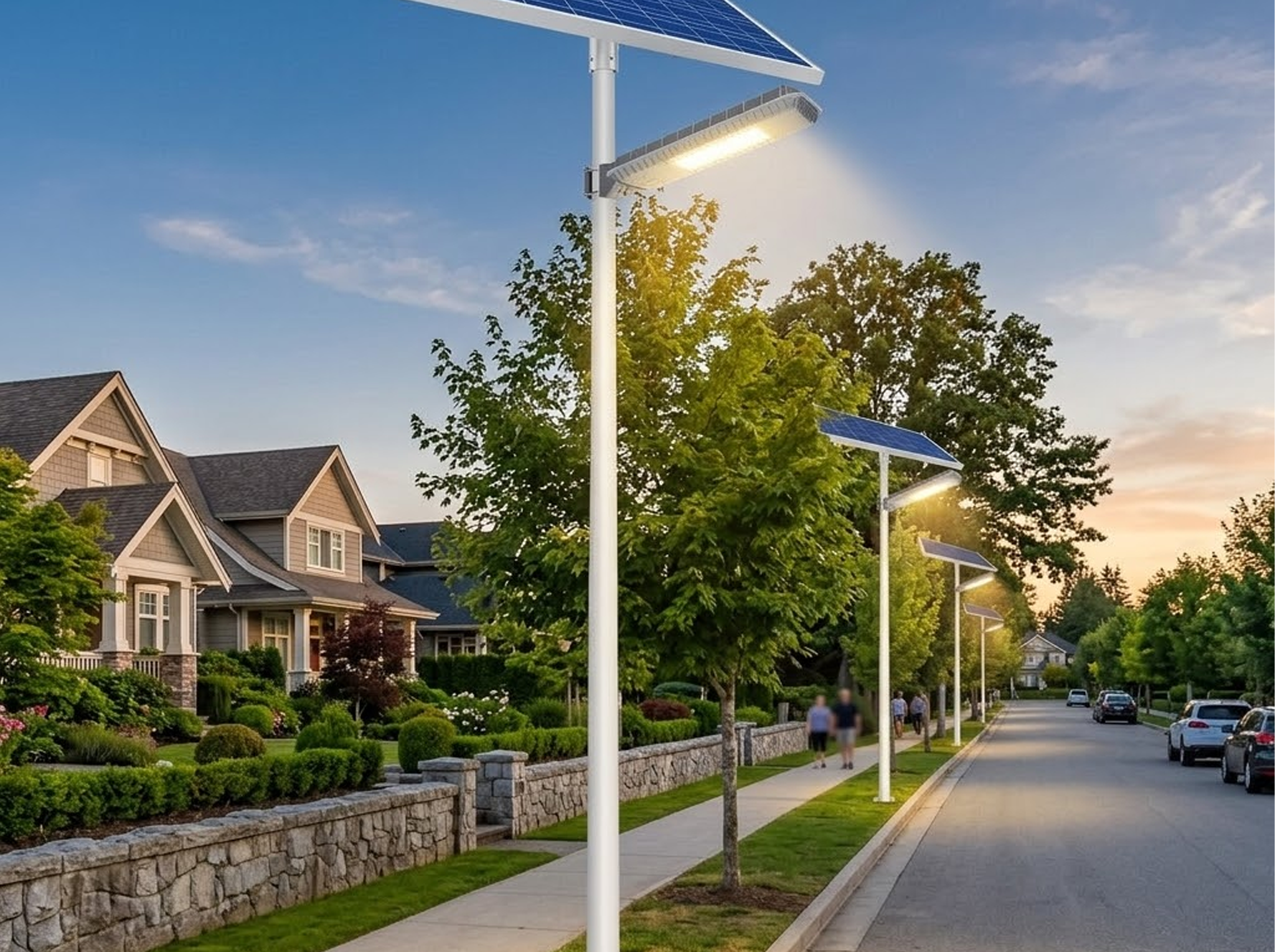

1.Urban road lighting: 7-8 meter poles equipped with 70W lamps, arranged on both sides at 35-45 meter intervals, achieving an average road surface illuminance of 20 lux, meeting the CJJ45 urban road lighting standard.
2.Highway Lighting: 10-12 meter poles equipped with 120W luminaires, spaced 40-50 meter apart, single or double-sided arrangement, providing continuous and uniform driving illumination.

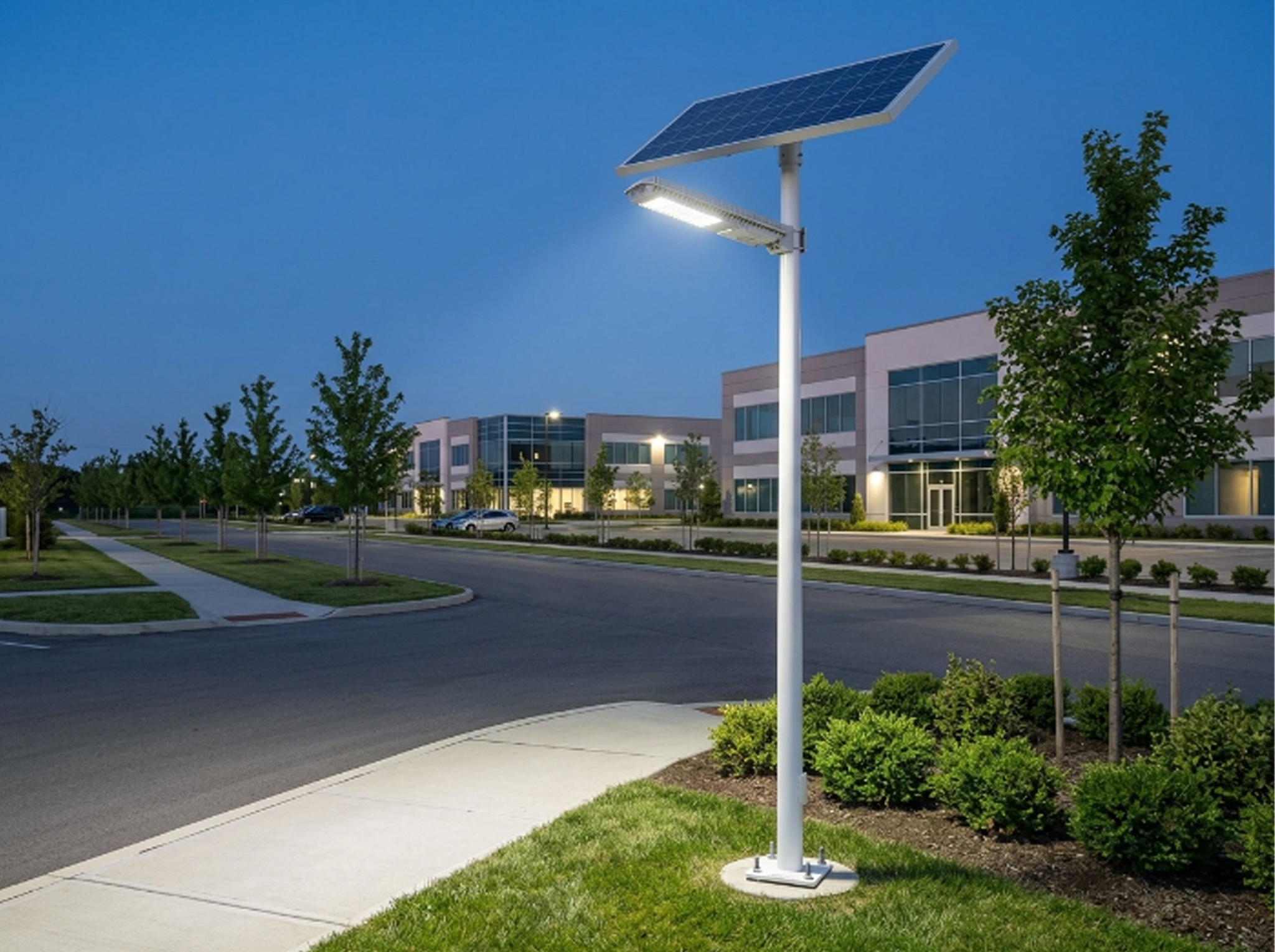

3.Industrial Area Roads: 8-10 meter poles equipped with 80W luminaires, covering main roads and logistics channels in factory areas, ensuring safe nighttime transportation operations.

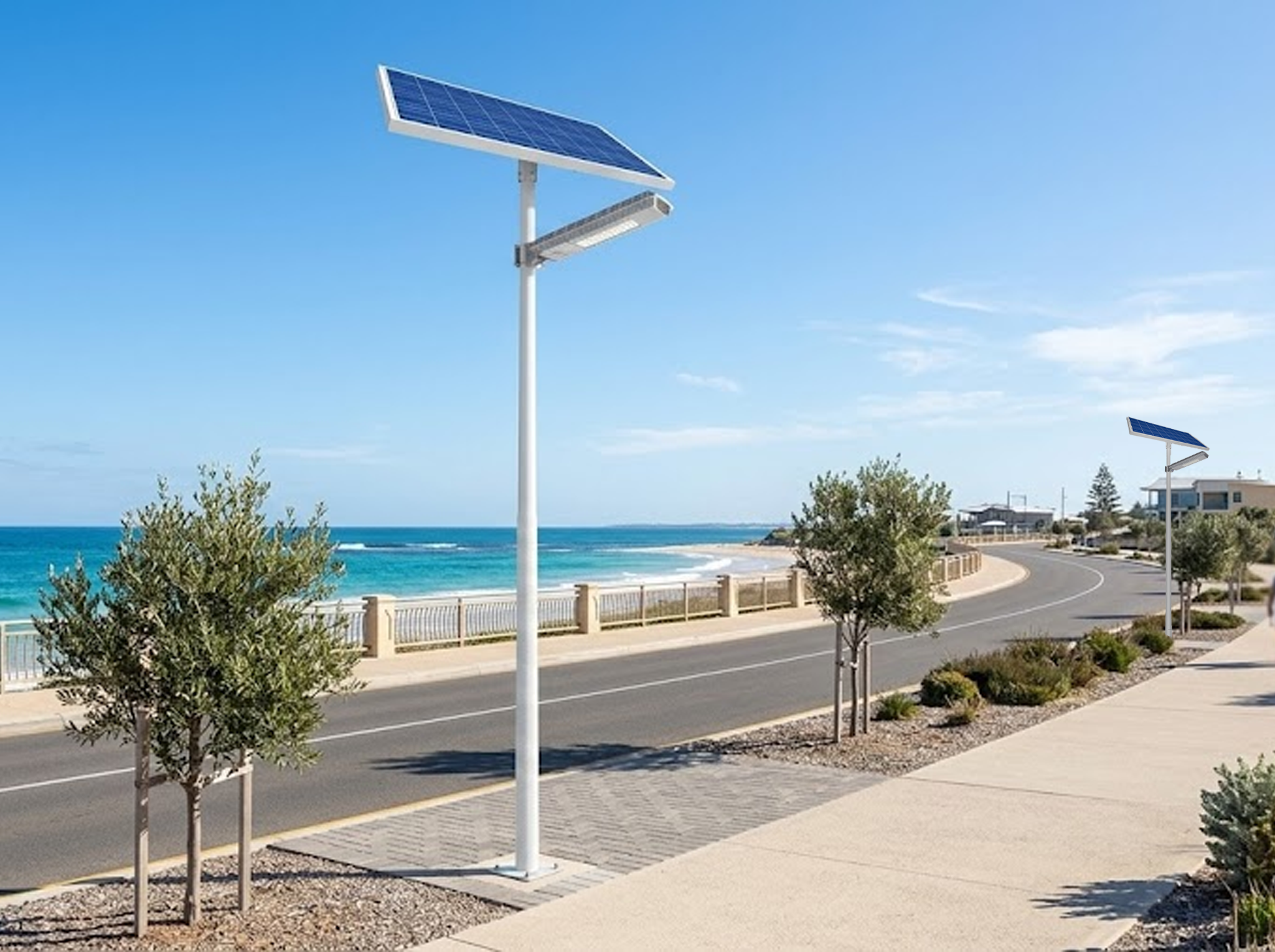

4.Port and Dock Lighting: Aluminum-magnesium alloy material resistant to salt spray corrosion, suitable for road lighting in coastal ports and dockyards.
Installation Guide:
Step 1: Pole Preparation Select high-quality steel poles with a diameter of 60mm and a wall thickness of 3mm or more. The height should be 7-12 meters depending on the configuration. Pour C25 concrete for the foundation, pre-embed anchor bolts, and cure for 72 hours.
Step 2: Luminaire Fixture Fixture Fixture: Fix the Solar Blue Fire Light to the top of the pole and secure it with stainless steel clamps. Adjust the lamp angle so that the light source faces the center line of the road, with an angle of 5-15 degrees.
Step 3: Angle Adjustment Adjust the lamp installation angle according to the road width. Single-lane road lights are tilted 5 degrees to the side of the road, two-lane roads 10 degrees, and three-lane and above 15 degrees to ensure light coverage of the entire road surface.
Step 4: System Activation
Remove the protective film from the solar panels. For first-time use, charge in sunlight for 6-8 hours. Automatic light activation at night indicates the system is functioning normally. The first 3 days are the battery activation period, gradually reaching optimal battery life.
Frequently Asked Questions (FAQ)
Q: Why use 5V low-voltage solar panels instead of 18V?
A: The 5V low-voltage system directly charges the 3.2V lithium iron phosphate battery, eliminating the need for complex DC-DC conversion, improving charging efficiency by 15%, making the system simpler, more reliable, and with a lower failure rate.
Q: Will intelligent power control affect the lighting effect?
A: No. Full power operation for the first 4 hours covers peak nighttime traffic. In subsequent periods, as traffic volume decreases, appropriately reducing brightness provides basic lighting while ensuring all-night battery life. Actual tests show that even after reducing power, the road surface illuminance remains above safety standards.
Q: What are the advantages of aluminum-magnesium alloy lamp bodies?
A: Aluminum-magnesium alloy has only 2/3 the density of aluminum alloy, significantly reducing the weight of the lamp body, lowering the load on the lamp post, and reducing transportation costs. It also has higher strength and better wind resistance, making it particularly suitable for typhoon-prone areas.
Q: What does ±5Ah battery capacity label mean?
A: It indicates that the battery capacity is allowed to fluctuate within a 5Ah range, which is the industry standard for lithium iron phosphate batteries. The actual capacity is always above the nominal value, ensuring that the battery life meets the standard.
